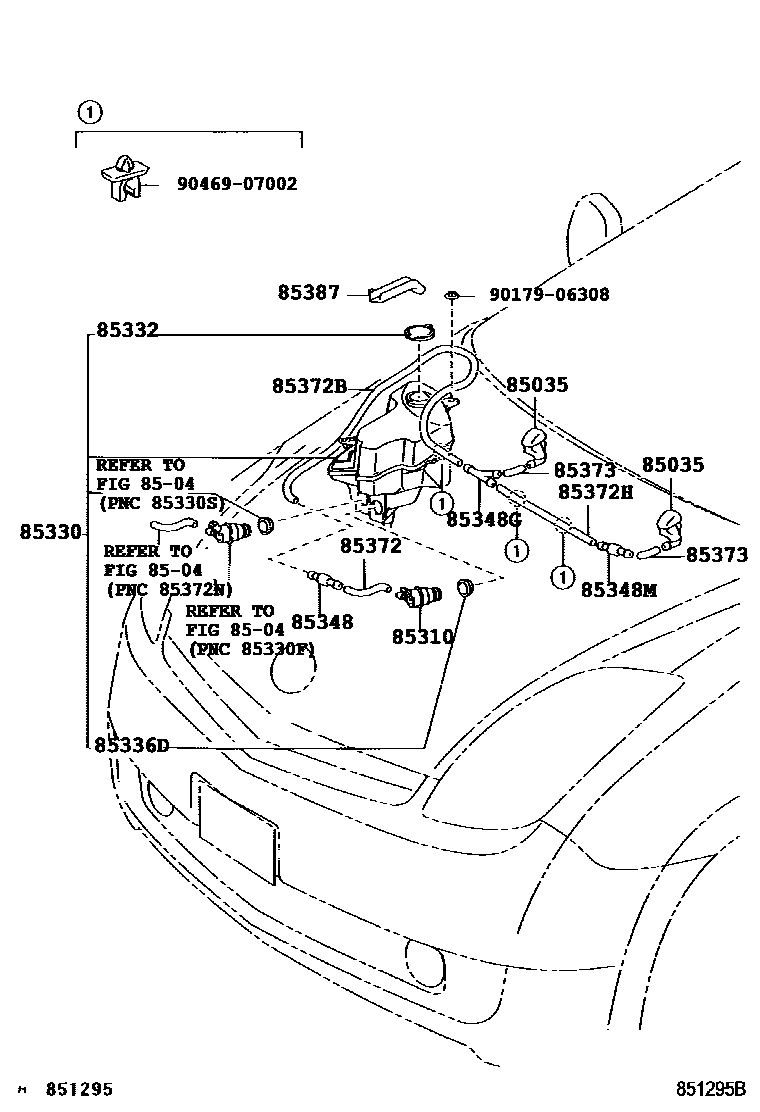

Toyota PRIUS — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-47040i200308-200801

main85381-47070i200802

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i200308-201112

85330JAR ASSY, WINDSHIELD WASHER

main85315-47040i200308-200511

main85315-47060i200511

85332CAP, WINDSHIELD WASHER JAR

main85316-12221i200308-200511

85336DPACKING, WINDSHIELD WASHER JAR

main85336-60300i200308-200511

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200308-200511

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250i200308-200511

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i200308-200511

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i200308-200511

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i200308-200409

main90446-07001i200409-200511

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i200308-200511

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i200308-200511

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-13160i200308-200511

9017906308

main90179-06308

9046907002

main90469-07002

16 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota PRIUS

This section contains 16 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PRIUS. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, CAP, WINDSHIELD WASHER JAR.
