Toyota PRIUS — WINDSHIELD WASHER

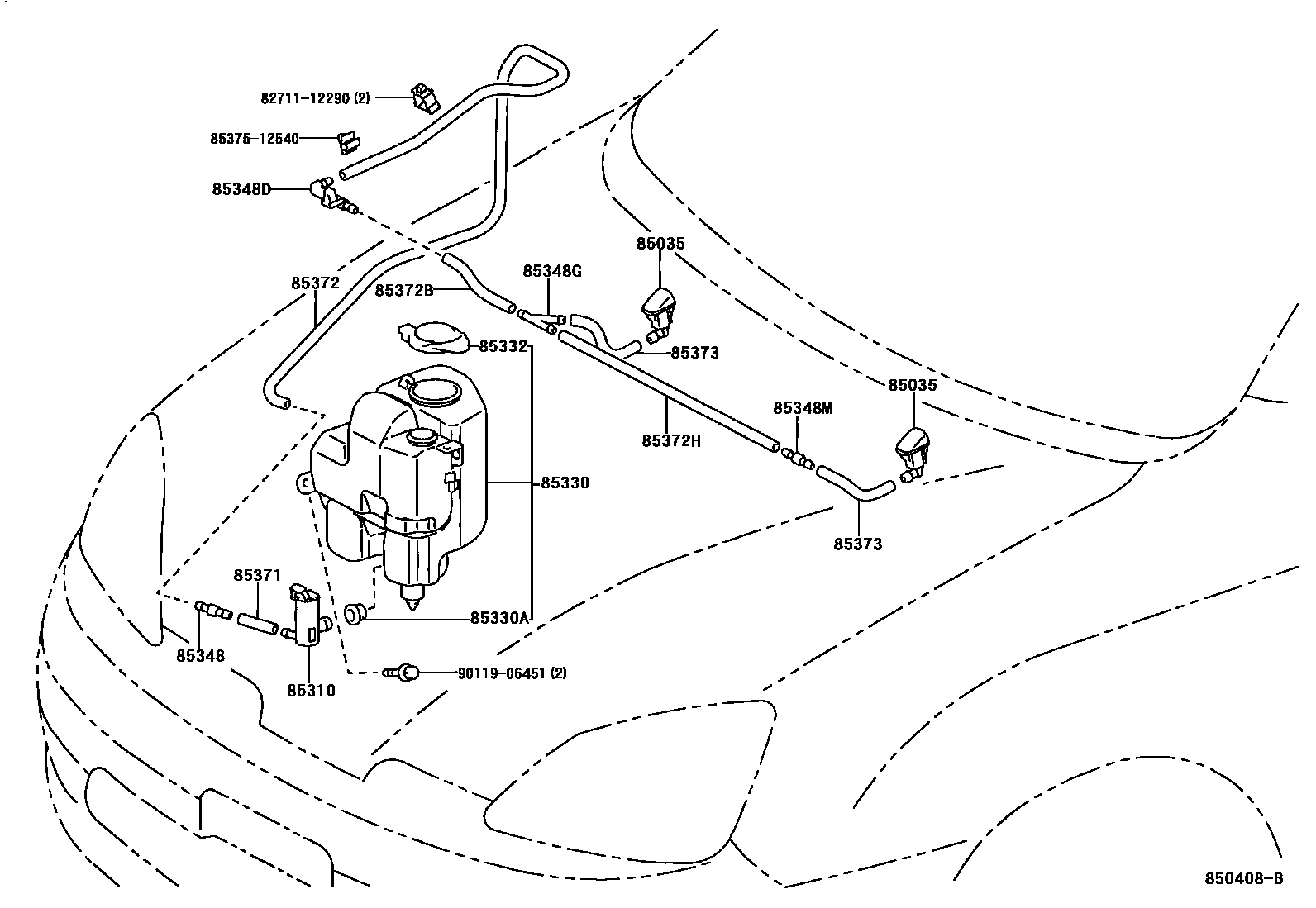

Parts diagram

85035NOZZLE SUB-ASSY, WASHER

main85381-47010i200005

main85385-47010i199712-200005

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280i199712

85330JAR ASSY, WINDSHIELD WASHER

main85315-47010i199712-200005

main85315-47030i200005

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199712

85332CAP, WINDSHIELD WASHER JAR

main85316-20300i199712-200005

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i199712

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-16160i200005

main85378-12480i199712-200005

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250i199712-200005

main85378-60350i200005

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i199712

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i199712-200005

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i200005

main90446-07001i199712-200005

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i199712-200005

main90446-07001i200005

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i200005

main90446-07004i199712-200005

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i199712

8271112290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12290

8537512540HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-12540

9011906451

main90119-06451

17 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota PRIUS

This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PRIUS. Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, CAP, WASHER, INLET, JAR ASSY, WINDSHIELD WASHER.
