Toyota PRIUS — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1������-� 0003 1������-� 0004 1������������ 0005 1������������ 0006 1��� 0007 1�������� & �����-��� ���� 0008 1���,�-�,��� & ����-��

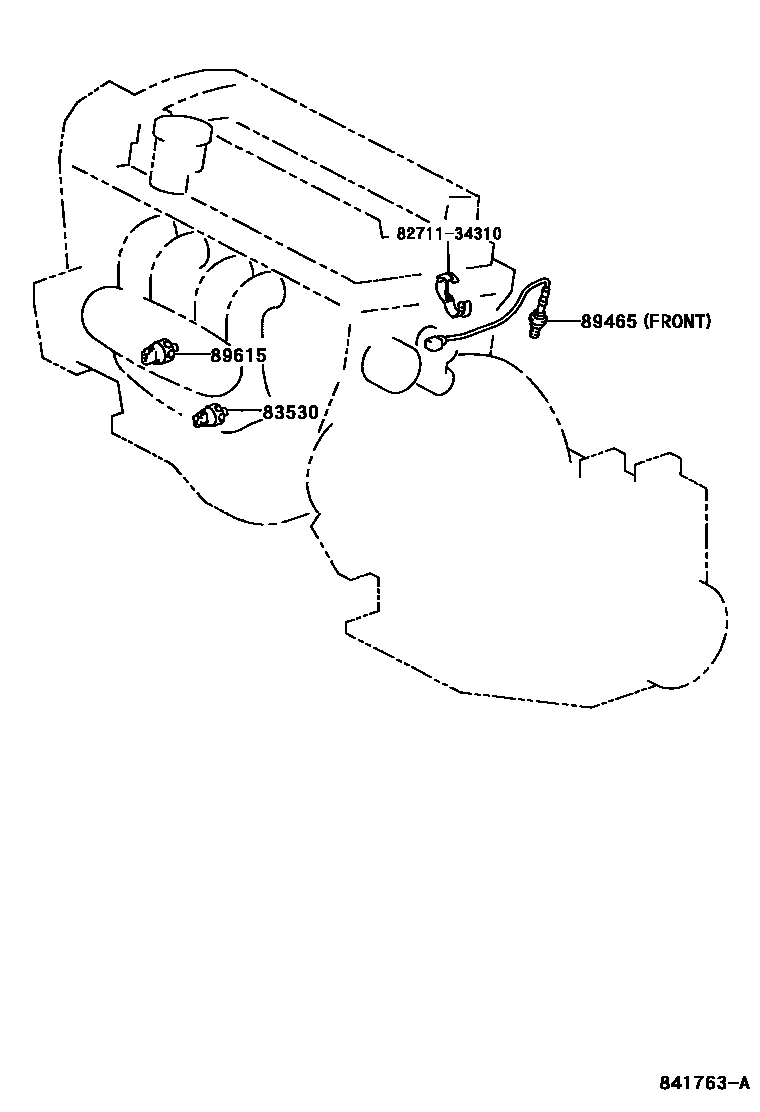

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNHW1#199803

main83530-30090iNHW10199712-199803

main83530-60020iNHW1#199803

89465SENSOR, OXYGEN

main89465-47010iNHW10199712-200005

main89465-47020iNHW10199712-200005

main89465-47030iNHW11200005

main89465-47040iNHW11200005

89615SENSOR, KNOCK CONTROL

main89615-22030iNHW10199712-200005

main89615-52010iNHW11200005-200007

main89615-52030iNHW11200005

main89615-52040iNHW11200005

8271134310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34310

4 parts on this diagram · 8 diagrams in section
