Toyota PRIUS — STANDARD TOOL

09110JACK ASSY

main09111-20110i199712

09113HANDLE, JACK

main09113-12020i199712

09120BAG, TOOL

main09120-16030i200005

09130PLIERS

main99913-11500i200005

09135DRIVER, SCREW

main99915-10700i200005

09141SPANNER

main99914-10810i200005

main99914-11214i200005

09150WRENCH, HUB NUT BOX

main09150-40010i199712

09184STOPPER, WHEEL

main09184-00010i200005

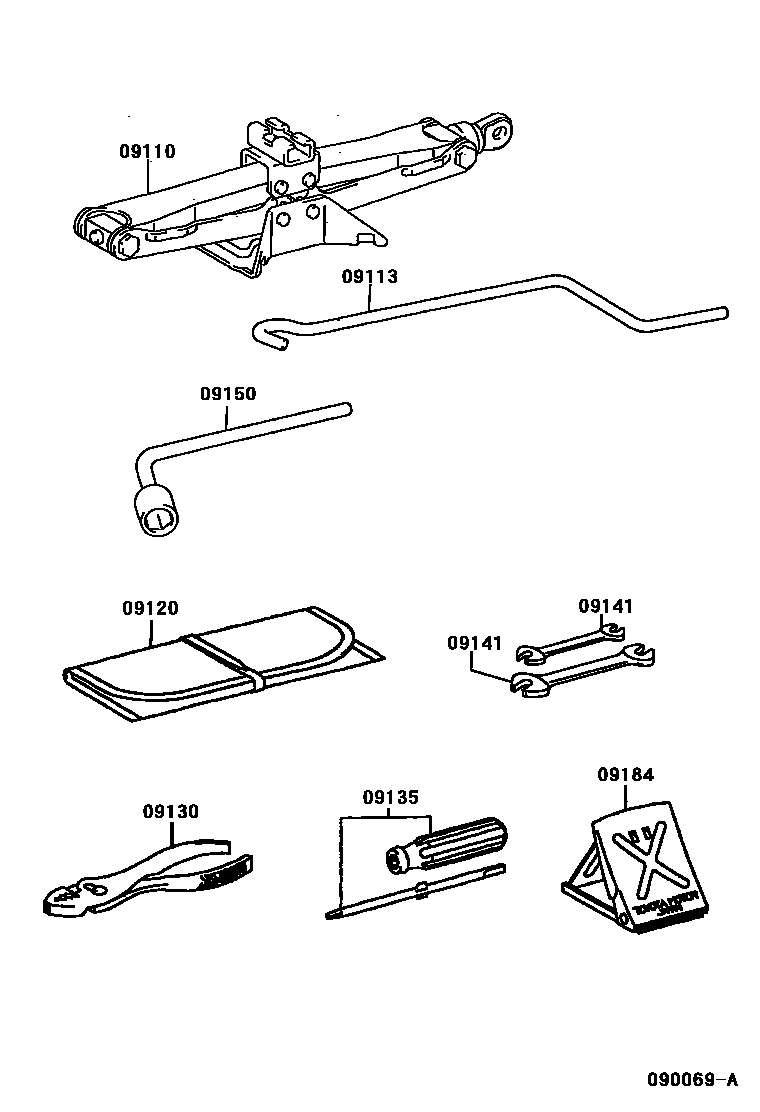

8 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota PRIUS

This section contains 8 genuine Toyota parts for the STANDARD TOOL system of the Toyota PRIUS. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, PLIERS, DRIVER, SCREW.
