Toyota PRIUS — SIDE MOULDING

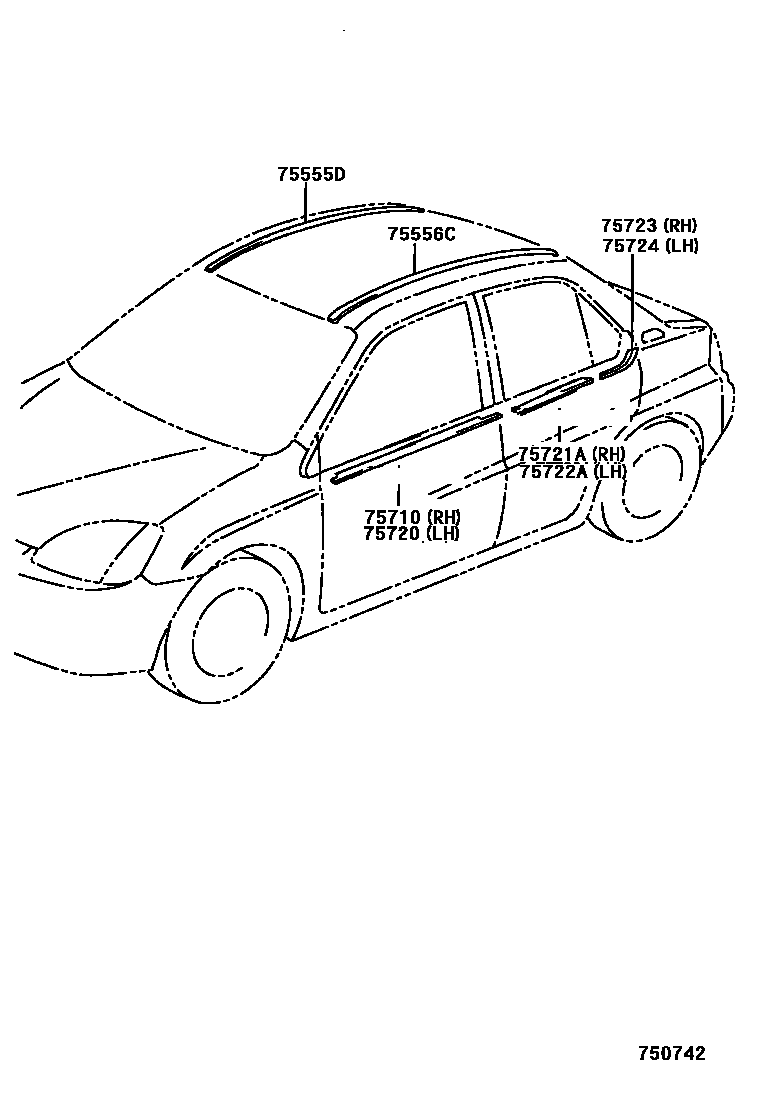

Parts diagram

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-47010i199712

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-47010i199712

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75711-47010i199712-200005

main75711-47020i200005

main75711-47030i200005

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75712-47010i199712-200005

main75712-47020i200005

main75712-47030i200005

75721AMOULDING, REAR DOOR BELT, RH

main75721-47010i199712-200005

main75721-47020i200005

main75721-47030i200005

75722AMOULDING, REAR DOOR BELT, LH

main75722-47010i199712-200005

main75722-47020i200005

main75722-47030i200005

75723MOULDING, REAR DOOR BELT, REAR RH

main75723-47010i200005

main75723-47020i200005

75724MOULDING, REAR DOOR BELT, REAR LH

main75724-47010i200005

main75724-47020i200005

8 parts on this diagram · 2 diagrams in section

SIDE MOULDING for Toyota PRIUS

This section contains 8 genuine Toyota parts for the SIDE MOULDING system of the Toyota PRIUS. Key components include: MOULDING, ROOF DRIP SIDE FINISH, CENTER RH, MOULDING, ROOF DRIP SIDE FINISH, CENTER LH, MOULDING ASSY, FRONT DOOR BELT, RH, MOULDING ASSY, FRONT DOOR BELT, LH, MOULDING, REAR DOOR BELT, RH.
