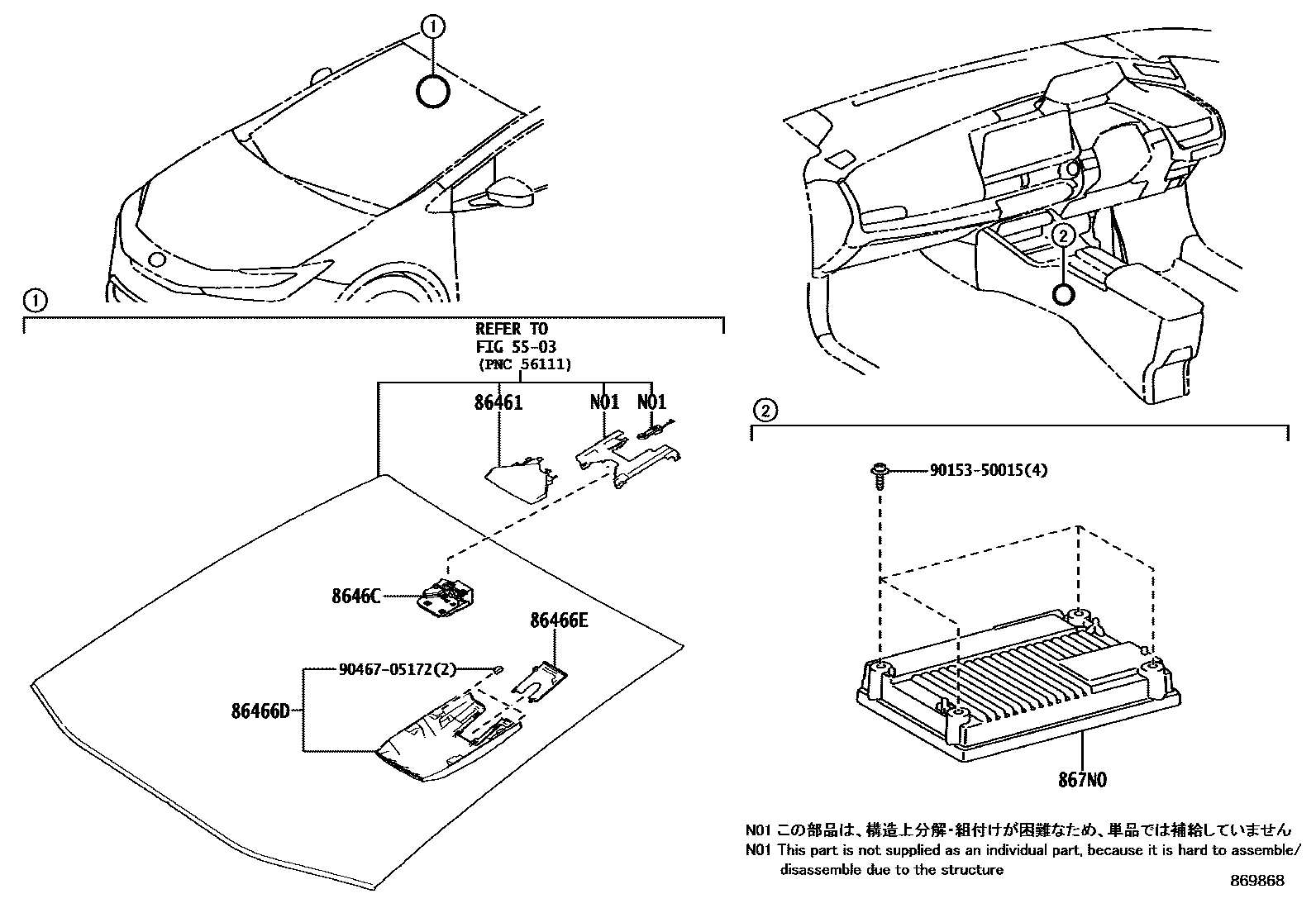

Toyota PRIUS — PRE-COLLISION SYSTEM

5503

86461HOOD, FORWARD RECOGNITION

main86461-47020iMXWH6#,ZVW6#202212

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-47070iMXWH6#,ZVW6#202212

86466ECOVER, FORWARD RECOGNITION, NO.2

main86467-47020supersedes 86467-47010iMXWH6#,ZVW6#..G,U,X202212

8646CCAMERA, FORWARD RECOGNITION

main8646C-47130iMXWH6#,ZVW6#202212-202409

main8646C-47131iMXWH6#,ZVW6#202409-202506

main8646C-47140iMXWH6#..G,Z202212-202409

main8646C-47141iMXWH6#..G,Z202409-202506

867N0COMPUTER ASSY, DRIVE RECORDER

main867N0-47020iMXWH6#..Z202212-202507

9015350015

main90153-50015

9046705172

main90467-05172

8 parts on this diagram · 1 diagram in section
