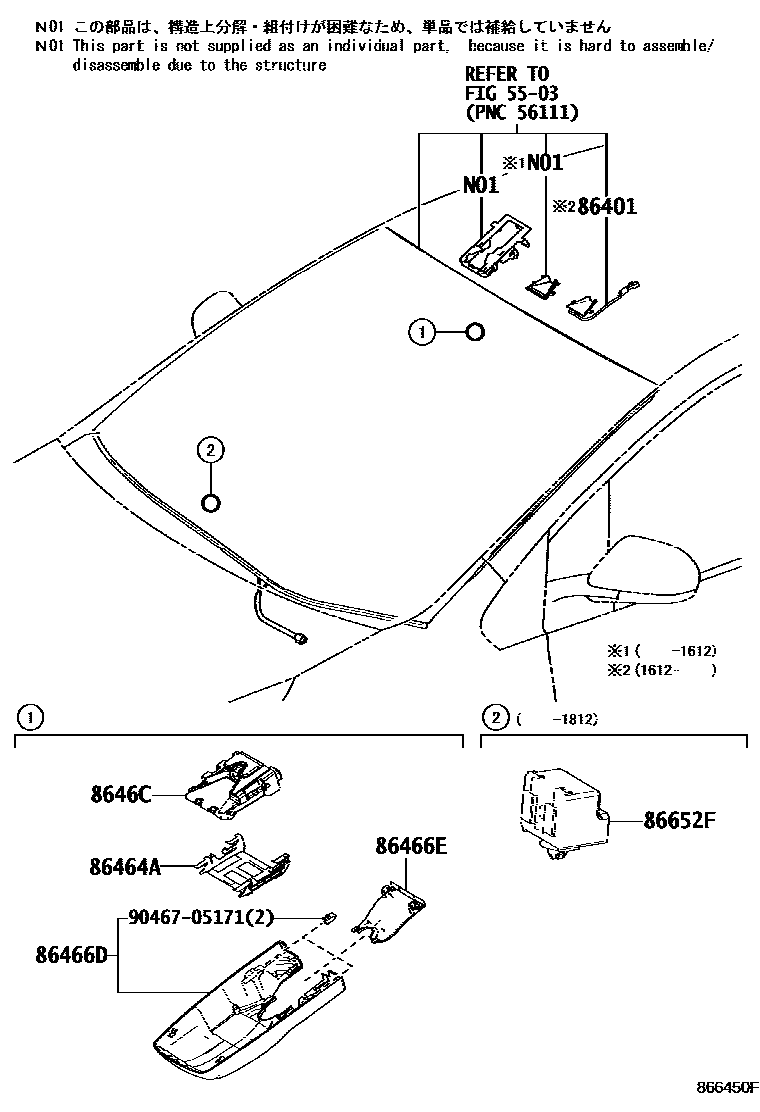

Toyota PRIUS — PRE-COLLISION SYSTEM

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-47010iZVW51,55..(A,PREM)..CBU201612-201812

main86401-47010iZVW5#..CBU201812-202007

main86401-47040iZVW5#..CBU202007

86464ALATCH, FORWARD RECOGNITION

main86464-26010iZVW5#..CBU202007

main86464-48011iZVW5#..CBU201812-202007

main86464-48011iZVW51,55..(A,PREM)..CBU201511-201812

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-47020iZVW51,55..(A,PREM)..CBU201511-201612

main86466-47021iZVW51,55..(A,PREM)..CBU201612-201812

main86466-47021iZVW5#..CBU201812

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-47030iZVW5#..CBU201812

main86466-47030iZVW51,55..(A,PREM)..CBU201511-201812

8646CCAMERA, FORWARD RECOGNITION

main8646C-47010iZVW51,55..(A,PREM)..CBU201511-201608

main8646C-47030iZVW51,55..(A,PREM)..CBU201608-201612

main8646C-47031iZVW51,55..(A,PREM)..CBU201612-201711

main8646C-47032iZVW51,55..(A,PREM)..CBU201711-201812

main8646C-47033iZVW5#..CBU201812-202007

main8646C-47060iZVW5#..CBU202007-202106

main8646C-47070iZVW5#..CBU202106-202111

main8646C-47120iZVW5#..CBU202111

86652FBUZZER, SKID CONTROL

main86652-50010iZVW51,55..(A,PREM)..CBU201511-201812

9046705171

main90467-05171

8 parts on this diagram · 1 diagram in section
