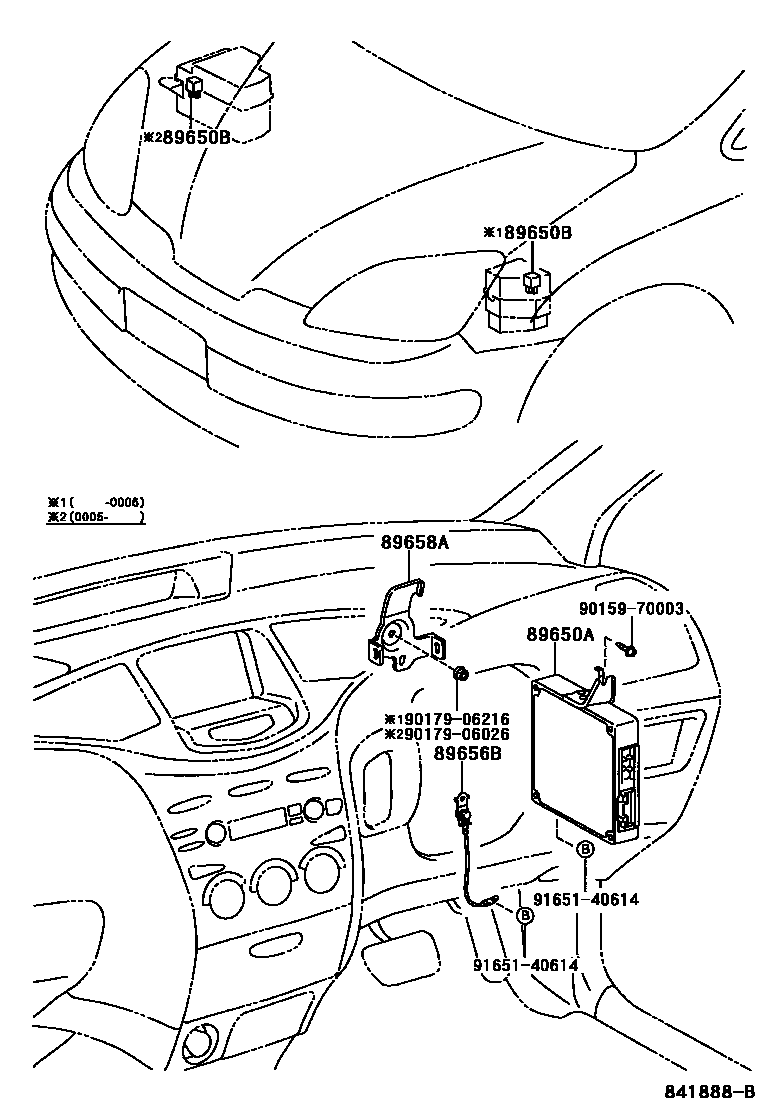

Toyota PRIUS — POWER STEERING COMPUTER

89650ACOMPUTER ASSY, POWER STEERING

main89650-47010iNHW10199712-199905

sub89650-47012

main89650-47011iNHW10199905-200005

sub89650-47012

main89650-47020iNHW11200005-200009

main89650-47021iNHW11200009-200109

main89650-47022iNHW11200109-200302

main89650-47023iNHW11200302

sub89650-47160

89650BRELAY, POWER STEERING

main90987-02006iNHW10199712-200005

main90987-02016iNHW11200005

sub90987-02025

89656BWIRE, POWER STEERING EARTH

main89656-47010iNHW1#199712

89658ABRACKET, POWER STEERING COMPUTER

main89658-47010iNHW1#199712

9015970003

main90159-70003

9017906026

main90179-06026

9017906216

main90179-06216

9165140614

main91651-40614

8 parts on this diagram · 1 diagram in section
