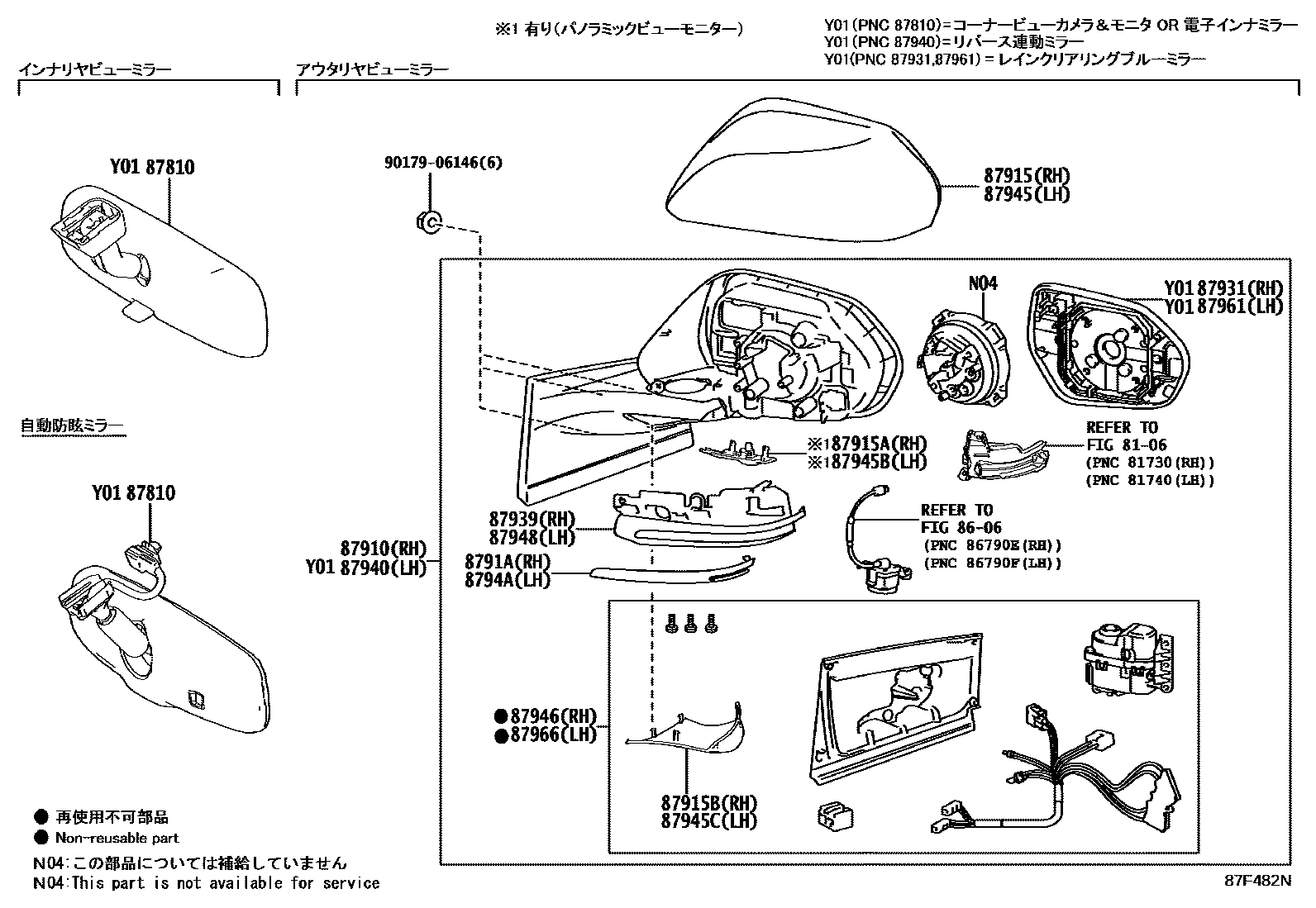

Toyota PRIUS — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8606CAMERA & REAR MONITOR DISPLAY
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
GRAY ME.,1G3
BLACKISH AGEHA GF.,221
PRECIOUS BLACK,219 ,2XC ,2XD
EMOTIONAL RED 2,3U5
STEEL BLONDE ME.,4X1
BLUE ME.,8X7
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
EMOTIONAL RED,2PG ,3T7; EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
STEEL BLONDE,4X1
THERMO-TECT LIME GREEN,6W7
DK.BLUE M.M.,8W7
BLUE ME.,8X7
87915ACOVER, OUTER MIRROR, RH
87915BCOVER, OUTER MIRROR, LOWER RH
8791ACOVER, OUTER MIRROR, RH NO.2
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
GRAY ME.,1G3
BLACKISH AGEHA GF.,221
PRECIOUS BLACK,219 ,2XC ,2XD
EMOTIONAL RED 2,3U5
STEEL BLONDE ME.,4X1
BLUE ME.,8X7
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
EMOTIONAL RED,2PG ,3T7; EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
STEEL BLONDE,4X1
THERMO-TECT LIME GREEN,6W7
DK.BLUE M.M.,8W7
BLUE ME.,8X7
87945BCOVER, OUTER MIRROR, LH
87945CCOVER, OUTER MIRROR, LOWER LH
87946RETRACTOR, OUTER MIRROR, RH
87948COVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
9017906146
main90179-06146
20 parts on this diagram · 1 diagram in section
MIRROR for Toyota PRIUS
This section contains 20 genuine Toyota parts for the MIRROR system of the Toyota PRIUS. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
