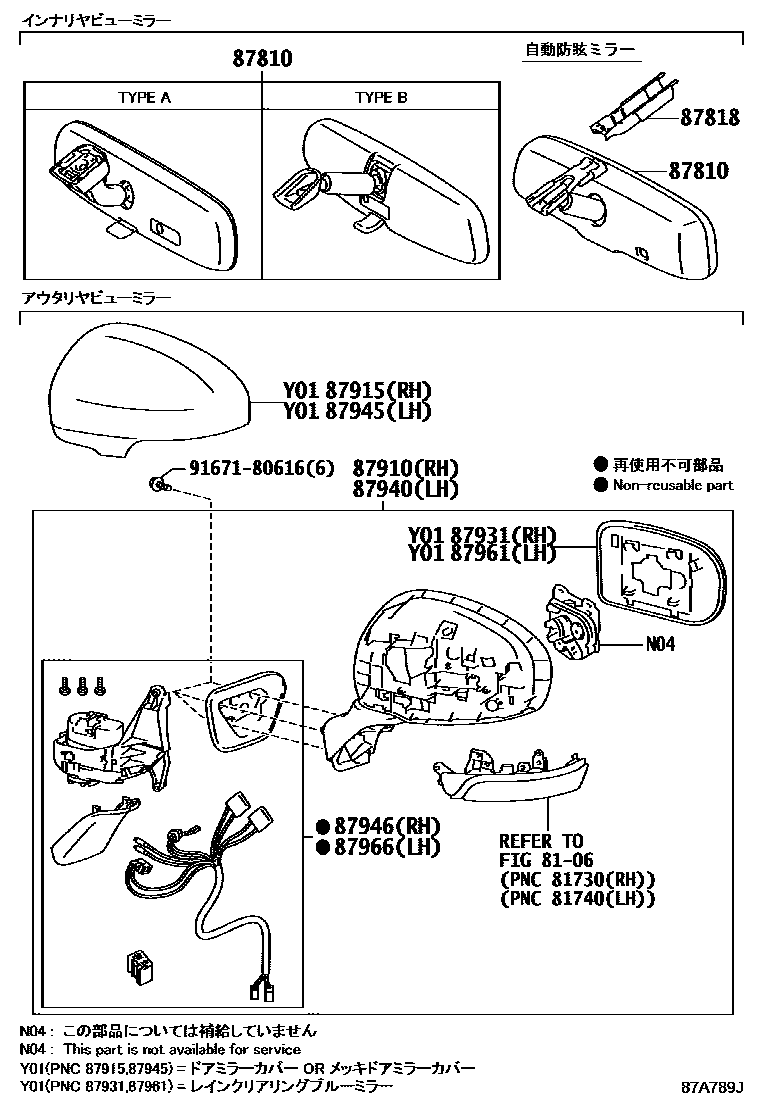

Toyota PRIUS — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87818COVER, INNER RR VIEW MIRROR
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
GRAY ME.,1G2
BLACK,202
RED M.M.,3R3
BORDEAUX M.M,3R9
BRONZE M.M.,4T3
AQUA BLUE ME.,783
FROSTY GREEN MC.,781
DK.BLUE MC.,8T5
ICEBERG SILVER M.M.,8V0
BLUE ME.,8T7
LT.BLUE M.M.,8S7
DEEP AMETHYST M.M.,9AH
DK.VIOLET M.M.,9AF
LT.PURPLE M.M.,9AE
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
GRAY ME.,1G2
BLACK,202
RED M.M.,3R3
BORDEAUX M.M,3R9
BRONZE M.M.,4T3
AQUA BLUE ME.,783
FROSTY GREEN MC.,781
DK.BLUE MC.,8T5
ICEBERG SILVER M.M.,8V0
BLUE ME.,8T7
LT.BLUE M.M.,8S7
DEEP AMETHYST M.M.,9AH
DK.VIOLET M.M.,9AF
LT.PURPLE M.M.,9AE
87946RETRACTOR, OUTER MIRROR, RH
87966RETRACTOR, OUTER MIRROR, LH
9167180616
main91671-80616
12 parts on this diagram · 1 diagram in section
MIRROR for Toyota PRIUS
This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota PRIUS. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER RR VIEW MIRROR, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
