Toyota PRIUS — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
WHITE PEARL CS.,062
SILVER ME.,1C0
SILVER ME.,1F7
BLACK,202
DK. RED M.M.,3Q3
RED M.M.,3R3
BRONZE M.M.,4S2
JADE GREEN M.M.,6S9
LT.GREEN ME.,6U0
BLUE MC.,8M6
BLUE M.M.,8S2
LT.PURPLISH BLUE M.M.,8K2
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
WHITE PEARL CS.,062
SILVER ME.,1C0
SILVER ME.,1F7
BLACK,202
DK. RED M.M.,3Q3
RED M.M.,3R3
BRONZE M.M.,4S2
JADE GREEN M.M.,6S9
LT.GREEN ME.,6U0
BLUE MC.,8M6
BLUE M.M.,8S2
LT.PURPLISH BLUE M.M.,8K2
87946RETRACTOR, OUTER MIRROR, RH
87966RETRACTOR, OUTER MIRROR, LH
9415180600
main94151-80600

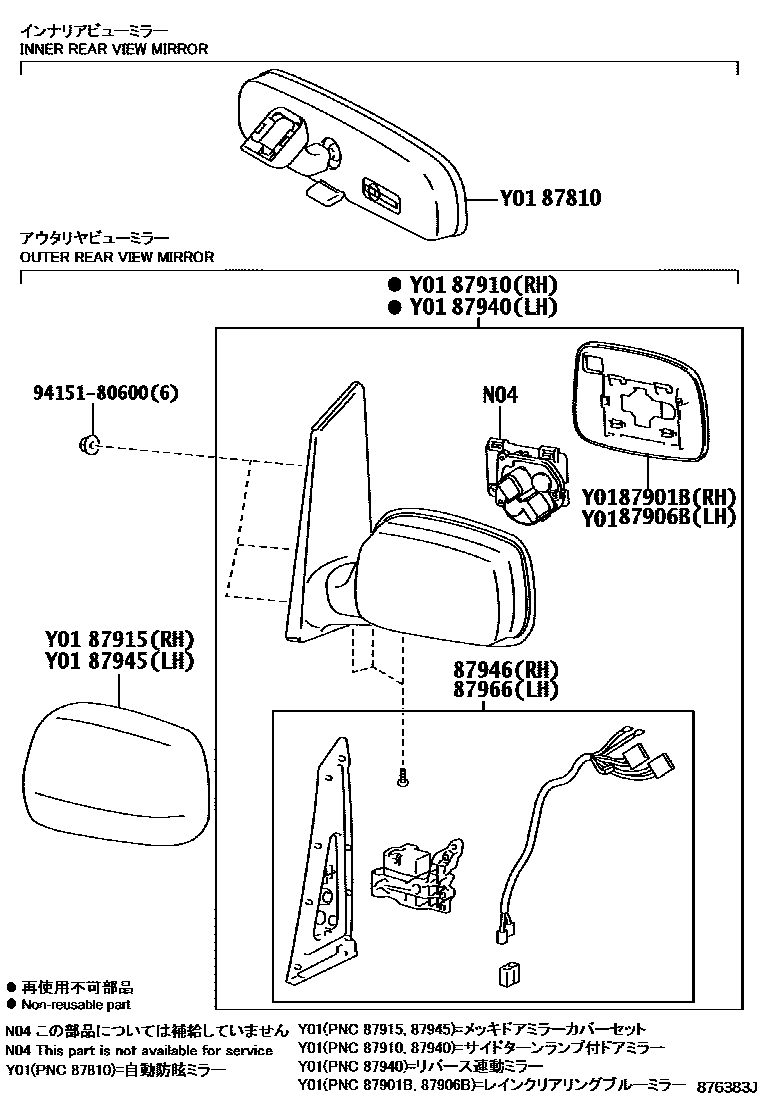

10 parts on this diagram · 1 diagram in section
MIRROR for Toyota PRIUS
This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota PRIUS. Key components include: MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
