Toyota PRIUS — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
MD.CHARCOAL,TRIM9#
LT.AMETHYST,TRIM13,19
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
MD.CHARCOAL,TRIM9#
LT. AMETHYST,TRIM1#,13,19
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SUPER WHITE 2,040
CORAL REEF M.M.,3L6
GREEN M.M.,6P5
LT.AQUA ME.OP.,761
DK.BLUE M.M.,8L2
LT.PURPLE ME.,942
SUPER WHITE 2,040
SILVER ME.GR.,1C5
BORDEAUX MC.,3P2
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
DK.BLUE MC.,8K8
BLUE M.M.,8P5
PREMIUM *(D),SUPER WHITE 2,040
PREMIUM *(D),SILVER ME.GR.,1C5
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
SILVER ME.GR.,1C5
CORAL REEF M.M.,3L6
BORDEAUX MC.,3P2
GREEN M.M,6P5
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
DK.BLUE M.M.,8L2
DK.BLUE MC.,8K8
BLUE M.M.,8P5
LT.PURPLE ME.,942
87940MIRROR ASSY, OUTER REAR VIEW, LH
SUPER WHITE 2,040
CORAL REEF M.M.,3L6
GREEN M.M,6P5
LT.AQUA ME.OP.,761
DK.BLUE M.M.,8L2
LT.PURPLE ME.,942
SUPER WHITE 2,040
SILVER ME.GR.,1C5
BORDEAUX MC.,3P2
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
DK.BLUE MC.,8K8
BLUE M.M.,8P5
PREMIUM *(D),SUPER WHITE 2,040
PREMIUM *(D),BORDEAUX MC.,3P2
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
SILVER ME.GR.,1C5
CORAL REEF M.M.,3L6
PREMIUM 21 *(C),BORDEAUX MC.,3P2
GREEN M.M,6P5
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
DK.BLUE M.M.,8L2
DK.BLUE MC.,8K8
BLUE M.M.,8P5
LT.PURPLE ME.,942
9015460034
main90154-60034
9017906070
main90179-06070
9354015012
main93540-15012

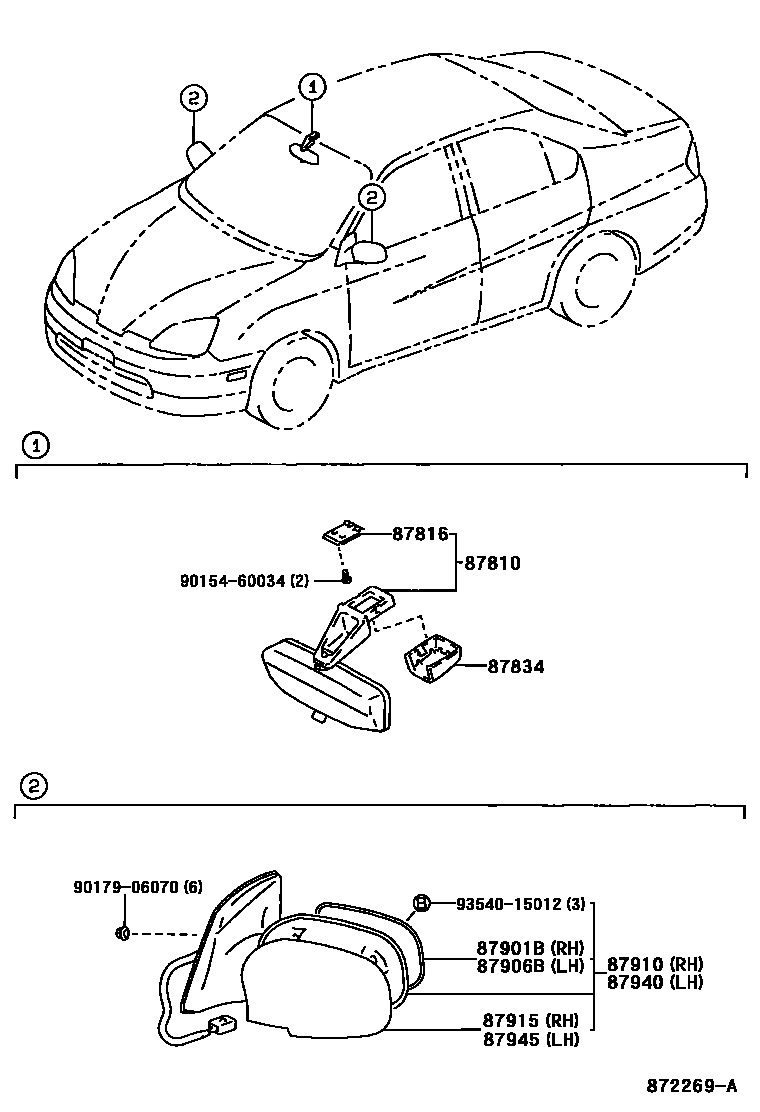

12 parts on this diagram · 1 diagram in section
MIRROR for Toyota PRIUS
This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota PRIUS. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
