Toyota PRIUS — METER

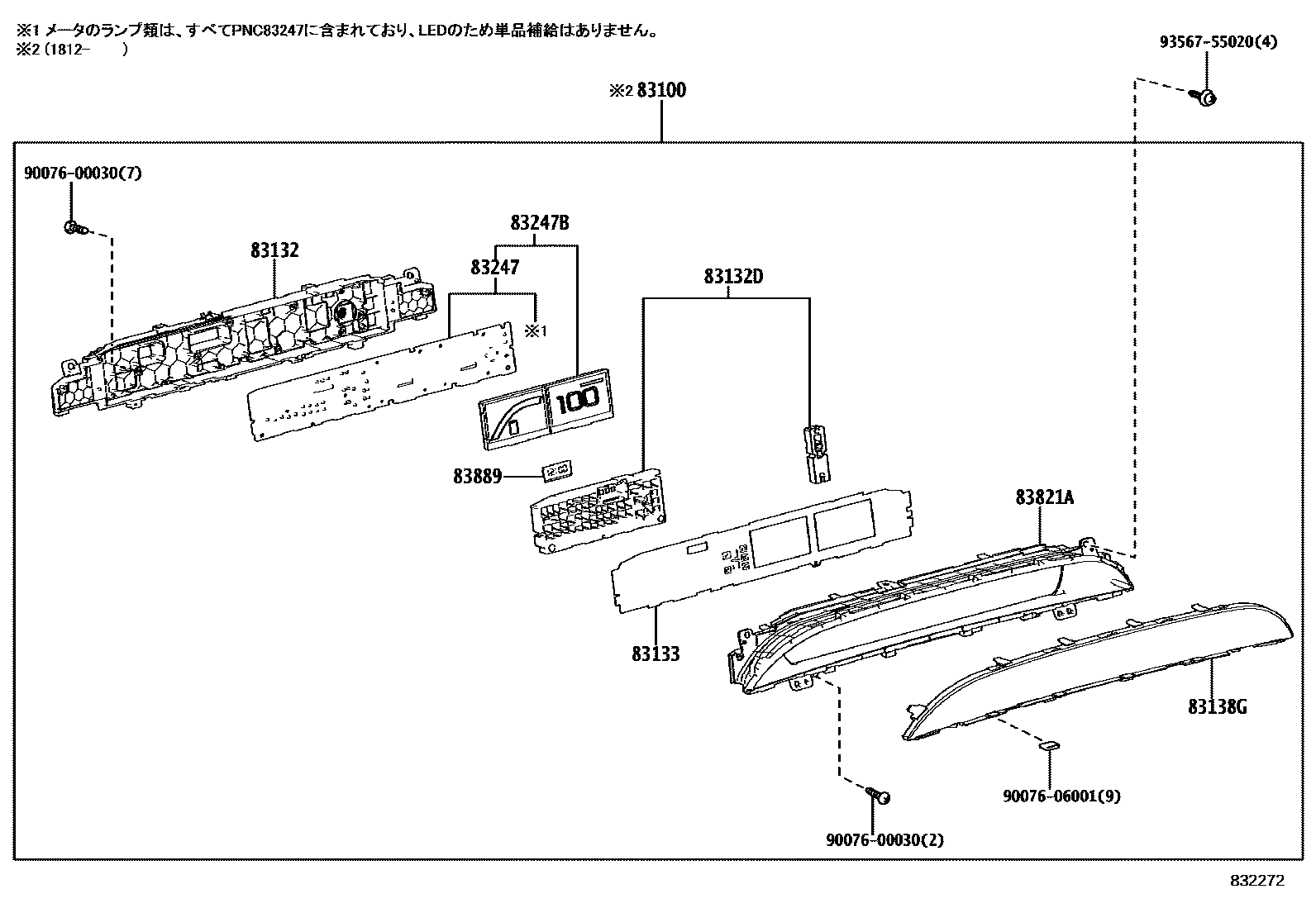

Parts diagram

83100METER ASSY, COMBINATION

main83800-47M20i202106-202110

main83800-47M21i202111

main83800-47M90i201812-201908

main83800-47U10i201812-201908

main83800-47X70i201908-202003

main83800-47X71i202004-202007

main83800-47X80i201908-202003

main83800-47X81i202004-202007

main83800-4E010i202007-202106

main83800-4E020i202007-202106

main83800-4E200i202106-202110

main83800-4E201i202111

83132CASE, COMBINATION METER

main83841-47L00i201511-201812

83132DCASE, COMBINATION METER, NO.2

main83842-47L00i201511-201812

83133PLATE, COMBINATION METER, NO.1

main83811-47L00i201511-201908

main83811-47L70i201711-201908

main83811-47M90i201908-202007

main83811-4E010i202007

83138GGLASS, COMBINATION METER

main83852-47L00i201511-201711

main83852-47L70i201711-201812

83247PLATE, METER CIRCUIT

main83861-47540i201608-201711

main83861-47550i201608-201711

main83861-47L00i201511-201603

main83861-47L01i201603-201608

main83861-47L10i201511-201603

main83861-47L11i201603-201608

main83861-47L70i201711-201812

main83861-47M20i202106-202110

main83861-47M21i202111

main83861-47M30i201711-201812

main83861-47M90i201812-201908

main83861-47N10i201511-201603

main83861-47N11i201603-201608

main83861-47Q10i201608-201711

main83861-47U10i201812-201908

main83861-47X70i201908-202004

main83861-47X71i202004-202007

main83861-47X80i201908-202004

main83861-47X81i202004-202007

main83861-4E010i202007-202106

main83861-4E020i202007-202106

main83861-4E200i202106-202111

main83861-4E201i202111

83247BPLATE, METER CIRCUIT, NO.2

main83862-47540i201608-201711

main83862-47550i201608-201711

main83862-47L00i201511-201603

main83862-47L01i201603-201608

main83862-47L10i201511-201603

main83862-47L11i201603-201608

main83862-47L70i201711-201812

main83862-47M20i202106-202111

main83862-47M21i202111

main83862-47M30i201711-201812

main83862-47M90i201812-201908

main83862-47N10i201511-201603

main83862-47N11i201603-201608

main83862-47Q10i201608-201711

main83862-47U10i201812-201908

main83862-47X70i201908-202004

main83862-47X71i202004-202007

main83862-47X80i201908-202004

main83862-47X81i202004-202007

main83862-4E010i202007-202106

main83862-4E020i202007-202106

main83862-4E200i202106-202111

main83862-4E201i202111

83821ACOVER, COMBINATION METER, NO.1

main83821-47L00i201511-201812

83889MULTI-DISPLAY, COMBINATION METER

main83889-62010i201511-201812

9007600030

main90076-00030

9007606001

main90076-06001

9356755020

main93567-55020

12 parts on this diagram · 2 diagrams in section

METER for Toyota PRIUS

This section contains 25 genuine Toyota parts for the METER system of the Toyota PRIUS. Key components include: METER ASSY, COMBINATION, CASE, COMBINATION METER, CASE, COMBINATION METER, NO.2, PLATE, COMBINATION METER, NO.1, GLASS, COMBINATION METER.
