Toyota PRIUS — METER

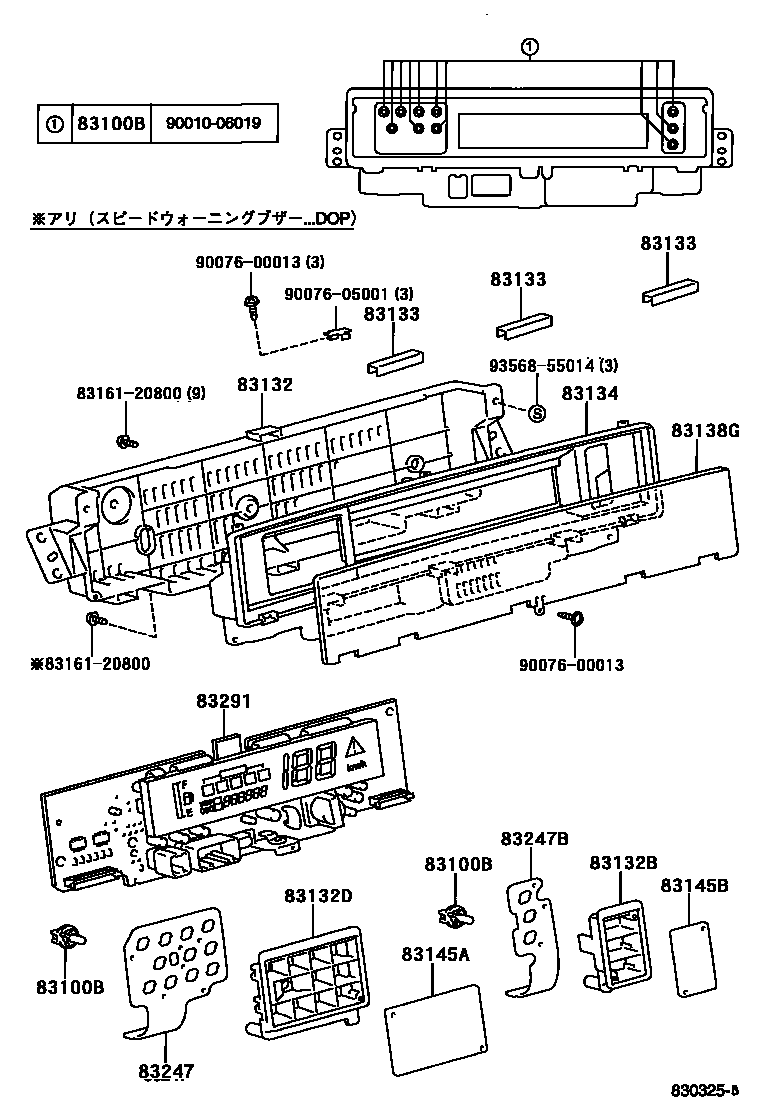

Parts diagram

83100BBULB, COMBINATION METER, NO.1

main90010-06019i199712-200005

83132CASE, COMBINATION METER

main83843-47010i199712

83132BCASE, COMBINATION METER NO.3

main83842-47010i199712-200005

main83842-47020i200005

83132DCASE, COMBINATION METER, NO.2

main83841-47010i199712-200005

main83841-47020i200005

83133PLATE, COMBINATION METER, NO.1

main83811-47010i199712

83134COVER, COMBINATION METER, NO.1

main83821-47010i199712-200005

main83821-47020i200005

83138GGLASS, COMBINATION METER

main83852-47010i199712

83145ALENS, METER, NO.2

main83832-47010i199712-200005

83145BLENS, METER, NO.3

main83833-47010i199712-200005

83247PLATE, METER CIRCUIT

main83861-47010i199712-200005

83247BPLATE, METER CIRCUIT, NO.2

main83862-47010i199712-200005

83291COMPUTER, COMBINATION METER

main83291-47010i199712-200005

main83291-47020i200005

8316120800CASE, COMBINATION METER MIRROR, NO.1

main83161-20800

9007600013

main90076-00013

9007605001

main90076-05001

9356855014

main93568-55014

16 parts on this diagram · 2 diagrams in section

METER for Toyota PRIUS

This section contains 17 genuine Toyota parts for the METER system of the Toyota PRIUS. Key components include: BULB, COMBINATION METER, NO.1, CASE, COMBINATION METER, CASE, COMBINATION METER NO.3, CASE, COMBINATION METER, NO.2, PLATE, COMBINATION METER, NO.1.
