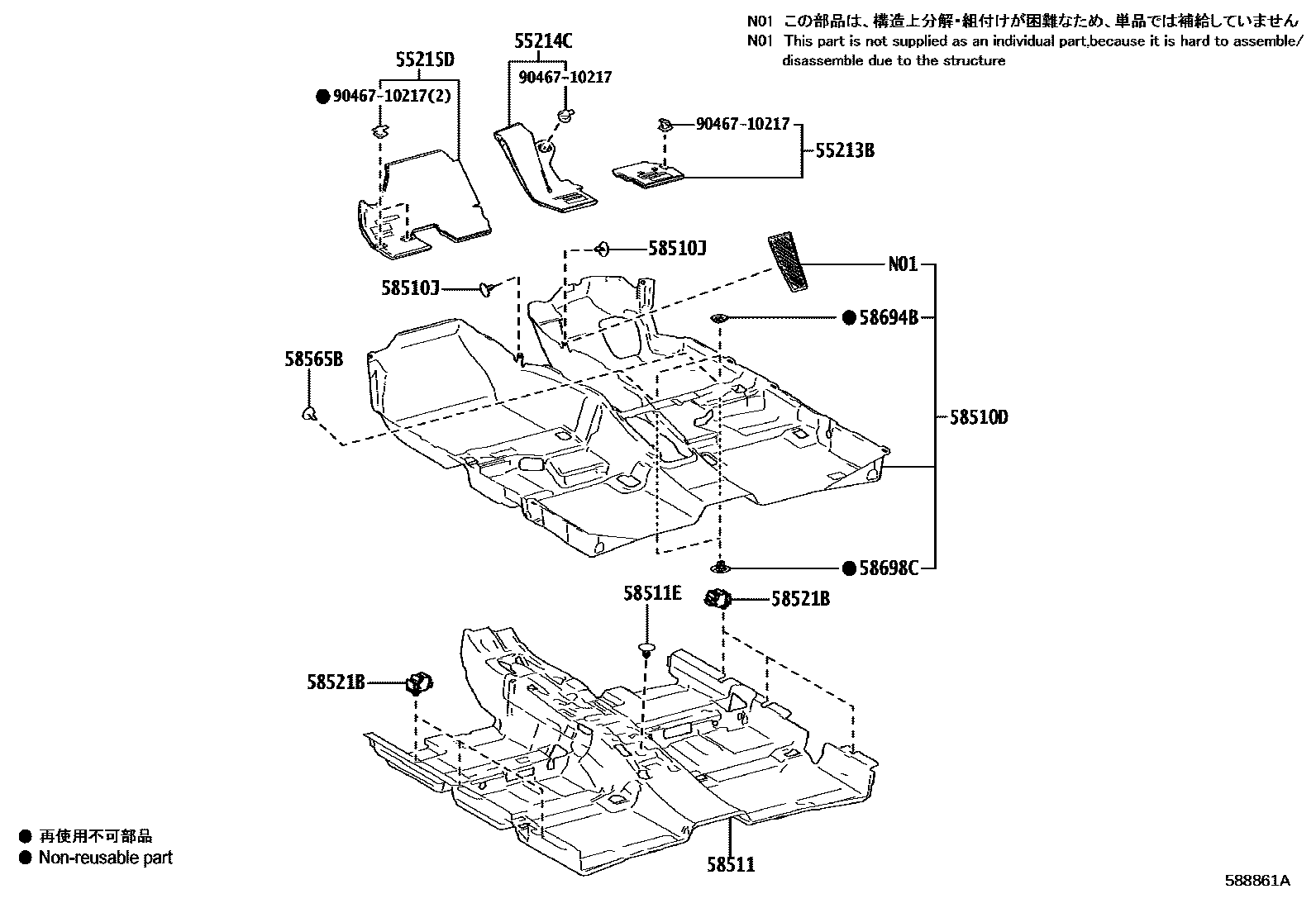

Toyota PRIUS — MAT & CARPET

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-47140i202212

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-47090i202212

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-47090i202212

58510DCARPET ASSY, FLOOR, FRONT

main58510-47660-C0i202212

BLACK,TRIM2#

main58510-47730-C0i202303

BLACK,TRIM2#

58510JCLIP (FOR FLOOR CARPET)

main90467-05164-C7×2i202212

BLACK,TRIM2#

58511MAT, FLOOR, FRONT

main58511-47030supersedes 58511-47020i202212

main58511-47050supersedes 58511-47040i202303

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C4i202212

BLACK

58521BHOOK, FLOOR CARPET

main58521-33060×6i202212

58565BCLIP

main90467-07049-23×2i202212

BLACK,TRIM2#

58694BPLATE, MAT SET, UPPER

main58694-78010×2i202212

58698CPLATE, MAT SET, LOWER

main58698-78010×2i202212

9046710217

main90467-10217

12 parts on this diagram · 5 diagrams in section

MAT & CARPET for Toyota PRIUS

This section contains 14 genuine Toyota parts for the MAT & CARPET system of the Toyota PRIUS. Key components include: PAD, DASH PANEL INSULATOR, NO.1, PAD, DASH PANEL INSULATOR, NO.2, PAD, DASH PANEL INSULATOR, NO.3, CARPET ASSY, FLOOR, FRONT, MAT ASSY, FLOOR.
