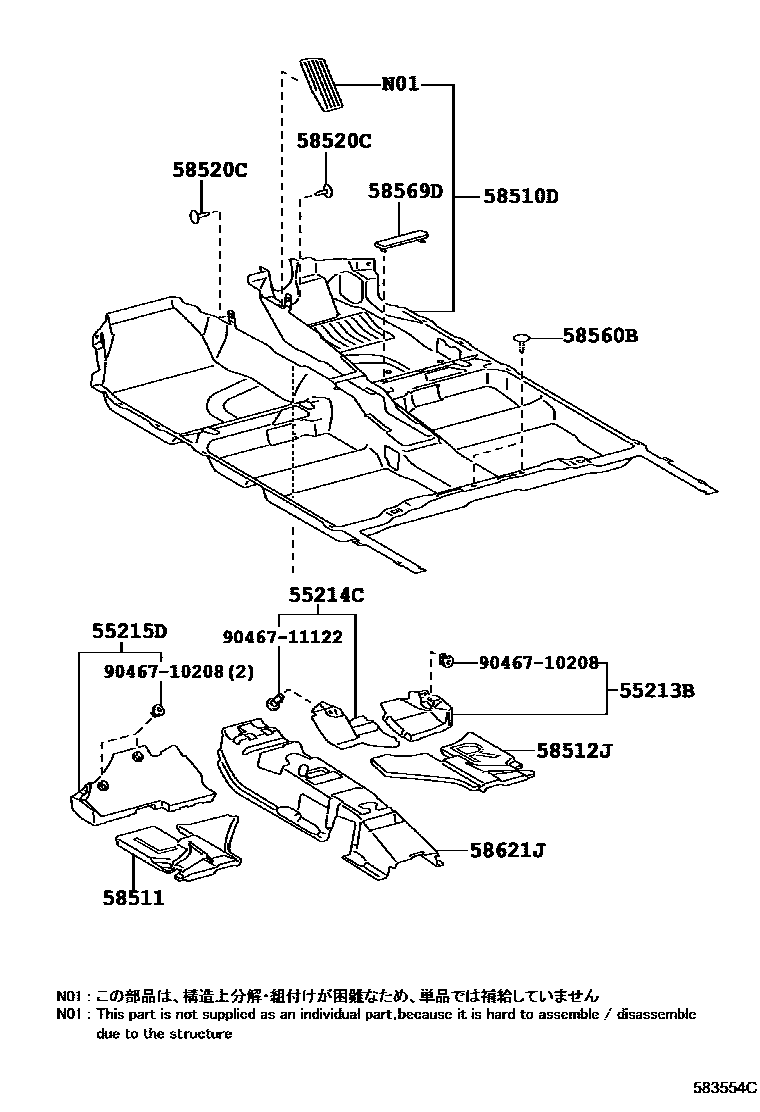

Toyota PRIUS — MAT & CARPET

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-47090i200904-201112

main55213-47110i201112-201112

main55213-47120i201112

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-47040i201112

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-47040i200904-201112

58510DCARPET ASSY, FLOOR, FRONT

main58510-47210-B0i200904-201112

MD.GRAY,TRIM1#

main58510-47210-G0i200904-201112

AQUA,TRIM6#

main58510-47211-B2i201112-201511

DK. GREY,TRIM1#,2#,4#,6#; DK. GREY,TRIM2#,6#

main58510-47280-B0i200904-201112

MD.GRAY,TRIM1#

main58510-47281-B2i201112-201511

DK. GREY,TRIM2#

58511MAT, FLOOR, FRONT

main58511-12620i200904-201112

main58511-12621i201305

58512JMAT, FLOOR, NO.2

main58512-12200i200904-201112

main58512-12201i201305

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B2×2i201112-201511

DK.GRAY

main90467-05164-C0×2i201102-201112

BLACK

58560BCLIP(FOR FLOOR CARPET, REAR)

main90467-07049-B7×2i201112-201511

DK.GRAY

main90467-07049-E5×2i201112-201511

GREGE

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-12010-B2i200904-201112

MD.GRAY,TRIM1#

main58569-12010-C0i201112-201511

BLACK,TRIM1#,2#,4#,6#; BLACK,TRIM2#; BLACK,TRIM2#,6#

main58569-12010-G0i200904-201112

AQUA,TRIM6#

58621JSILENCER, CENTER CONSOLE, NO.1

main58621-47020i200904-201112

9046710208

main90467-10208

9046711122

main90467-11122

12 parts on this diagram · 2 diagrams in section

MAT & CARPET for Toyota PRIUS

This section contains 15 genuine Toyota parts for the MAT & CARPET system of the Toyota PRIUS. Key components include: PAD, DASH PANEL INSULATOR, NO.1, PAD, DASH PANEL INSULATOR, NO.2, PAD, DASH PANEL INSULATOR, NO.3, CARPET ASSY, FLOOR, FRONT, MAT, FLOOR, FRONT.
