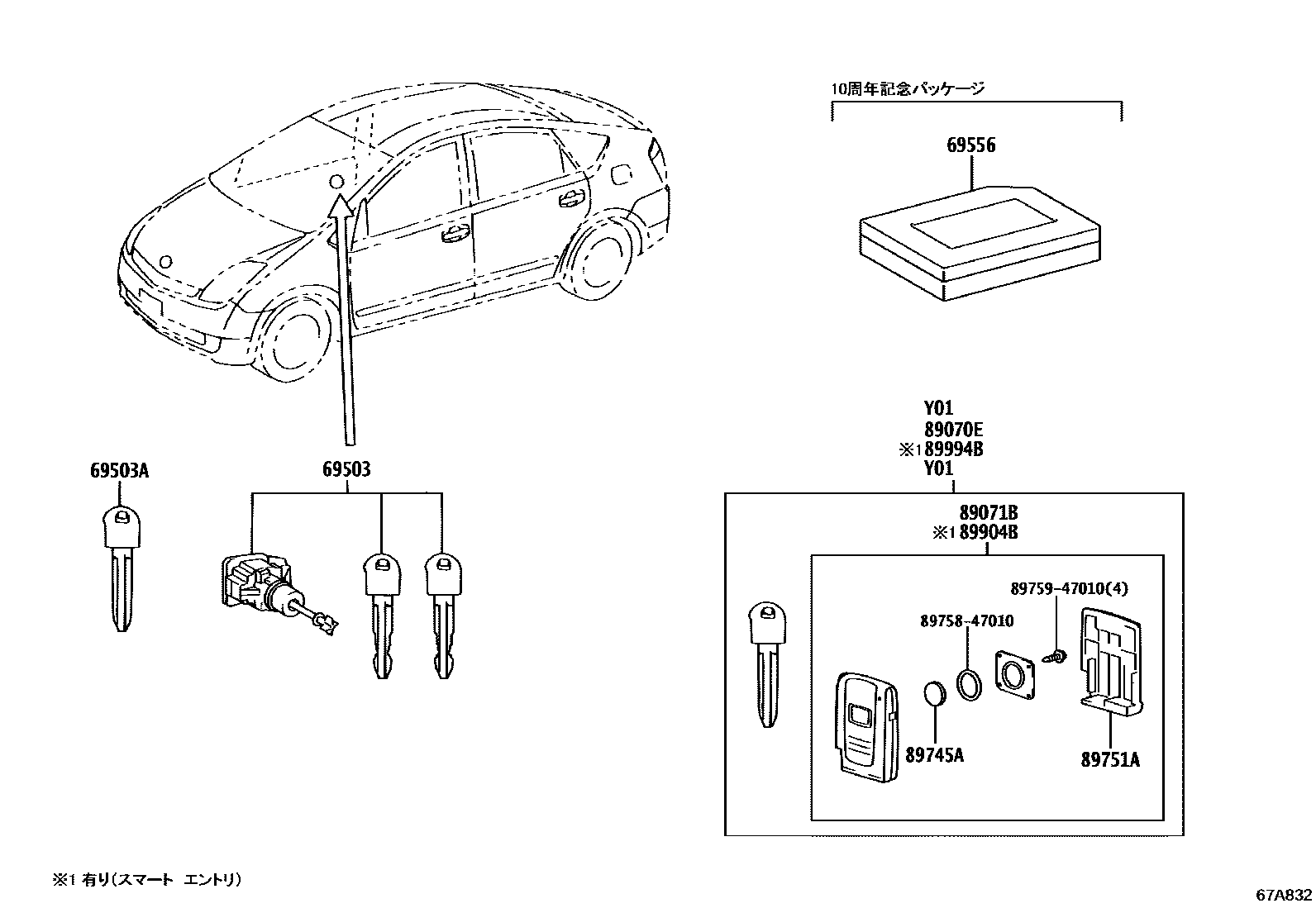

Toyota PRIUS — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-47070i200511

69503AKEY, BLANK

main69515-47010i200511

69556CASE, KEY SET

main69556-47010i200704-200903

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-47170supersedes 89070-47171i200511-200609

main89070-47171i200610

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-47020×2supersedes 89071-47071i200511-200609

main89071-47021×2supersedes 89071-47071i200610-200808

main89071-47071×2i200808

89745ABATTERY, TRANSMITTER

main89745-47010×2supersedes 89745-50020i200511-200903

main89745-50020×2i200911

89751ACOVER, TRANSMITTER HOUSING

main89751-47010×2supersedes 89751-47020i200511-200903

main89751-47020×2i200511

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-47030×2i200308-200511

89994BTRANSMITTER, ELECTRICAL KEY

main89994-47080i200308-200511

8975847010PACKING, DOOR CONTROL TRANSMITTER

main89758-47010

8975947010SCREW, DOOR CONTROL TRANSMITTER

main89759-47010

11 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota PRIUS

This section contains 11 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota PRIUS. Key components include: CYLINDER SET, LOCK, KEY, BLANK, CASE, KEY SET, TRANSMITTER ASSY, DOOR CONTROL, MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL.
