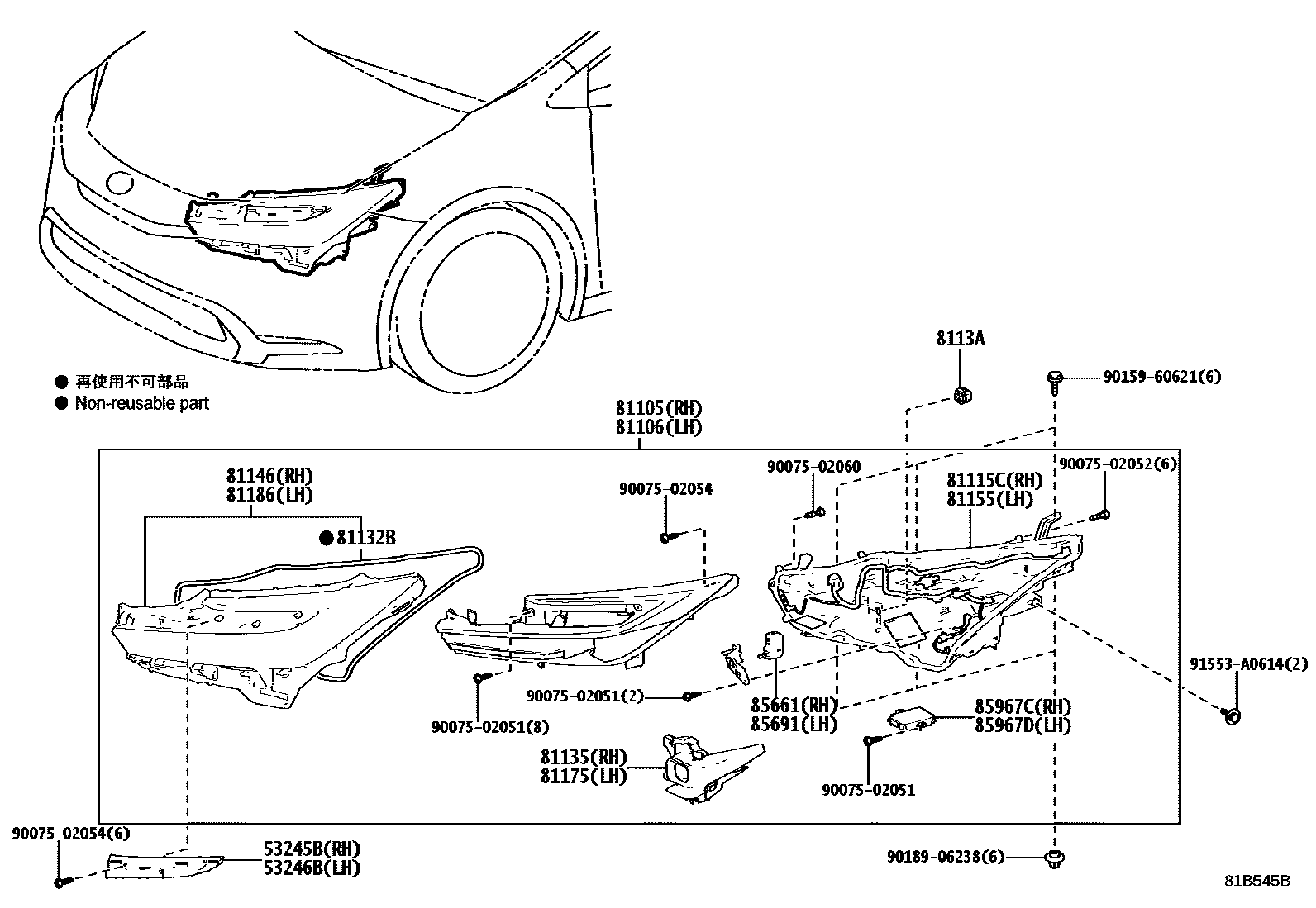

Toyota PRIUS — HEADLAMP
53245BBRACKET, HEADLAMP, RH
53246BBRACKET, HEADLAMP, LH
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81115CHOUSING, HEADLAMP, RH
81132BGASKET, HEADLAMP LENS
81135UNIT ASSY, HEADLAMP, RH
8113ALED, HEADLAMP FRONT TURN SIGNAL
81146LENS, HEADLAMP, RH
81155HOUSING, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
81186LENS, HEADLAMP, LH
85661MOTOR, HEADLAMP LEVELING, RH
85691MOTOR, HEADLAMP LEVELING, LH
85967CCOMPUTER, LIGHT CONTROL LED, RH
85967DCOMPUTER, LIGHT CONTROL LED, LH
9007502051
main90075-02051
9007502052
main90075-02052
9007502054
main90075-02054
9007502060
main90075-02060
9015960621
main90159-60621
9018906238
main90189-06238
91553A0614
main91553-A0614
23 parts on this diagram · 3 diagrams in section
HEADLAMP for Toyota PRIUS
This section contains 30 genuine Toyota parts for the HEADLAMP system of the Toyota PRIUS. Key components include: BRACKET, HEADLAMP, RH, BRACKET, HEADLAMP, LH, COMPUTER SUB-ASSY, HEADLAMP, RH, COMPUTER SUB-ASSY, HEADLAMP, LH, HOUSING SUB-ASSY, HEADLAMP, RH.
