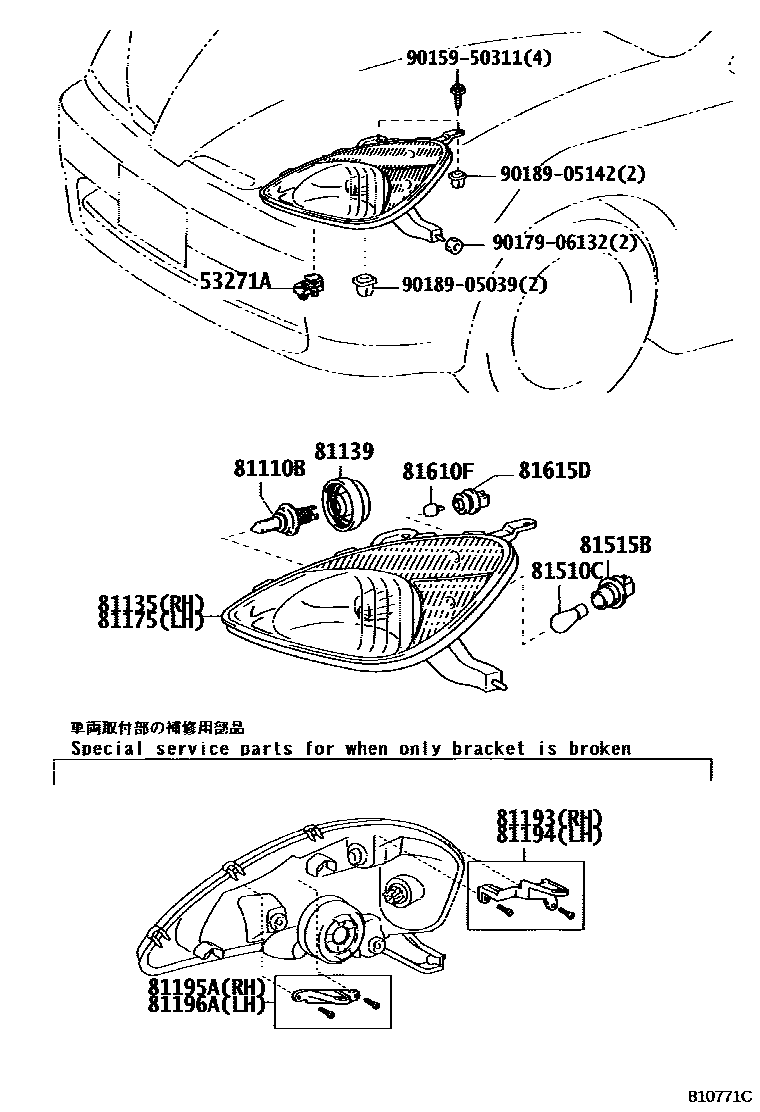

Toyota PRIUS — HEADLAMP
53271ABRACKET, HEADLAMP MOUNTING
81110BBULB(FOR HEADLAMP, NO.1)
81139COVER, HEADLAMP SOCKET
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
81615DSOCKET, CLEARANCE LAMP
9015950311
main90159-50311
9017906132
main90179-06132
9018905039
main90189-05039
9018905142
main90189-05142
17 parts on this diagram · 1 diagram in section
HEADLAMP for Toyota PRIUS
This section contains 17 genuine Toyota parts for the HEADLAMP system of the Toyota PRIUS. Key components include: BRACKET, HEADLAMP MOUNTING, BULB(FOR HEADLAMP, NO.1), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP SOCKET, UNIT ASSY, HEADLAMP, LH.
