Toyota PRIUS — FUEL INJECTION SYSTEM

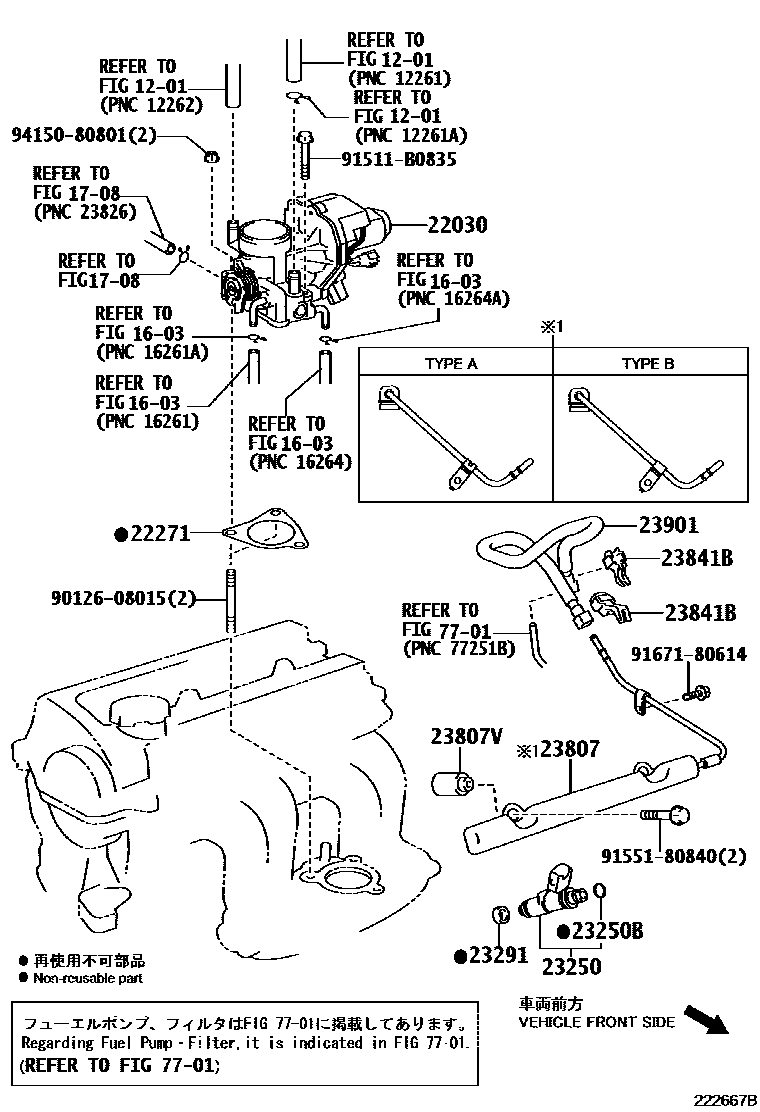

Parts diagram

1201VENTILATION HOSE

→ Go to FIG 12-01

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1708VACUUM PIPING

→ Go to FIG 17-08

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21020i200308-200511

22271GASKET, THROTTLE BODY

main22271-21030i200308-200511

23250INJECTOR ASSY, FUEL

main23209-21020×4i200308-200511

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i200308-200511

main90301-07037×4i200607-200903

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i201107

main23291-41010×4i200308-200511

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-21070i200308-200501

main23814-21071i200501-200511

main23814-21072i200612-201112

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010×2i200511

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050×2i200607

main23841-28010×2i200308-200511

23901TUBE SUB-ASSY, FUEL

main23901-21080i200308-200501

main23901-21081i200511-201112

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9012608015

main90126-08015

91511B0835

main91511-B0835

9155180840

main91551-80840

9167180614

main91671-80614

9415080801

main94150-80801

18 parts on this diagram · 1 diagram in section

FUEL INJECTION SYSTEM for Toyota PRIUS

This section contains 18 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota PRIUS. Key components include: VENTILATION HOSE, RADIATOR & WATER OUTLET, VACUUM PIPING, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, GASKET, THROTTLE BODY.
