Toyota PRIUS — FUEL INJECTION SYSTEM

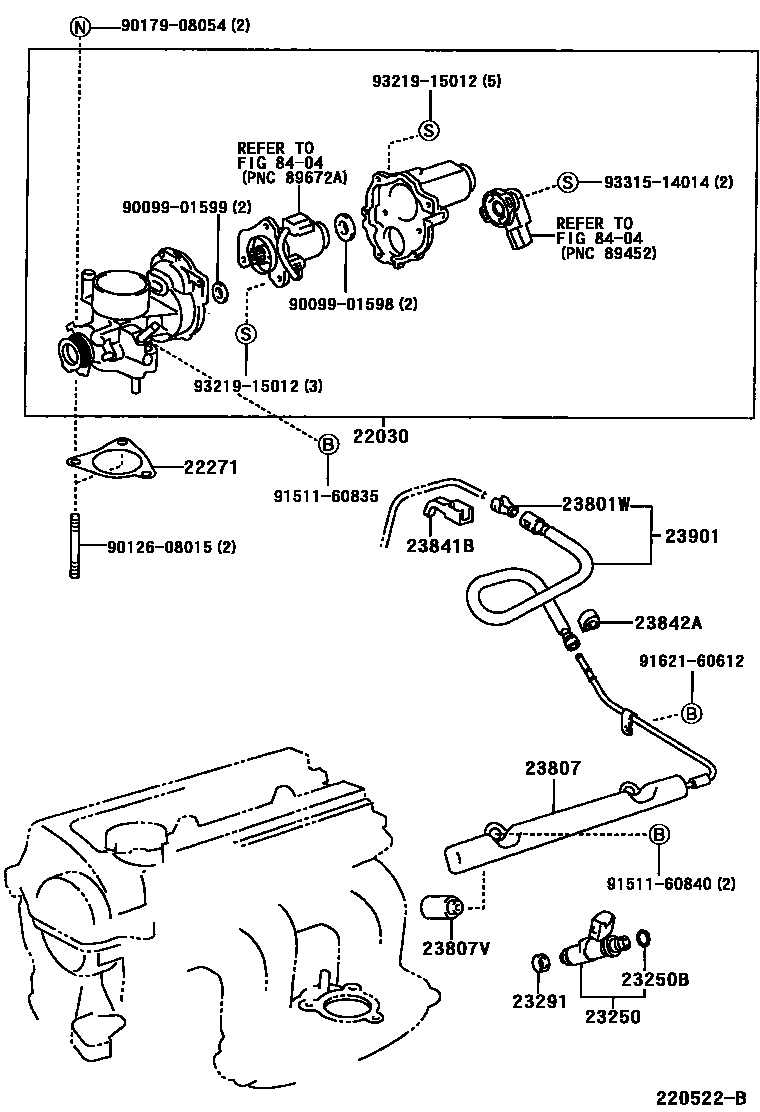

Parts diagram

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21010i199712-200005

main22030-21020i200005-200305

22271GASKET, THROTTLE BODY

main22271-21010i199712-200005

main22271-21030i200005-200305

23250INJECTOR ASSY, FUEL

main23209-21010×4i199712-200005

main23209-21020×4i200005-200305

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×4i199712-199812

main90301-07024×4i199812-200305

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×4i199712-200305

23801WCLIP, FUEL TUBE CONNECTOR

main90923-07010i199712-200005

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-21010i199712-200005

main23814-21040i200005-200305

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010×2i199712-200305

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21030i200005

main23841-32050i199712-200005

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i199712

23901TUBE SUB-ASSY, FUEL

main23901-21010i199712-200005

main23901-21040i200005

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9009901598

main90099-01598

9009901599

main90099-01599

9012608015

main90126-08015

9017908054

main90179-08054

9151160835

main91511-60835

9151160840

main91511-60840

9162160612

main91621-60612

9321915012

main93219-15012

9331514014

main93315-14014

21 parts on this diagram · 5 diagrams in section

FUEL INJECTION SYSTEM for Toyota PRIUS

This section contains 35 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota PRIUS. Key components include: BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, GASKET, THROTTLE BODY, FILTER, FUEL PUMP, PUMP ASSY, FUEL, SPACER, FUEL PUMP.
