Toyota PRIUS — FRONT SPRING & SHOCK ABSORBER

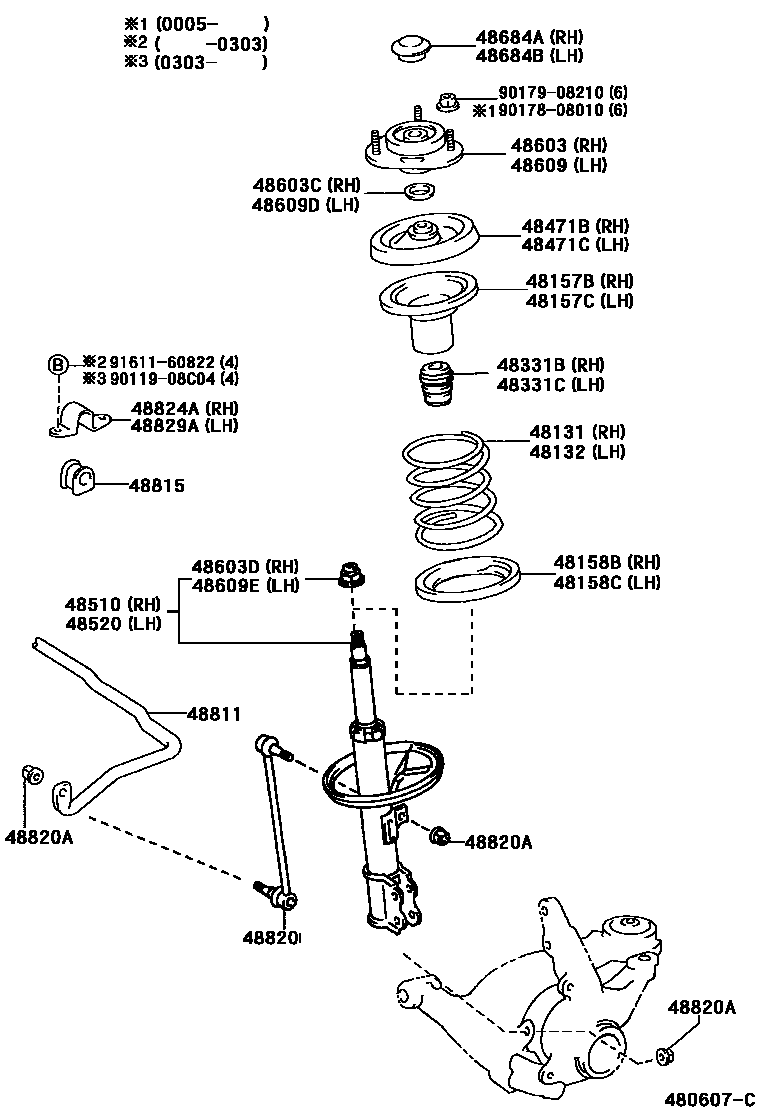

Parts diagram

48131SPRING, FRONT COIL, RH

main48131-47010i199712

main48131-47020i200108

48132SPRING, FRONT COIL, LH

main48131-47010i199712

main48131-47020i200108

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-47010i199712

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-47010i199712

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-47010i199712

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-47010i199712

48331BBUMPER, FRONT SPRING, RH

main48331-47010i199712

48331CBUMPER, FRONT SPRING, LH

main48331-47010i199712

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-47010i199712

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-47010i199712

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-49145i199712-200005

main48510-49225i200005

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-49145i199712-200005

main48520-49335i200005

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-47010i199712-200005

main48609-47020i200005

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22049i199712

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94182-11400i199712

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-47010i199712-200005

main48609-47020i200005

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22049i199712

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94182-11400i199712

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-12070i199712-200211

main48684-52010i200211

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-12070i199712-200211

main48684-52010i200211

48811BAR, STABILIZER, FRONT

main48811-47010i199712-200005

main48811-47020i200005

main48811-47030i200108

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-28120i200108

main48815-47010i199712

48820LINK ASSY, FRONT STABILIZER

main48820-47010i199712

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151i199712

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-47010i199712

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-47010i199712

9011908C04

main90119-08C04

9017808010

main90178-08010

9017908210

main90179-08210

9161160822

main91611-60822

30 parts on this diagram · 1 diagram in section

FRONT SPRING & SHOCK ABSORBER for Toyota PRIUS

This section contains 30 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota PRIUS. Key components include: SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, INSULATOR, FRONT COIL SPRING, UPPER RH, INSULATOR, FRONT COIL SPRING, UPPER LH, INSULATOR, FRONT COIL SPRING, LOWER RH.
