Toyota PRIUS — FRONT FENDER APRON & DASH PANEL

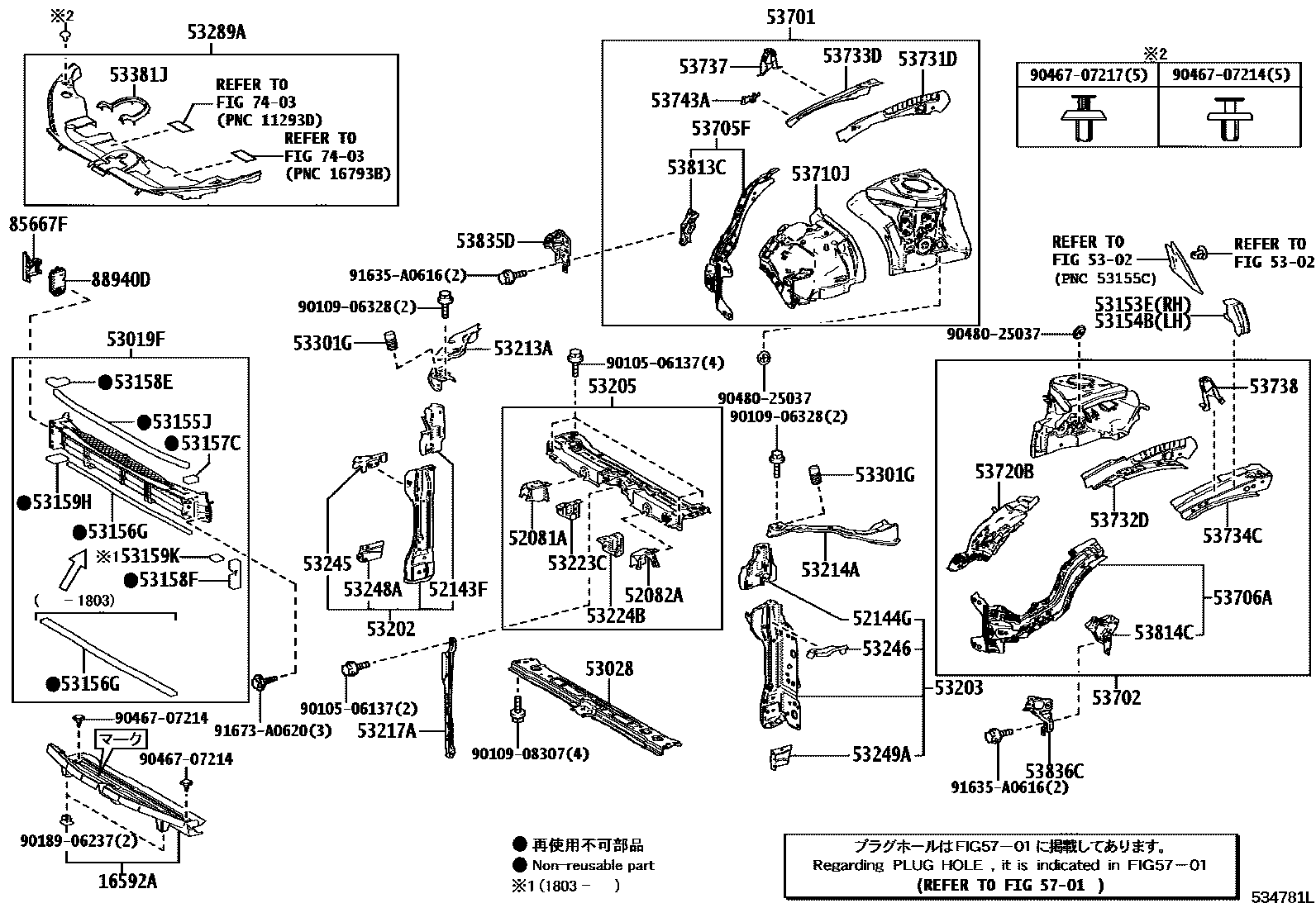

Parts diagram

16592AGUIDE, RADIATOR AIR, NO.3

main16592-37020i201511-201805

main16592-37120i201805-201812

main16592-37120i201812

52081ASTAY SUB-ASSY, FRONT BUMPER, RH

main52137-47010i201511-201812

52082ASTAY SUB-ASSY, FRONT BUMPER, LH

main52138-47010i201511-201812

52143FBRACKET, FRONT BUMPER SIDE, RH

main52143-47030i201511-201812

52144GBRACKET, FRONT BUMPER SIDE, LH

main52144-47050i201511-201812

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-12020i201812

main53019-47020i201511-201812

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-12050i201805-201812

main53028-47010i201511-201805

53153EGUIDE, FRONT SIDE AIR

main53153-47010i201511-201812

53154BGUIDE, FRONT SIDE AIR, NO.2

main53154-47010i201511-201812

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-12100i201812

main53155-47030i201511-201812

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-12040i201812

main53156-47010i201511-201803

main53156-47030i201803-201812

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-12010i201812

main53157-47020i201511-201812

53158ESEAL, RADIATOR GRILLE, NO.4

main53158-12010i201812

main53158-47010i201511-201812

53158FSEAL, RADIATOR GRILLE, NO.4

main53158-47010i201812

main53158-47020i201511-201812

53159HSEAL, RADIATOR GRILLE, NO.5

main53159-47030i201511-201812

53159KSEAL, RADIATOR GRILLE, NO.5

main53159-47040i201803-201812

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-47901i201511-201812

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-47901i201511-201812

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-47900i201511-201812

53213ASUPPORT, RADIATOR, UPPER RH

main53213-47050i201511-201812

53214ASUPPORT, RADIATOR, UPPER LH

main53214-47050i201511-201812

53217ABRACE, HOOD LOCK SUPPORT

main53217-47030i201511-201805

main53217-47031i201805-201812

53223CBRACKET, RADIATOR GRILLE MOUNTING, RH

main53223-47020i201511-201812

53224BBRACKET, RADIATOR GRILLE MOUNTING, LH

main53224-47010i201511-201812

53245BRACKET, HEADLAMP, RH

main53245-47010i201511-201812

53246BRACKET, HEADLAMP, LH

main53246-47010i201511-201812

53248ABRACKET, RADIATOR SHUTTER, RH

main53248-47010i201511-201812

53249ABRACKET, RADIATOR SHUTTER, LH

main53249-47010i201511-201812

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-47050i201511-201605

main53289-47070i201605-201612

main53289-47071i201701-201704

main53289-47072i201705-201812

main53289-47090i201812

53301GCUSHION, HOOD BUMPER

main90541-15037i201511-201812

53381JSEAL, HOOD TO RADIATOR SUPPORT

main53381-47050i201511-201704

main53381-47051i201705-201812

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-47110i201511-201606

main53701-47111i201607-201812

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-47100i201511-201606

main53702-47101i201607-201812

53705FBRACE SUB-ASSY, FENDER APRON, RH

main53705-47900i201511-201607

main53705-47901i201607-201812

53706ABRACE SUB-ASSY, FENDER APRON, LH

main53706-47900i201511-201607

main53706-47901i201607-201812

53710JAPRON ASSY, FRONT FENDER, RH

main53710-47060i201511-201812

53720BAPRON ASSY, FRONT FENDER, LH

main53720-47070i201511-201812

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-47030i201511-201606

main53731-47031i201607-201812

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-47020i201511-201812

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-47020i201511-201812

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-47020i201511-201812

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-47040i201511-201812

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-47040i201511-201812

53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-47020i201511-201812

53813CEXTENSION, FRONT FENDER, RH

main53813-47050i201511-201812

53814CEXTENSION, FRONT FENDER, LH

main53814-47030i201511-201812

53835DBRACKET, FRONT SIDE PANEL, RH

main53835-47050i201511-201812

53836CBRACKET, FRONT SIDE PANEL, LH

main53836-47050i201511-201812

5701HOLE PLUG

→ Go to FIG 57-01

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

85667FCOVER, MOTOR

main85667-12010i201812

main85667-47010i201511-201812

88940DACTUATOR ASSY, SWING GRILLE

main88940-47020i201511-201812

main88940-47070i201812-202007

main88940-47071i202007-202008

main88940-47072i202009-202105

main88940-47073i202106

9010506137

main90105-06137

9010906328

main90109-06328

9010908307

main90109-08307

9018906237

main90189-06237

9046707214

main90467-07214

9046707217

main90467-07217

9048025037

main90480-25037

91635A0616

main91635-A0616

91673A0620

main91673-A0620

62 parts on this diagram · 4 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota PRIUS

This section contains 77 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota PRIUS. Key components include: GUIDE, RADIATOR AIR, NO.3, STAY SUB-ASSY, FRONT BUMPER, RH, STAY SUB-ASSY, FRONT BUMPER, LH, BRACKET, FRONT BUMPER SIDE, RH, BRACKET, FRONT BUMPER SIDE, LH.
