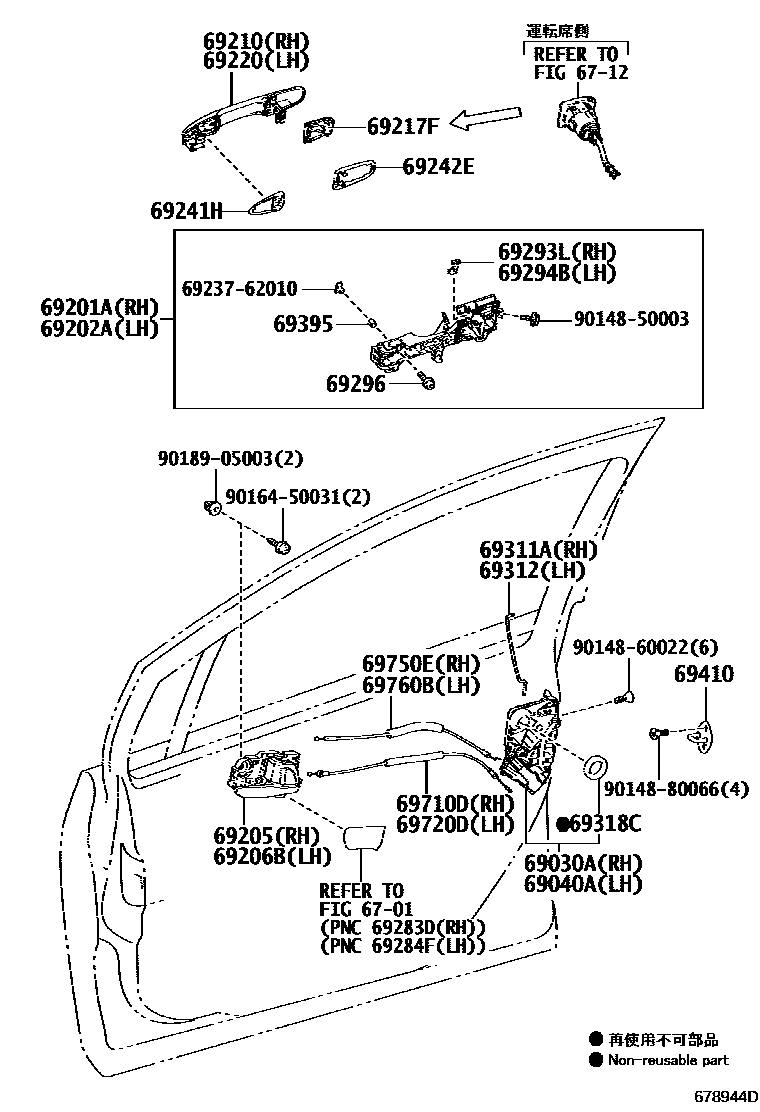

Toyota PRIUS — FRONT DOOR LOCK & HANDLE
6701FRONT DOOR PANEL & GLASS
6712LOCK CYLINDER SET
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#; BLACK,TRIM2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#; BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
EMOTIONAL RED,3T7
STEEL BLONDE,4X1
THERMO-TECT LIME GREEN,6W7
FROSTY GREEN MC.,781
DK.BLUE M.M.,8W7
SUPER WHITE 2,040
WHITE PEARL CS.,070; WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2XC
SILVER ME.,1F7
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
PRECIOUS BLACK,219
EMOTIONAL RED,2PG ,3T7; EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
STEEL BLONDE,2RB ,4X1; STEEL BLONDE,4X1
THERMO-TECT LIME GREEN,6W7
DK.BLUE M.M.,2RC ,8W7; DK.BLUE M.M.,8W7
BLUE ME.,8X7
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
EMOTIONAL RED,3T7
STEEL BLONDE,4X1
THERMO-TECT LIME GREEN,6W7
FROSTY GREEN MC.,781
DK.BLUE M.M.,8W7
SUPER WHITE 2,040
WHITE PEARL CS.,070; WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2XC
SILVER ME.,1F7
GRAY ME.,1G3; GRAY ME.,1G3 ,2XD
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
PRECIOUS BLACK,219
EMOTIONAL RED,2PG ,3T7; EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
STEEL BLONDE,4X1
THERMO-TECT LIME GREEN,6W7
DK.BLUE M.M.,2RC ,8W7; DK.BLUE M.M.,8W7
BLUE ME.,8X7
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69395BUSH(FOR DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
6923762010RETAINER, DOOR OUTSIDE HANDLE
main69237-62010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003
31 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota PRIUS
This section contains 31 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota PRIUS. Key components include: FRONT DOOR PANEL & GLASS, LOCK CYLINDER SET, LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH.
