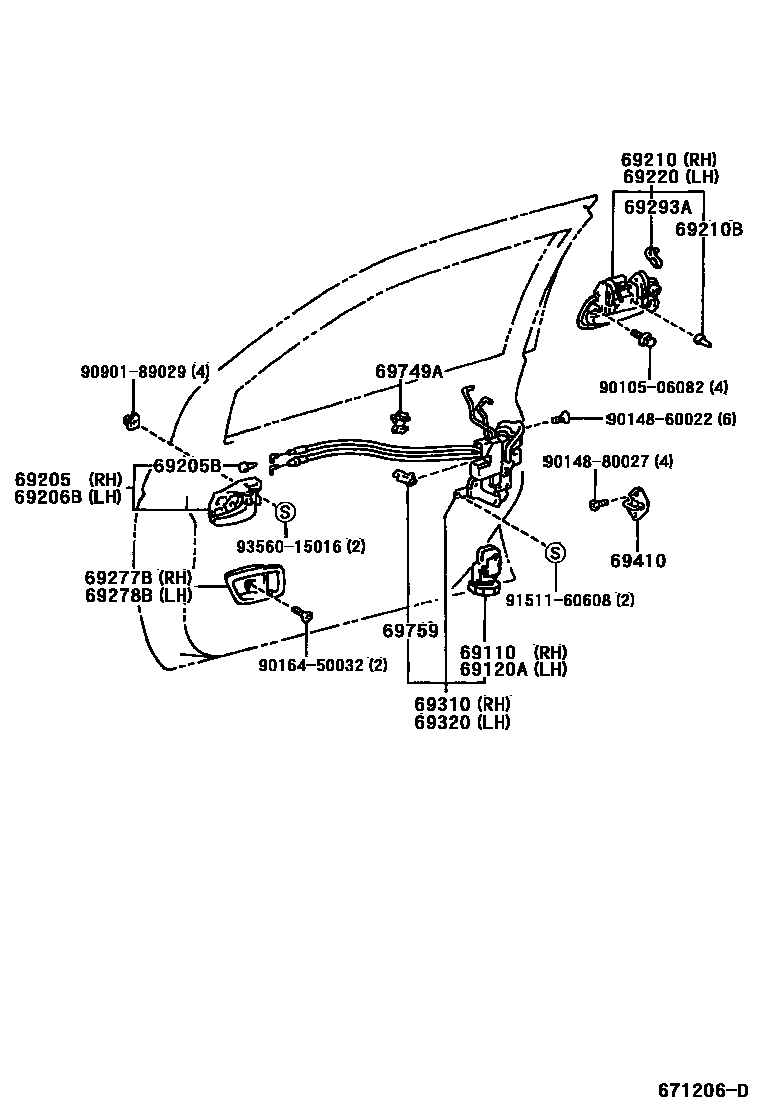

Toyota PRIUS — FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
LT.AMETHYST,TRIM13,19
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
LT.AMETHYST,TRIM13,19
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
CORAL REEF M.M.,3L6
GREEN M.M,6P5
LT.AQUA ME.OP.,761
DK.BLUE M.M.,8L2
LT.PURPLE ME.,942
SUPER WHITE 2,040
WHITE PM.,057
SILVER ME.GR.,1C5
BORDEAUX MC.,3P2
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
DK.BLUE MC.,8K8
BLUE M.M.,8P5
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
CORAL REEF M.M.,3L6
GREEN M.M,6P5
LT.AQUA ME.OP.,761
DK.BLUE M.M.,8L2
LT.PURPLE ME.,942
SUPER WHITE 2,040
WHITE PM.,057
SILVER ME.GR.,1C5
BORDEAUX MC.,3P2
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
DK.BLUE MC.,8K8
BLUE M.M.,8P5
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
LT.AMETHYST,TRIM9#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
LT.AMETHYST,TRIM13,19
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
9010506082
main90105-06082
9014860022
main90148-60022
9014880027
main90148-80027
9016450032
main90164-50032
9090189029
main90901-89029
9151160608
main91511-60608
9356015016
main93560-15016
23 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota PRIUS
This section contains 23 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota PRIUS. Key components include: ACTUATOR ASSY, FRONT DOOR LOCK, RH, ACTUATOR ASSY, FRONT DOOR LOCK, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, CUSHION(FOR FRONT DOOR INSIDE HANDLE), HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH.
