Toyota PRIUS — ENGINE OIL PUMP

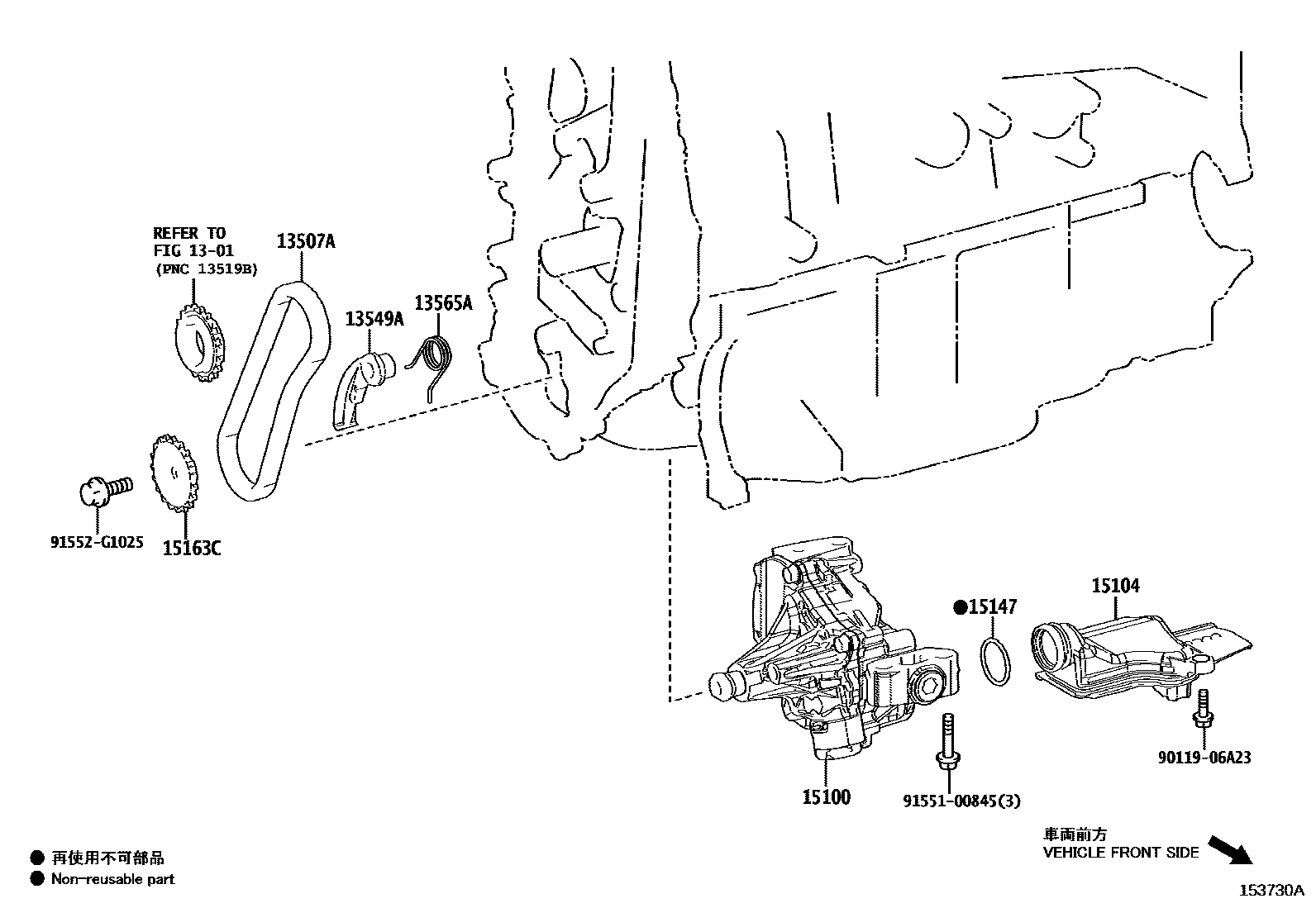

Parts diagram

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-24020i202212

13549APLATE, CHAIN TENSIONER

main13549-25020i202212

13565ASPRING, CHAIN DAMPER

main13565-25010i202212

15100PUMP ASSY, OIL

main15100-24020i202212

main15100-37070i202212

15104STRAINER SUB-ASSY, OIL

main15104-24010i202212

15147GASKET, OIL STRAINER

main15147-25010i202212

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i202212

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010i202212

9011906A23

main90119-06A23

9155100845

main91551-00845

91552G1025

main91552-G1025

12 parts on this diagram · 2 diagrams in section

ENGINE OIL PUMP for Toyota PRIUS

This section contains 20 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota PRIUS. Key components include: CRANKSHAFT & PISTON, CHAIN SUB-ASSY, OIL PUMP DRIVE, PLATE, CHAIN TENSIONER, SPRING, CHAIN DAMPER, COVER SUB-ASSY, OIL PUMP.
