Toyota PRIUS — CRANKSHAFT & PISTON

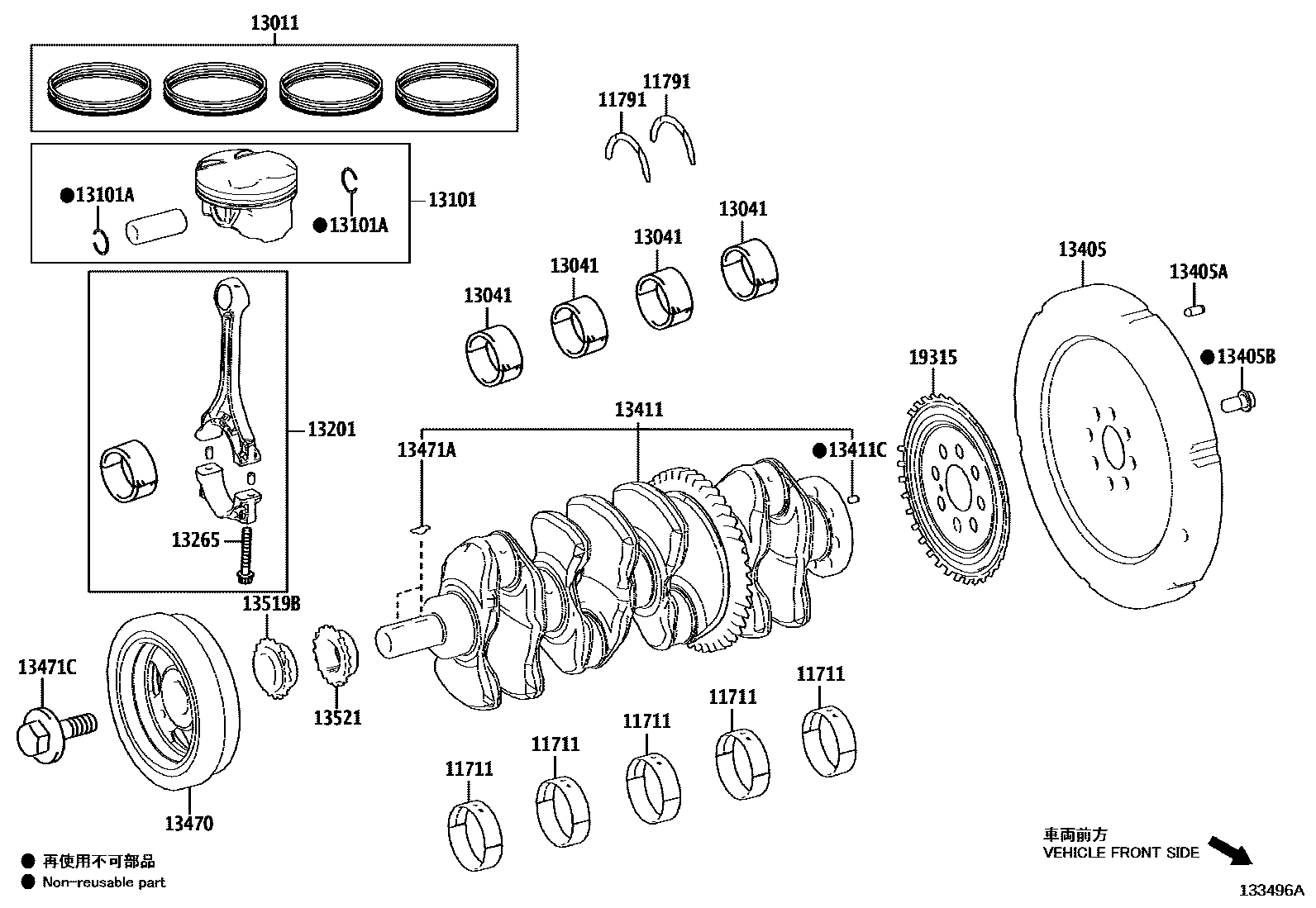

Parts diagram
11711BEARING, CRANKSHAFT
main11701-24010-01×5i202212-202303
main11701-24010-02×5i202212-202303
main11701-24010-03×5i202212-202303
main11701-24010-04×5i202212-202303
main11701-24010-05×5i202212-202303
main11701-24010-06×5i202212-202303
main11701-24011-01×5i202303
main11701-24011-02×5i202303
main11701-24011-03×5i202303
main11701-24011-04×5i202303
main11701-24011-05×5i202303
main11701-24011-06×5i202303
main11701-37050-01×5i202212
MARK1
main11701-37050-02×5i202212
MARK2
main11701-37050-03×5i202212
MARK3
main11701-37050-04×5i202212
MARK4
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-15030×2i202212
main11791-22020×2i202301
main11791-37010×2i202212-202301
13011RING SET, PISTON
main13011-24040i202212
main13011-37270i202212
13041BEARING, CONNECTING ROD
main13041-24020-01×4i202212
main13041-24020-02×4i202212
main13041-24020-03×4i202212
main13041-37040-01×4i202212
MARK1
main13041-37040-02×4i202212
MARK2
main13041-37040-03×4i202212
MARK3
13101PISTON SUB-ASSY, W/PIN
main13101-24050×4i202212
main13101-37440×4i202212
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-19019×8i202212
main90520-20064×8i202212
13201ROD SUB-ASSY, CONNECTING
main13201-09C10×4i202212
main13201-29835-A0×4i202212
main13201-29835-B0×4i202212
main13201-29835-C0×4i202212
main13201-39295×4i202212
13265BOLT, CONNECTING ROD
main13265-22040×8i202212
main13265-25020×8i202212
13405FLYWHEEL SUB-ASSY
main13451-24081i202212
main13451-37070i202212
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08120×3i202212
13405BBOLT, FLYWHEEL SETTING
main90105-12404×8i202212
main90913-01027×8i202212
13411CRANKSHAFT
main13401-0T061i202212
main13401-24010i202212
main13401-24020i202303
main13401-37021i202212
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
main90250-06035i202212
13470PULLEY ASSY, CRANKSHAFT
main13470-24020i202212
13471PULLEY, CRANKSHAFT
main13470-37060i202212
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-04001×2i202212
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-14106i202212
main90119-16020i202212
13519GEAR, OIL PUMP DRIVE
main13519-37010i202212
13519BSPROCKET, OIL PUMP DRIVE
main13519-24010i202212
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-24010i202212
main13521-37011i202212
19315PLATE, CRANK ANGLE SENSOR, NO.1
main19315-24010i202212
main19315-37030i202212

21 parts on this diagram · 2 diagrams in section

CRANKSHAFT & PISTON for Toyota PRIUS

This section contains 23 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota PRIUS. Key components include: BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD, PISTON SUB-ASSY, W/PIN.
