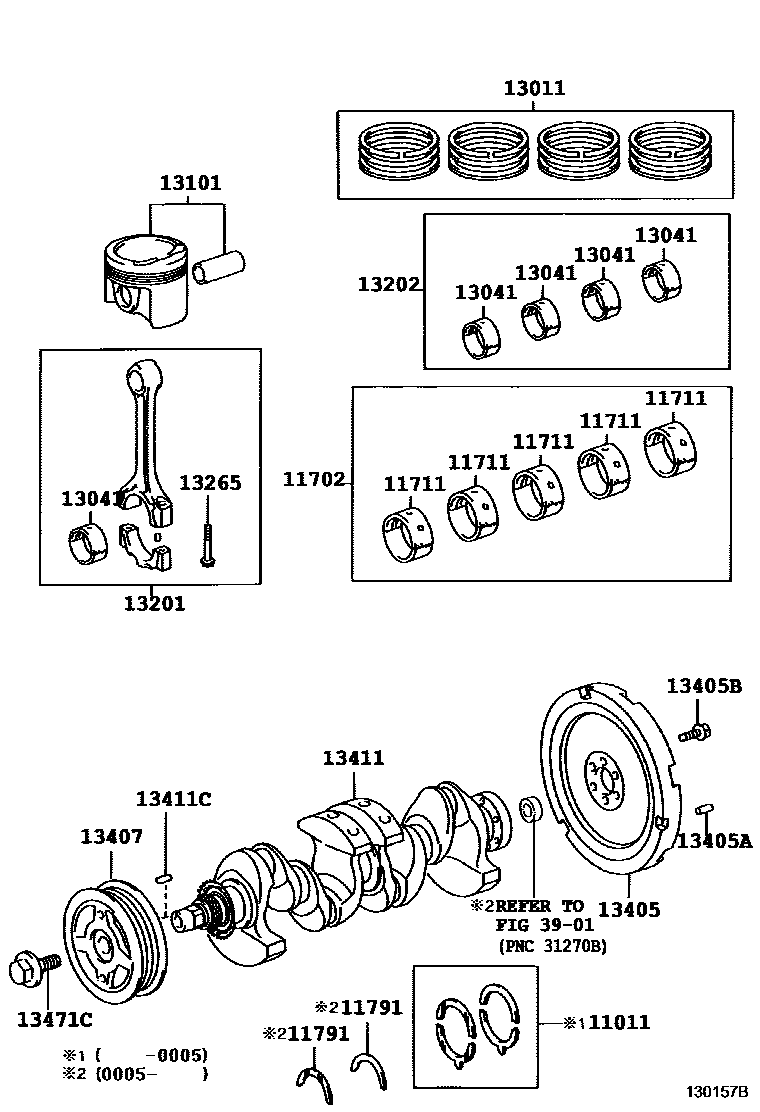

Toyota PRIUS — CRANKSHAFT & PISTON

11011WASHER SET, CRANKSHAFT THRUST

main11011-11010i199712-200005

main11012-11010i199712-200005

11702BEARING SET, CRANKSHAFT

main11704-21010i199712-200305

11711BEARING, CRANKSHAFT

main11701-21010-01×5i199712-200305

main11701-21010-02×5i199712-200305

main11701-21010-03×5i199712-200305

main11701-21010-04×5i199712-200305

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-21010×2i200005-200305

main11792-21010×2i200005-200308

main11793-21010×2i200005-200308

13011RING SET, PISTON

main13011-21030i199712-200005

main13011-21070i200005-200305

13041BEARING, CONNECTING ROD

main13041-21010-01×4i199712-200005

MARK 1

main13041-21010-02×4i199712-200005

MARK 2

main13041-21010-03×4i199712-200005

MARK 3

main13041-21030-01×4i200005-200305

main13041-21030-02×4i200005-200305

main13041-21030-03×4i200005-200305

13101PISTON SUB-ASSY, W/PIN

main13101-21020×4i199712-200005

main13101-21060×4i200005-200305

13201ROD SUB-ASSY, CONNECTING

main13201-29045×4i199712-200005

main13201-29095×4i200005

13202BEARING SET, CONNECTING ROD

main13204-21010i199712-200005

main13204-21030i200005

13265BOLT, CONNECTING ROD

main13265-21020×8i199712-200305

13405FLYWHEEL SUB-ASSY

main13451-21020i199712-200005

main13451-21060i200005-200305

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i199712-200005

main90250-08120×3i200005-200305

13405BBOLT, FLYWHEEL SETTING

main90105-10433×6i199712-200005

main90913-01024×6i200005-200305

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-21010i199712-200005

main13407-21040i200005-200305

13411CRANKSHAFT

main13401-21010i199712-200005

main13401-21040i200005-200305

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-03046i199712-200005

main90254-03025i200005-200305

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12319i199712-200005

main90119-12345i200005-200305

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

18 parts on this diagram · 1 diagram in section

CRANKSHAFT & PISTON for Toyota PRIUS

This section contains 18 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota PRIUS. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON.
