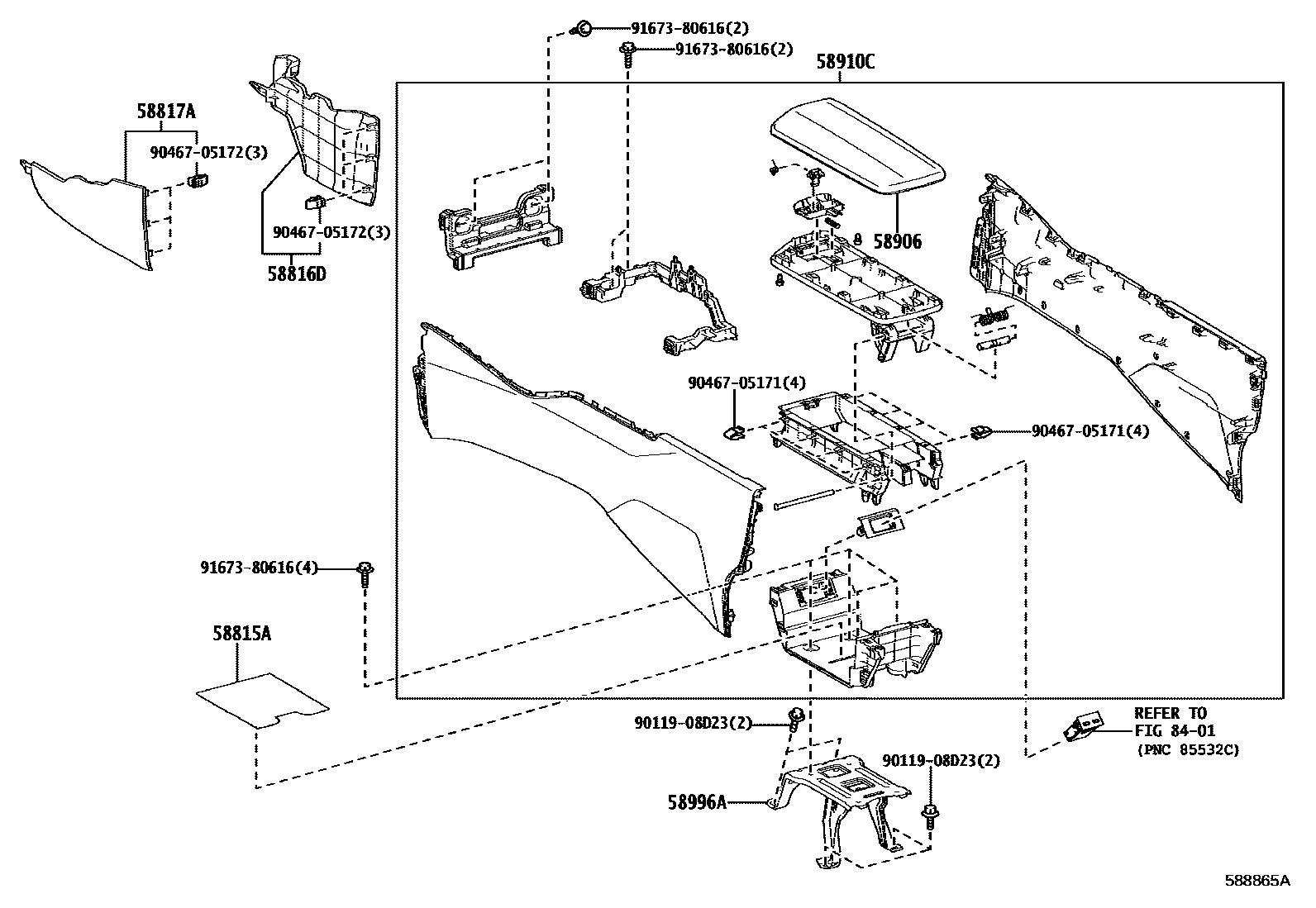

Toyota PRIUS — CONSOLE BOX & BRACKET

0001 1 0002 1

58815ACARPET, CONSOLE BOX

main58815-47090iMXWH6#,ZVW6#202212

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-47090-C0iMXWH6#,ZVW6#202212

BLACK,TRIM2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-47090-C0iMXWH6#,ZVW6#202212

BLACK,TRIM2#

58906DOOR SUB-ASSY, UPPER CONSOLE

main58906-47200-C0iMXWH6#,ZVW6#202212

BLACK,TRIM2#

58910CBOX ASSY, CONSOLE, REAR

main58910-47270-C1iMXWH6#,ZVW6#202212

BLACK,TRIM2#

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-47050iMXWH6#,ZVW6#202212

8401

9011908D23

main90119-08D23

9046705171

main90467-05171

9046705172

main90467-05172

9167380616

main91673-80616

11 parts on this diagram · 2 diagrams in section
