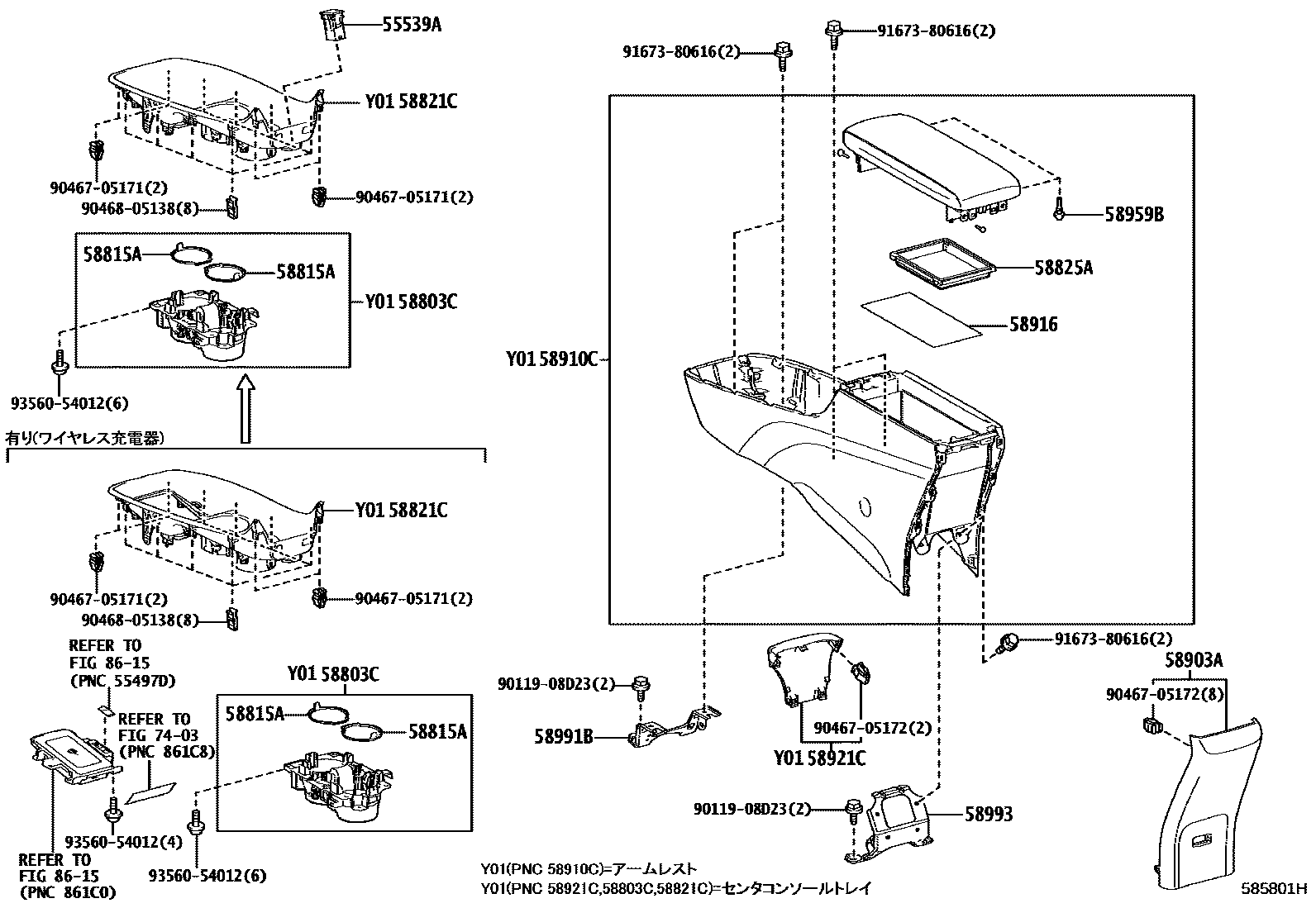

Toyota PRIUS — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

55539ACOVER, SPARE SWITCH HOLE

main55524-12010-C0iZVW5#..A..CBU201812-202106

main55539-58070-C0iZVW5#..(A,PREM,S)..CBU201511-201805

BLACK

main55539-58070-C1iZVW5#..(A,PREM,S)..CBU201806-201812

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-47011-A0iZVW51,55..(A,PREM)..CBU201610-201812

WHITE,TRIM1#,20,21

main58803-47011-C0iZVW51,55..A..CBU201610-201812

BLACK METALLC,TRIM20,21

main58803-47020iZVW50,55..S..CBU201511-201812

main58803-47050iZVW5#..(A,PREM,S)..CBU201812

main58803-47030-C0iZVW51,55..PREM201711-201801

58815ACARPET, CONSOLE BOX

main58815-47080×2iZVW5#..(A,PREM,S)..CBU201511-201812

58821CPANEL, CONSOLE, UPPER

main58821-47051-A0iZVW51,55..(A,PREM)..CBU201610-201812

WHITE,TRIM1#,20,21

main58821-47070iZVW50,55..S..CBU201511-201812

main58821-47140-C0iZVW5#..(A,PREM)..CBU201812

BLACK METALLC,TRIM1#,2#

main58821-47150iZVW5#..S..CBU201812

main58821-47040supersedes 58821-47051-A0iZVW51,55..(A,PREM)..CBU201511-201606

main58821-47041-A0supersedes 58821-47051-A0iZVW51,55..(A,PREM)..CBU201704-201802

main58821-47041-C0supersedes 58821-47051-C0iZVW51,55..A..CBU201704-201802

main58821-47110-C0iZVW51,55..PREM201711-201801

main58821-47120-C0iZVW51,55..PREM201711-201801

main58821-47130-C0iZVW5#..A..CBU201812-202106

58825APOCKET, CONSOLE BOX

main58825-47060iZVW5#..(A,PREM,S)..CBU201812

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-47060-C0supersedes 58903-47070-C0iZVW5#..(A,S)..CBU202007

BLACK,TRIM1#,2#

58910CBOX ASSY, CONSOLE, REAR

main58910-47030-C2supersedes 58910-47040-C2iZVW5#..(A,S)..CBU201511-201812

BLACK,TRIM0#,1#,2#

58916MAT, BOX BOTTOM

main58916-47020iZVW5#..(A,PREM,S)..CBU201511-201812

main58916-47030iZVW51..E201511-201812

58921CPLATE, BOX, UPPER NO.1

main58921-47020iZVW51,55..(A,PREM)..CBU201511-201606

main58921-47021-A0iZVW51,55..(A,PREM)..CBU201607-201610

WHITE,TRIM1#,2#

main58921-47021-C0iZVW51,55..A..CBU201610-201812

BLACK METALLC,TRIM20,21

main58921-47030iZVW50,55..S..CBU201511-201812

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main90541-03078×2iZVW5#..(A,PREM,S)..CBU201511-201812

58991BBRACKET, CONSOLE BOX MOUNTING, FRONT

main58991-47020iZVW5#..(A,PREM,S)..CBU201511-201812

main58995-47030iZVW51..E201511-201812

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58996-47030iZVW5#..(A,PREM,S)..CBU201511-201812

main58996-47040iZVW51..E201511-201812

7403

8615

9011908D23

main90119-08D23

9046705171

main90467-05171

9046705172

main90467-05172

9046805138

main90468-05138

9167380616

main91673-80616

9356054012

main93560-54012

20 parts on this diagram · 3 diagrams in section
