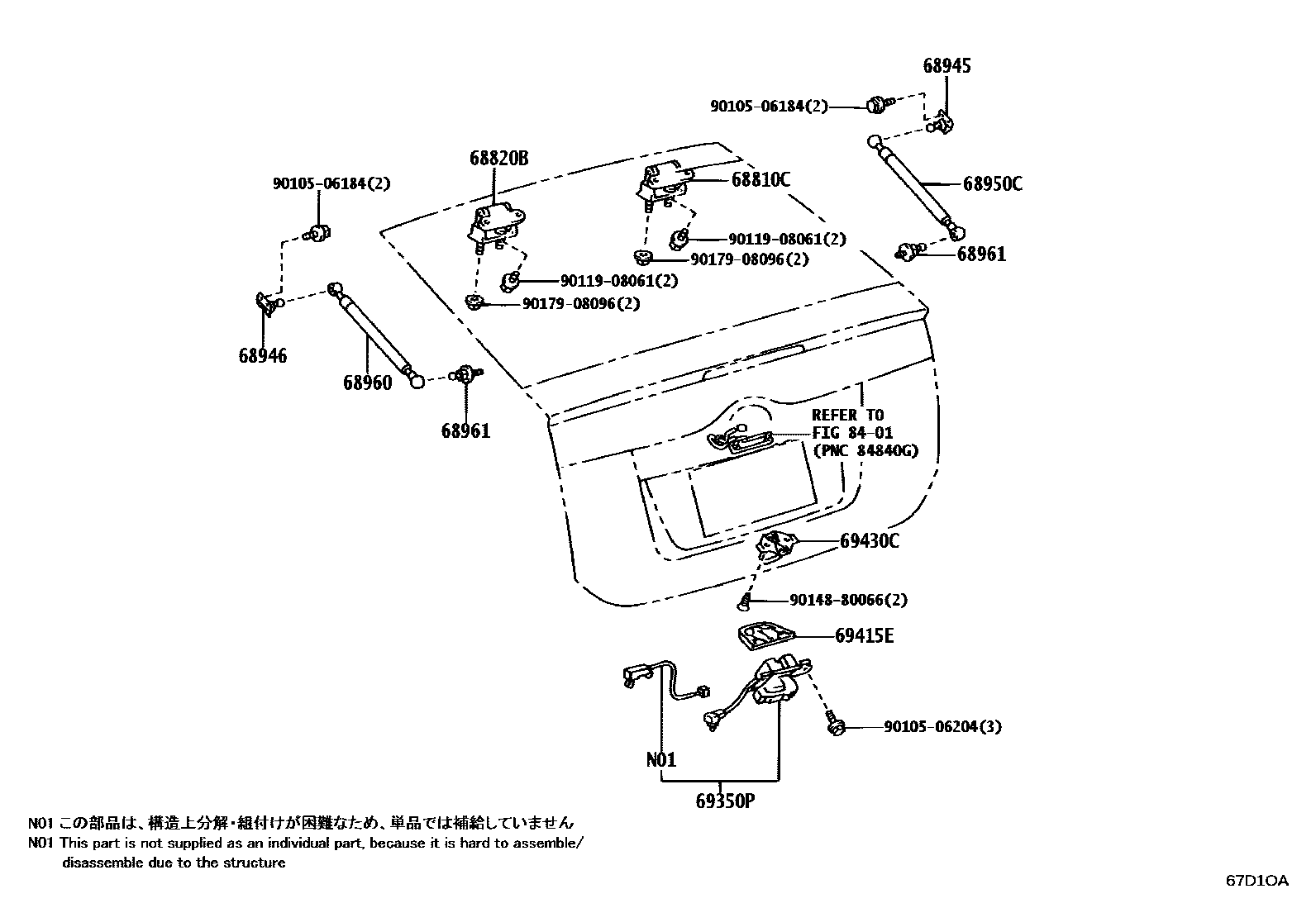

Toyota PRIUS — BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-47010i200308-200511

68820BHINGE ASSY, BACK DOOR, LH

main68810-47010i200308-200511

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-12030i200511

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-12030i200308-200511

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W360i200408-200505

main68950-0W361i200506-200511

main68950-0W200supersedes 68950-0W372i200308-200401

main68950-0W201supersedes 68950-0W211i200401-200408

main68950-0W210supersedes 68950-0W362i200308-200401

main68950-0W211supersedes 68950-0W271i200401-200408

main68950-0W280supersedes 68950-0W362i200308-200401

main68950-0W370i200408-200505

main68950-0W371supersedes 68950-0W362i200511-200709

main68950-0W372supersedes 68950-0W362i200710-200903

68960STAY ASSY, BACK DOOR, LH

main68960-0W360i200408-200505

main68960-0W361i200506-200511

main68960-0W190supersedes 68960-0W362i200308-200401

main68960-0W191supersedes 68960-0W261i200401-200408

main68960-0W200supersedes 68960-0W362i200308-200401

main68960-0W201supersedes 68960-0W261i200401-200408

main68960-0W270supersedes 68960-0W362i200308-200401

main68960-0W370i200408-200505

main68960-0W371supersedes 68960-0W362i200506-200511

main68960-0W372supersedes 68960-0W362i200710-200903

68961BOLT, BACK DOOR STAY

main68961-20140×2i200308-200511

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-47010i200308-200511

69415ECOVER, BACK DOOR LOCK STRIKER

main69415-47010i200308-200511

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-53010i200308-200511

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506184

main90105-06184

9010506204

main90105-06204

9011908061

main90119-08061

9014880066

main90148-80066

9017908096

main90179-08096

16 parts on this diagram · 1 diagram in section

BACK DOOR LOCK & HANDLE for Toyota PRIUS

This section contains 16 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota PRIUS. Key components include: HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, BRACKET, BACK DOOR DAMPER STAY, UPPER RH, BRACKET, BACK DOOR DAMPER STAY, UPPER LH, STAY ASSY, BACK DOOR, RH.
