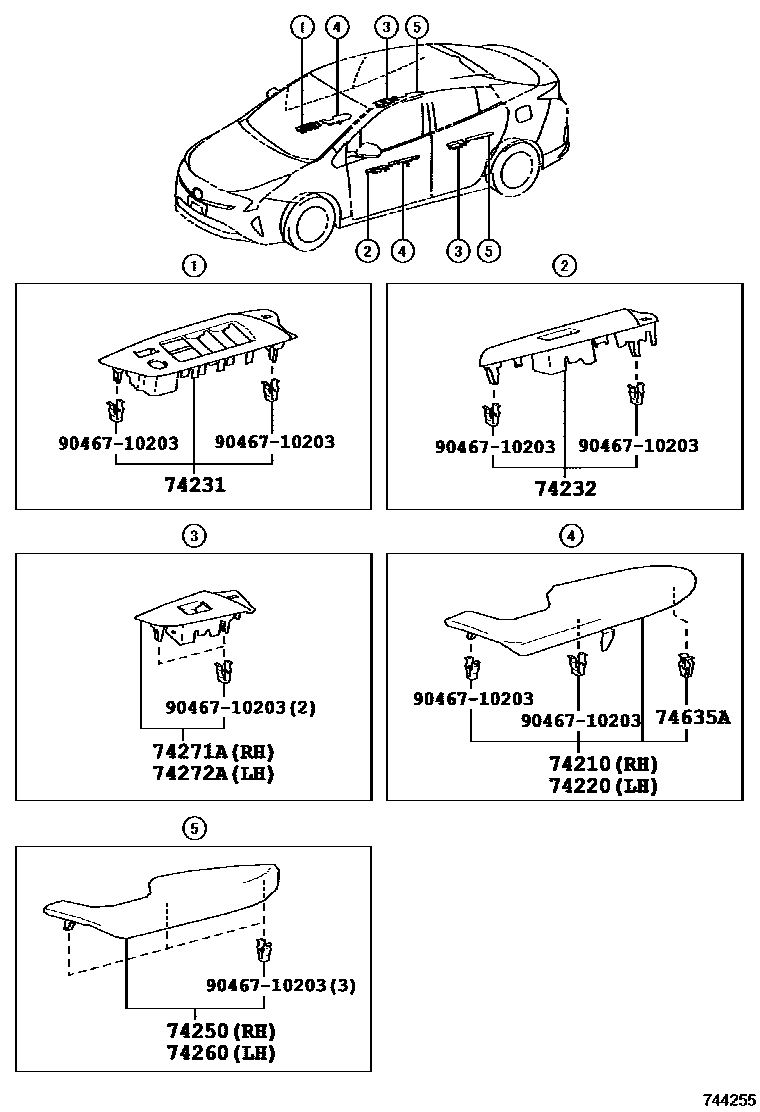

Toyota PRIUS — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-47010-C0201511-201812

74220ARMREST ASSY, FRONT, LH

main74220-47010-C0201511-201812

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-47220201511-201812

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-47180201511-201812

74250ARMREST ASSY, REAR RH

main74250-47010-C0201511-201812

74260ARMREST ASSY, REAR LH

main74260-47010-C0201511-201812

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-47120201511-201812

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-47120201511-201812

74635ACLIP

main90467-08227201511-201812

9046710203

main90467-10203

10 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota PRIUS

This section contains 21 genuine Toyota parts for the ARMREST & VISOR system of the Toyota PRIUS. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, ARMREST ASSY, REAR RH.
