Toyota PRIUS — ARMREST & VISOR

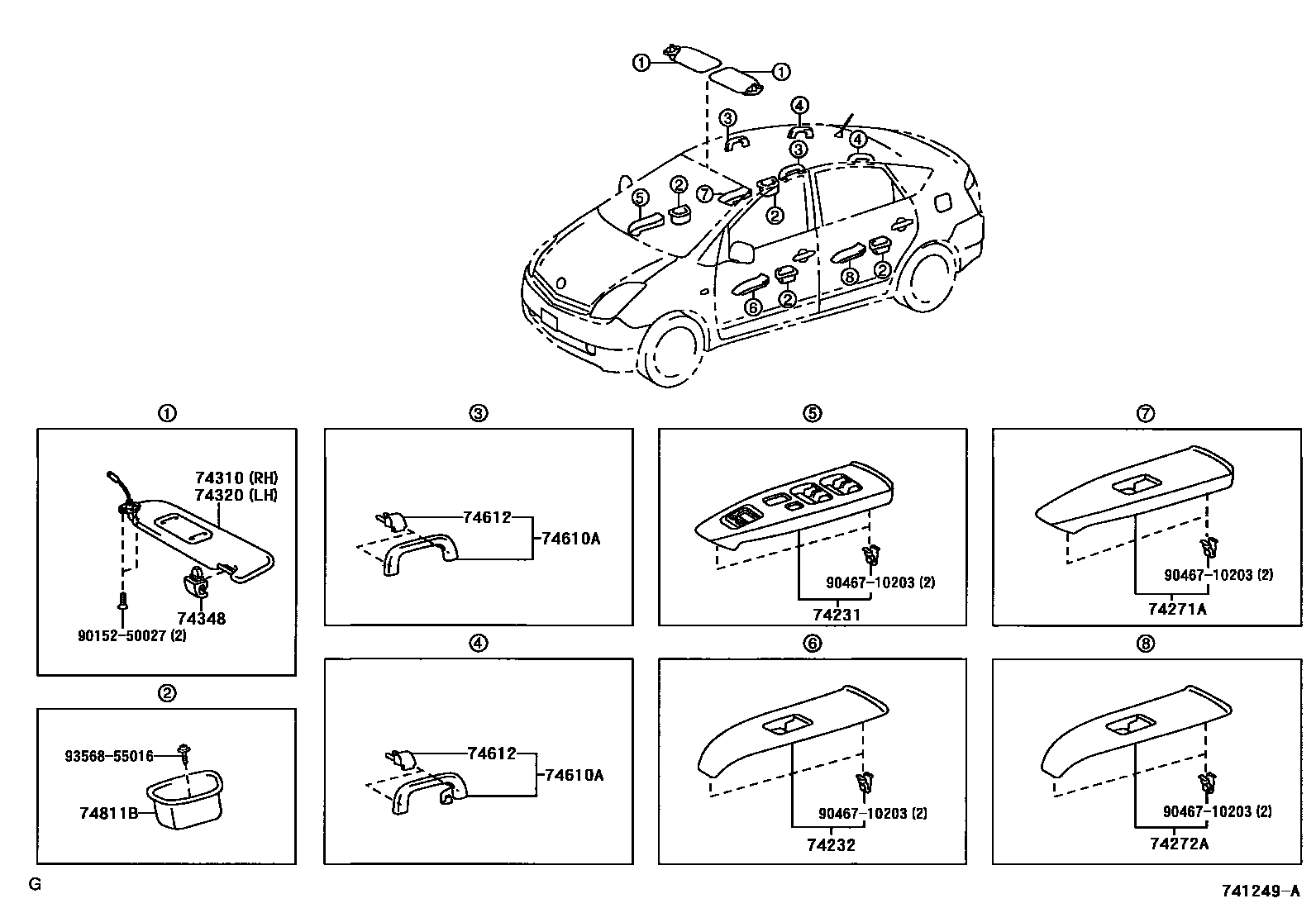

Parts diagram
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-47060i200308-200505
main74231-47061i200506-200511
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-47050i200308-200505
main74232-47051i200506-200511
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-47040i200308-200505
main74271-47041i200506-200511
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-47040i200308-200505
main74272-47041i200506-200511
74310VISOR ASSY, RH
main74310-47080-A3i200308-200408
IVORY,TRIM0#
main74310-47080-B3i200308-200408
GRAY,TRIM18,19
main74310-47081-A3i200409-200504
IVORY,TRIM0#
main74310-47081-B3i200409-200504
GRAY,TRIM18,19
main74310-47082-A3i200505-200511
IVORY,TRIM0#
main74310-47082-B3i200505-200511
GRAY,TRIM18,19
main74310-47082-E0i200511-200702
GREGE,TRIM4#
main74310-47083-B4i200702-200903
LT.GRAY,TRIM1#
main74310-47083-E1i200702-200903
GREGE,TRIM4#
main74310-47270-B0i200906-201112
LT.GRAY,TRIM1#
74320VISOR ASSY, LH
main74320-47070-A3i200308-200408
IVORY,TRIM0#
main74320-47070-B3i200308-200408
GRAY,TRIM18,19
main74320-47071-A3i200409-200504
IVORY,TRIM0#
main74320-47071-B3i200409-200504
GRAY,TRIM18,19
main74320-47072-A3i200505-200511
IVORY,TRIM0#
main74320-47072-B3i200511-200702
GRAY,TRIM1#
main74320-47072-E0i200511-200702
GREGE,TRIM4#
main74320-47073-B4i200702-200903
LT.GRAY,TRIM1#
main74320-47073-E1i200702-200903
GREGE,TRIM4#
main74320-47260-B0i200906-201112
LT.GRAY,TRIM1#
74348HOLDER, VISOR
main74348-12040-A0×2i200308-200511
IVORY,TRIM0#
main74348-12040-B0×2i200511-201112
LT.GRAY,TRIM1#
main74348-12040-E2×2i200511-200903
GREGE,TRIM4#
74610AGRIP SUB-ASSY, ASSIST
main74610-52010-A0×2i200308-200511
main74610-52010-B1×2i200308-200511
main74610-52010-E1×2i200511-200903
main74610-52020-B0×4i200907-201112
main74610-68010-A0×2i200308-200511
main74610-68010-B1×2i200511-200903
main74610-68010-E1×2i200511-200903
74612COVER, ASSIST GRIP
main74612-52030-B0×8i200907-201112
GRAY,TRIM1#
main74612-68010-A0×8i200308-200511
IVORY,TRIM0#
main74612-68010-B1×8i200906-200907
GRAY,TRIM1#
main74612-68010-E1×12i200511-200903
GREGE,TRIM4#
74811BHANDLE, DOOR PULL
main74811-12060-B3×4i200308-200511
MD.GRAY,TRIM18,19
main74811-12060-E1×4i200308-200511
MD.NEUTRAL BONE,TRIM0#
main74811-12060-E2×4i200511-200903
GREGE,TRIM4#
9015250027
main90152-50027
9046710203
main90467-10203
9356855016
main93568-55016

13 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota PRIUS

This section contains 13 genuine Toyota parts for the ARMREST & VISOR system of the Toyota PRIUS. Key components include: PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH, VISOR ASSY, RH.
