Toyota PRIUS — ARMREST & VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-47010-B0i199712-200005

main74231-47020-B0i199811-200005

main74231-47020-B0i200005

DK.GRAY,TRIM9#

main74231-47050i200201-200212

PREMIUM *(D)

main74231-47050i200208-200303

main74231-47050i200012-200112

PREMIUM 21 *(C)

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-47010-B0i199712-200005

main74232-47020-B0i199811-200005

main74232-47020-B0i200005

DK.GRAY,TRIM9#

main74232-47040i200201-200212

PREMIUM *(D)

main74232-47040i200012-200112

PREMIUM 21 *(C)

main74232-47040i200208-200303

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-47010-B0i199712-200005

main74271-47020-B0i199811-200005

main74271-47020-B0i200005

DK.GRAY,TRIM9#

main74271-47030i200012-200112

PREMIUM 21 *(C)

main74271-47030i200201-200212

PREMIUM *(D)

main74271-47030i200208-200303

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-47010-B0i199712-200005

main74272-47020-B0i199811-200005

main74272-47020-B0i200005

DK.GRAY,TRIM9#

main74272-47030i200201-200212

PREMIUM *(D)

main74272-47030i200208-200303

main74272-47030i200012-200112

PREMIUM 21 *(C)

74310VISOR ASSY, RH

main74310-47010-B1i199712-199811

LT. AMETHYST,TRIM13,19

main74310-47010-B1i199811-200005

LT. AMETHYST,TRIM1#,13,19

main74310-47020-B0i200005

LT. AMETHYST,TRIM9#

74320VISOR ASSY, LH

main74320-47010-B1i199712-199811

LT. AMETHYST,TRIM13,19

main74320-47010-B1i199811-200005

LT. AMETHYST,TRIM1#,13,19

main74320-47020-B0i200005

LT. AMETHYST,TRIM9#

74348HOLDER, VISOR

main74348-12030-B1i200005

MD.CHARCOAL,TRIM9#

main74348-12030-B4i199811-200005

LT.AMETHYST,TRIM1#,13,19

main74348-12030-B4i199712-199811

LT.AMETHYST,TRIM13,19

74610AGRIP SUB-ASSY, ASSIST

main74611-20030-B6i200005

MD.CHARCOAL,TRIM9#

main74611-20030-B7i199712-199811

LT.AMETHYST,TRIM13,19

main74611-20030-B7i199811-200005

LT.AMETHYST,TRIM1#,13,19

9015960544

main90159-60544

9046804177

main90468-04177

9353045016

main93530-45016

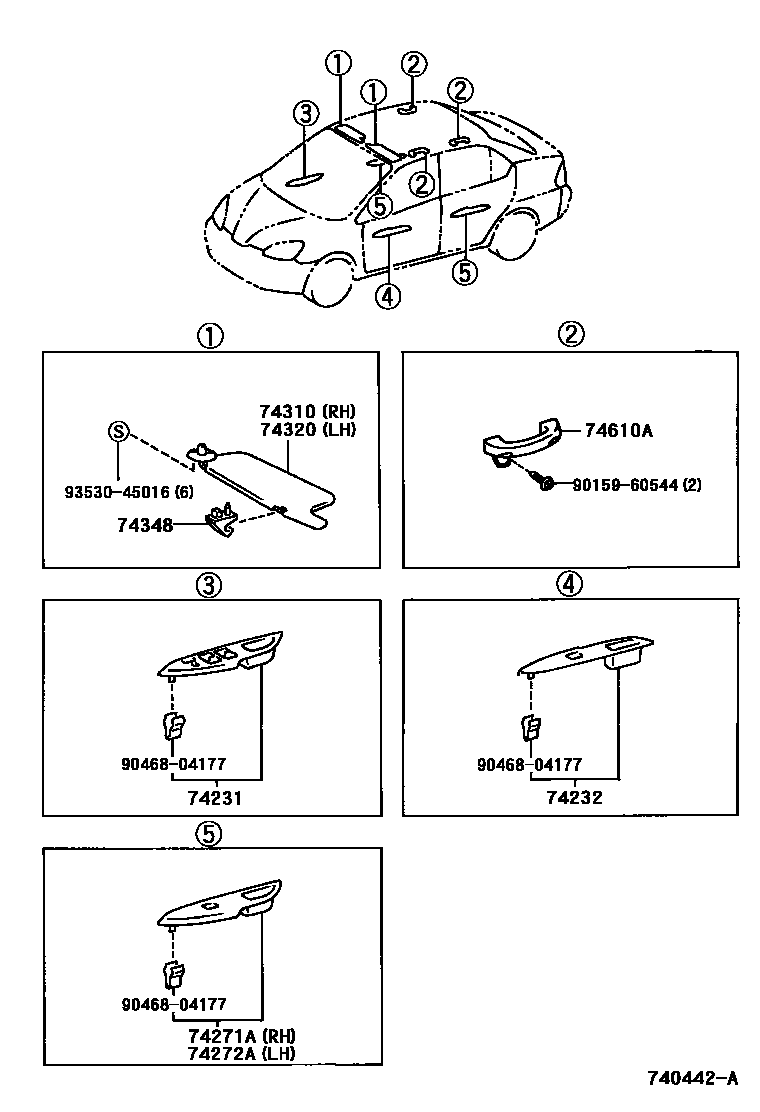

11 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota PRIUS

This section contains 11 genuine Toyota parts for the ARMREST & VISOR system of the Toyota PRIUS. Key components include: PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH, VISOR ASSY, RH.
