Toyota PRIUS — ANTENNA

82818QPROTECTOR, WIRING HARNESS, NO.1

main82817-47Z50×2i202212

86050ANTENNA ASSY, TELEVISION

main86050-48200i202212

86050EANTENNA ASSY, TELEVISION

main86050-48210i202212

86077COVER KIT, ANTENNA

main86077-47030-C0i202212

ATTITUDE BLACK MC.,040 ,089 ,1L0 ,1M2 ,218 ,2SC ,2XU ,2XV ,3U5 ,5C5 ,8Q4; ATTITUDE BLACK MC.,040 ,089 ,1L0 ,1M2 ,218 ,3U5 ,5C5 ,8Q4; ATTITUDE BLACK MC.,089 ,1M2 ,218 ,3U5 ,5C5 ,8Q4

main86077-K0010-C3supersedes 86077-47030-C0i202310

86101CORD SUB-ASSY, ANTENNA

main86101-47W20i202212

main86101-47Z00i202212

main86101-47Z20i202212

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-47W40supersedes 86101-47W50i202212

main86101-47W50i202212-202507

main86101-47X70i202212

main86101-47X80i202212-202507

main86101-47Z90i202212

main86101-4E050i202212

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-47U60i202212

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86101-47Z30i202212

86101SCORD SUB-ASSY, ANTENNA

main86101-4E060i202212

main86101-4E080i202212-202507

86101TCORD SUB-ASSY, ANTENNA

main86101-47X10supersedes 86101-47X00i202212

main86101-47V50supersedes 86101-47X20i202212-202507

main86101-47X00supersedes 86101-47X20i202212-202507

main86101-47X90supersedes 86101-47X20i202212-202507

main86101-47Y60i202212

86101WCORD SUB-ASSY, ANTENNA, NO.7

main86101-47Z60i202212

86300JANTENNA ASSY, ROOF

main86300-42250i202212

main86760-48100i202212

86769HOUSING, ROOF ANTENNA

main86769-K0010i202212

893C0ANTENNA ASSY, REMOTE PARKING

main893C0-47010i202212

main893C0-47020i202212

9011906A06

main90119-06A06

9015960498

main90159-60498

9017906274

main90179-06274

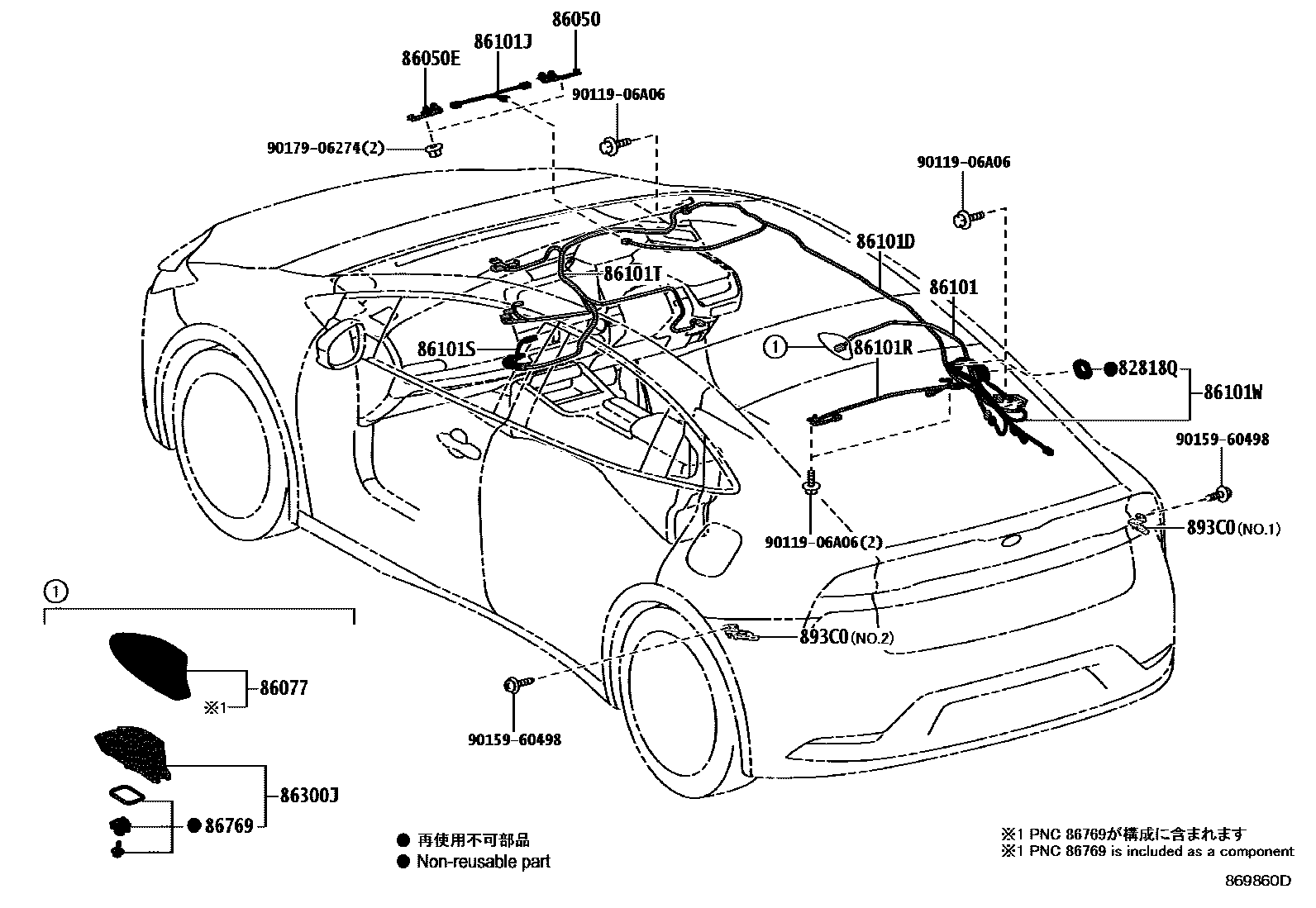

17 parts on this diagram · 1 diagram in section

ANTENNA for Toyota PRIUS

This section contains 17 genuine Toyota parts for the ANTENNA system of the Toyota PRIUS. Key components include: PROTECTOR, WIRING HARNESS, NO.1, ANTENNA ASSY, TELEVISION, COVER KIT, ANTENNA, CORD SUB-ASSY, ANTENNA.
