Toyota PRIUS — ANTENNA
82818QPROTECTOR, WIRING HARNESS, NO.1
82818RPROTECTOR, WIRING HARNESS, NO.2
8504REAR WASHER
86050ANTENNA ASSY, TELEVISION
86050EANTENNA ASSY, TELEVISION
86077COVER KIT, ANTENNA
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
GRAY ME.,1G3
BLACKISH AGEHA GF.,221
EMOTIONAL RED 2,3U5
BLUE ME.,8X7
main86077-47020-C0supersedes 86077-47010-C0iZVW50,55..S..CBU; ZVW51,55..(A,E)..CBU; ZVW51,55..PREM201511-201812
main86077-47020-E0supersedes 86077-47010-E0iZVW50,55..S..CBU; ZVW51,55..(A,E,PREM)..CBU201511-201812
main86077-47020-J0supersedes 86077-47010-J0iZVW50,55..S..CBU; ZVW51,55..(A,E,PREM)..CBU201511-201812
86101CORD SUB-ASSY, ANTENNA
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
86101QCORD SUB-ASSY, ANTENNA, NO.4
86101RCORD SUB-ASSY, ANTENNA, NO.5
86101SCORD SUB-ASSY, ANTENNA
86101TCORD SUB-ASSY, ANTENNA
86300JANTENNA ASSY, ROOF
86769HOUSING, ROOF ANTENNA
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
8271547880BRACKET,WIRING HARNESS CLAMP
main82715-47880
8614747040
main86147-47040
9011906915
main90119-06915
9011906A06
main90119-06A06
9017906274
main90179-06274

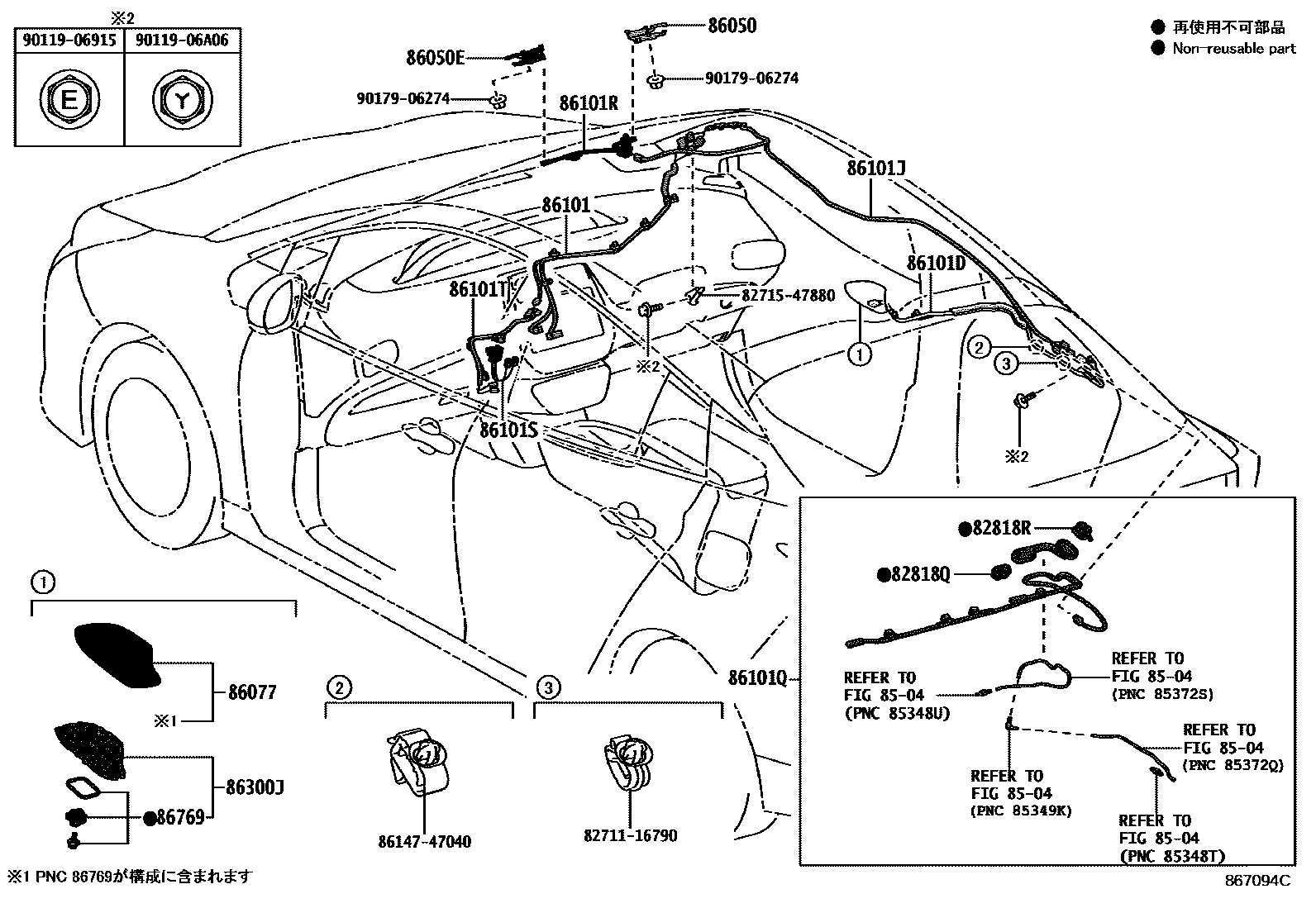

21 parts on this diagram · 3 diagrams in section
ANTENNA for Toyota PRIUS
This section contains 21 genuine Toyota parts for the ANTENNA system of the Toyota PRIUS. Key components include: PROTECTOR, WIRING HARNESS, NO.1, PROTECTOR, WIRING HARNESS, NO.2, REAR WASHER, ANTENNA ASSY, TELEVISION.
