Toyota PRIUS — ACCELERATOR LINK

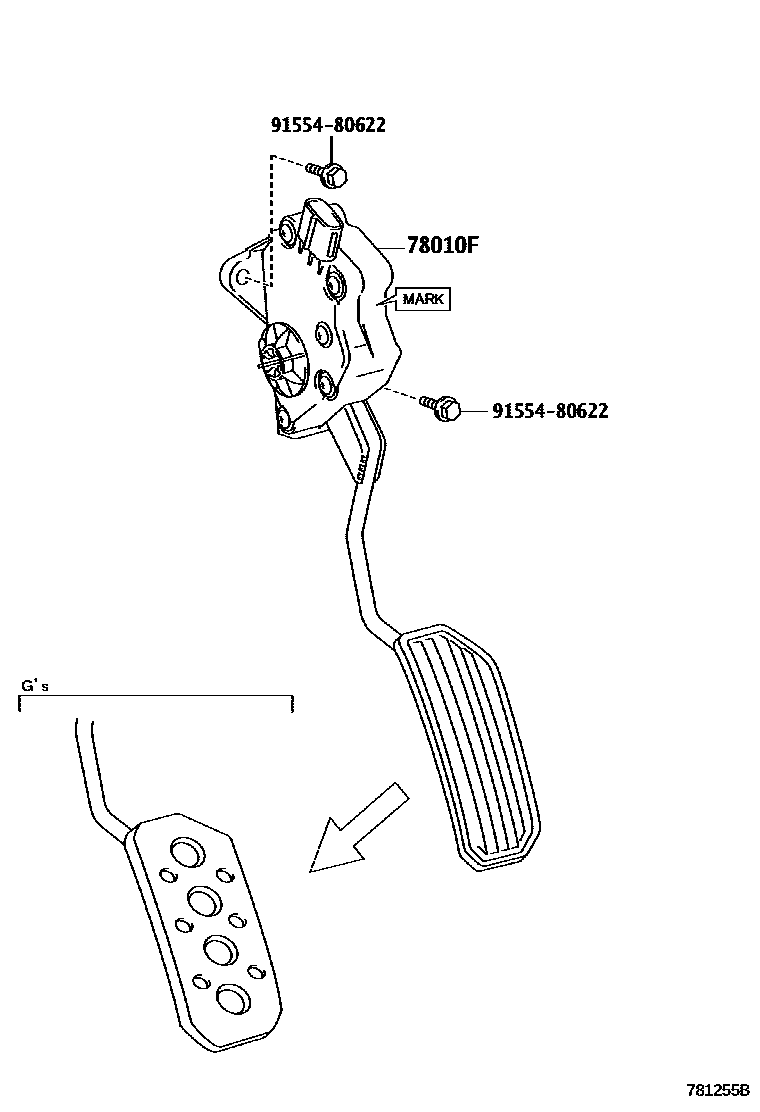

78010FPEDAL ASSY, ACCELERATOR

main78110-12040iZVW30..CBU200904-201112

sub78110-12041

main78110-12060iZVW30..CBU201112-201405

sub78110-12061

main78110-47010iZVW30..CBU201405-201407

main78110-47011iZVW30..CBU201408-201510

sub78110-47012

main78110-WY040iZVW30..S..CBU201112-201405

sub78110-WY110

main78110-WY041iZVW30..S..CBU201405-201409

main78110-WY042iZVW30..S..CBU201410-201510

sub78110-WY130

9155480622

main91554-80622

2 parts on this diagram · 1 diagram in section
