Toyota PRIUS — ABS & VSC

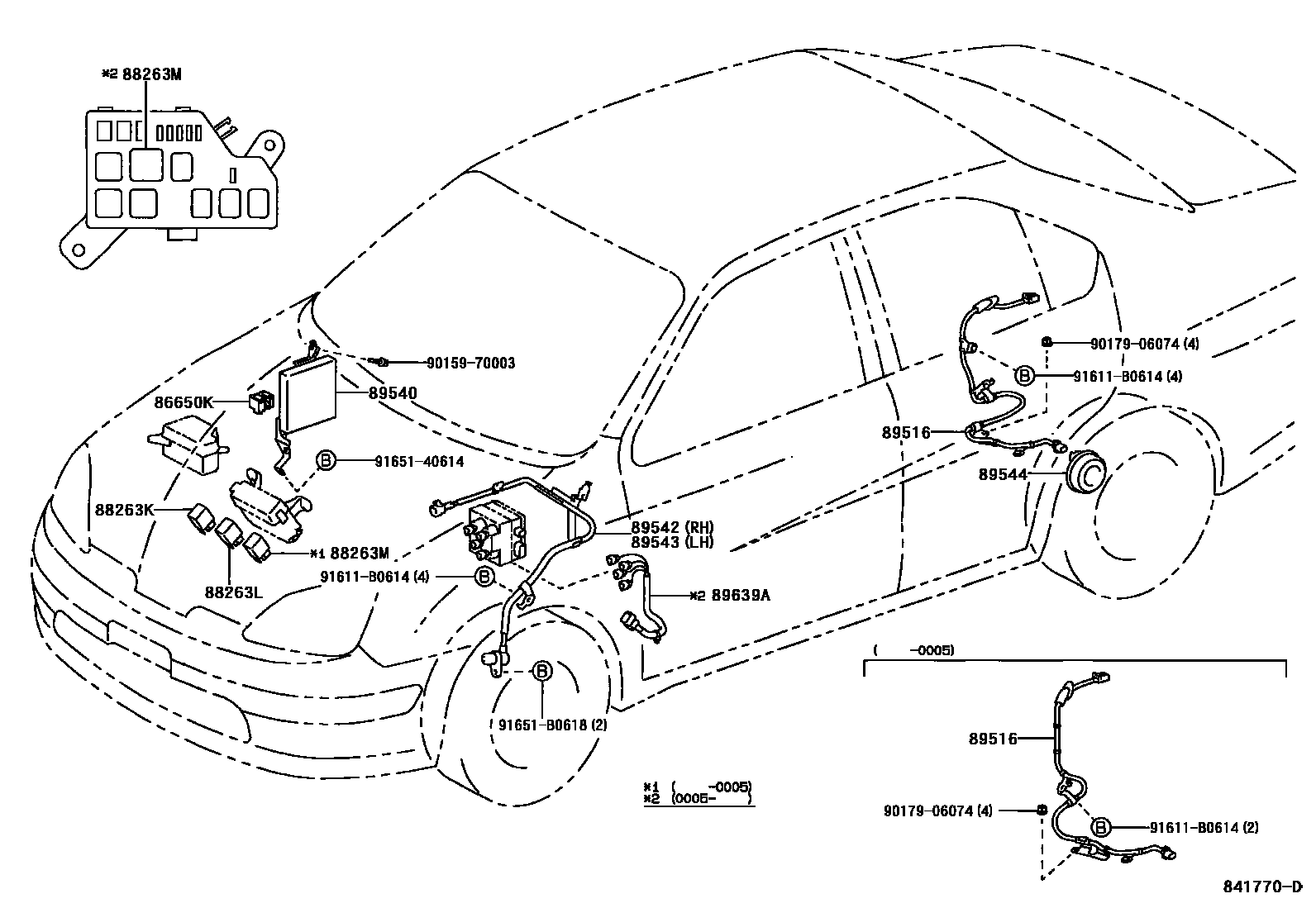

Parts diagram

86650KBUZZER ASSY, SKID CONTROL

main86650-30180i199712

88263KRELAY, HYDRO MOTOR, NO.1

main89633-24010i199712

88263LRELAY, HYDRO MOTOR, NO.2

main88263-24020i199712

88263MRELAY, ABS SOLENOID

main88263-24030i199712

89516WIRE, SKID CONTROL SENSOR

main89516-47010i199712-200005

main89516-47020i199712-200005

main89516-47030i200005

main89516-47040i200005

89540COMPUTER ASSY, SKID CONTROL

main89540-47010i199712-200004

main89540-47011i200004-200005

main89540-47020i200108

main89540-47040i200005

89542SENSOR, SPEED, FRONT RH

main89542-47010i199712

89543SENSOR, SPEED, FRONT LH

main89543-47010i199712

89544SENSOR, SKID CONTROL

main89544-47010×2i199712-200005

main89544-52020×2i200005

89639AWIRE, BRAKE CONTROL

main89639-47030i200005

9015970003

main90159-70003

9017906074

main90179-06074

91611B0614

main91611-B0614

9165140614

main91651-40614

91651B0618

main91651-B0618

15 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota PRIUS

This section contains 15 genuine Toyota parts for the ABS & VSC system of the Toyota PRIUS. Key components include: BUZZER ASSY, SKID CONTROL, RELAY, HYDRO MOTOR, NO.1, RELAY, HYDRO MOTOR, NO.2, RELAY, ABS SOLENOID, WIRE, SKID CONTROL SENSOR.
