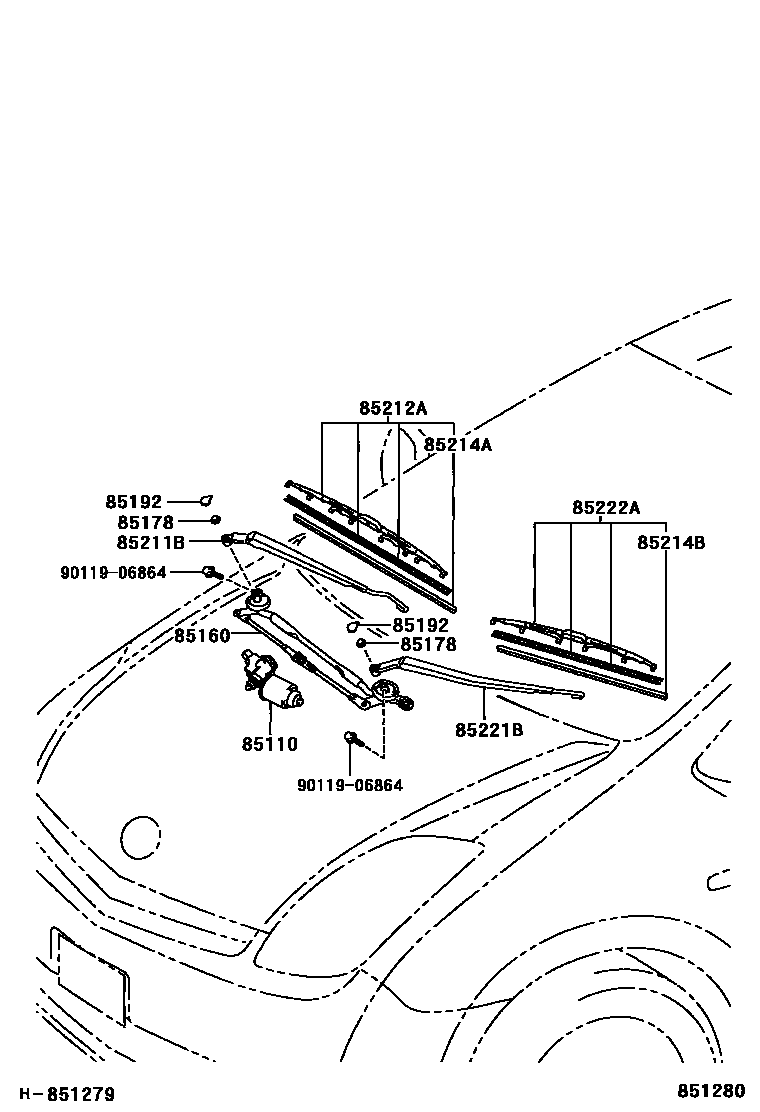

Toyota PRIUS — WINDSHIELD WIPER

0001 1 0002 1 0003 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47070iNHW20..RHD..EUR200308-200511

main85110-47080iNHW20..LHD200308-200511

main85110-47090iNHW20..ARL200308-200511

85160LINK ASSY, WINDSHIELD WIPER

main85150-47080iNHW20..RHD..EUR200308-200511

main85150-47090iNHW20..LHD200511-200903

main85150-47100iNHW20..ARL200308-200511

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223×2iNHW20..EUR200308-200511

85192COVER, WINDSHIELD WIPER ARM

main85292-13010iNHW20..EUR200308-200511

85211BARM, FRONT WIPER, RH

main85211-47060iNHW20..RHD..EUR200511-200903

main85211-47070iNHW20..LHD200308-200511

main85211-47080iNHW20..ARL200511-200903

85212ABLADE, FR WIPER, RH

main85212-13030iNHW20..LHD200308-200511

main85212-13031iNHW20..LHD200606-200903

main85212-68010iNHW20..RHD200308-200511

85214ARUBBER, WIPER, RH

main85214-44140iNHW20..RHD200308-200511

main85214-50060iNHW20..LHD200511-200606

main85214-50061iNHW20..LHD200606-200903

85214BRUBBER, WIPER, LH

main85214-44140iNHW20..LHD200511-200903

main85214-46010iNHW20..ARL200308-200511

main85214-46011iNHW20..ARL200606-200903

main85214-50060iNHW20..RHD..EUR200308-200511

main85214-50061iNHW20..RHD..EUR200608-200903

85221BARM, FRONT WIPER, LH

main85221-47030iNHW20..RHD..EUR200308-200511

main85221-47060iNHW20..LHD200511-200903

main85221-47070iNHW20..ARL200511-200903

85222ABLADE, FR WIPER, LH

main85222-13040iNHW20..RHD..EUR200308-200511

main85222-13041iNHW20..RHD..EUR200608-200903

main85222-46010iNHW20..ARL200511-200605

main85222-46011iNHW20..ARL200606-200903

main85222-47020iNHW20..LHD200308-200511

9011906864

main90119-06864

11 parts on this diagram · 3 diagrams in section
