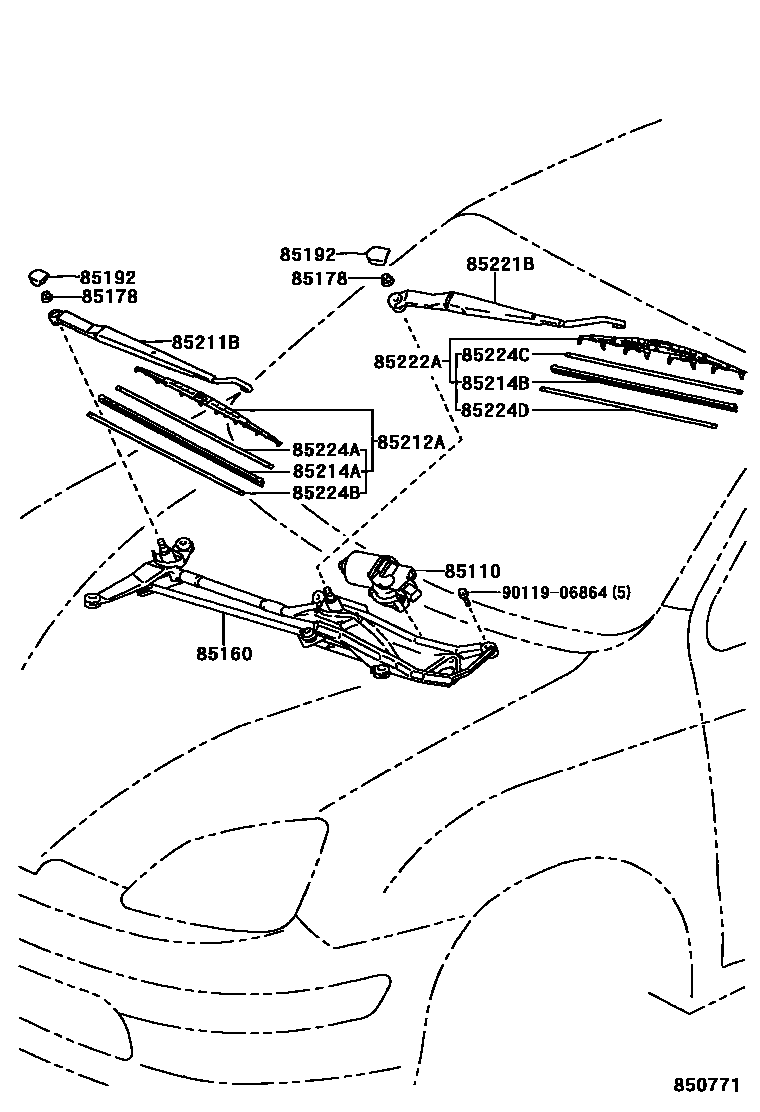

Toyota PRIUS — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47040iNHW11..LHD200005

main85110-47050iNHW11..RHD200005

85160LINK ASSY, WINDSHIELD WIPER

main85150-47040iNHW11..LHD200005

main85150-47050iNHW11..RHD200005

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iNHW11..LHD200005

PASSENGER SIDE

main90179-10223iNHW11..LHD200005

DRIVER SIDE

85192COVER, WINDSHIELD WIPER ARM

main85292-13010iNHW11..LHD200005

85211BARM, FRONT WIPER, RH

main85211-47020iNHW11..LHD200005

main85211-47030iNHW11..RHD200005

85212ABLADE, FR WIPER, RH

main85212-35070iNHW11..LHD200005

main85212-47010iNHW11..RHD200005

85214ARUBBER, WIPER, RH

main85214-12300iNHW11..LHD200106

main85214-35050iNHW11..LHD200005-200106

main85214-44040iNHW11..RHD200005-200106

main85214-50100iNHW11..RHD200106

85214BRUBBER, WIPER, LH

main85214-44020iNHW11..RHD200005-200106

main85214-44040iNHW11..LHD200005-200106

main85214-50100iNHW11..LHD200106

main85214-50130iNHW11..RHD200106

85221BARM, FRONT WIPER, LH

main85221-47010iNHW11..RHD200005

main85221-47020iNHW11..LHD200005

85222ABLADE, FR WIPER, LH

main85222-50040iNHW11..LHD200005

main85222-50070iNHW11..RHD200005

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-35060iNHW11..LHD200005

main85224-44010iNHW11..RHD200005

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-35060iNHW11..LHD200005

main85224-44010iNHW11..RHD200005

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-44020iNHW11..RHD200005

main85224-44040iNHW11..LHD200005

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-44020iNHW11..RHD200005

main85224-44040iNHW11..LHD200005

9011906864

main90119-06864

15 parts on this diagram · 2 diagrams in section
