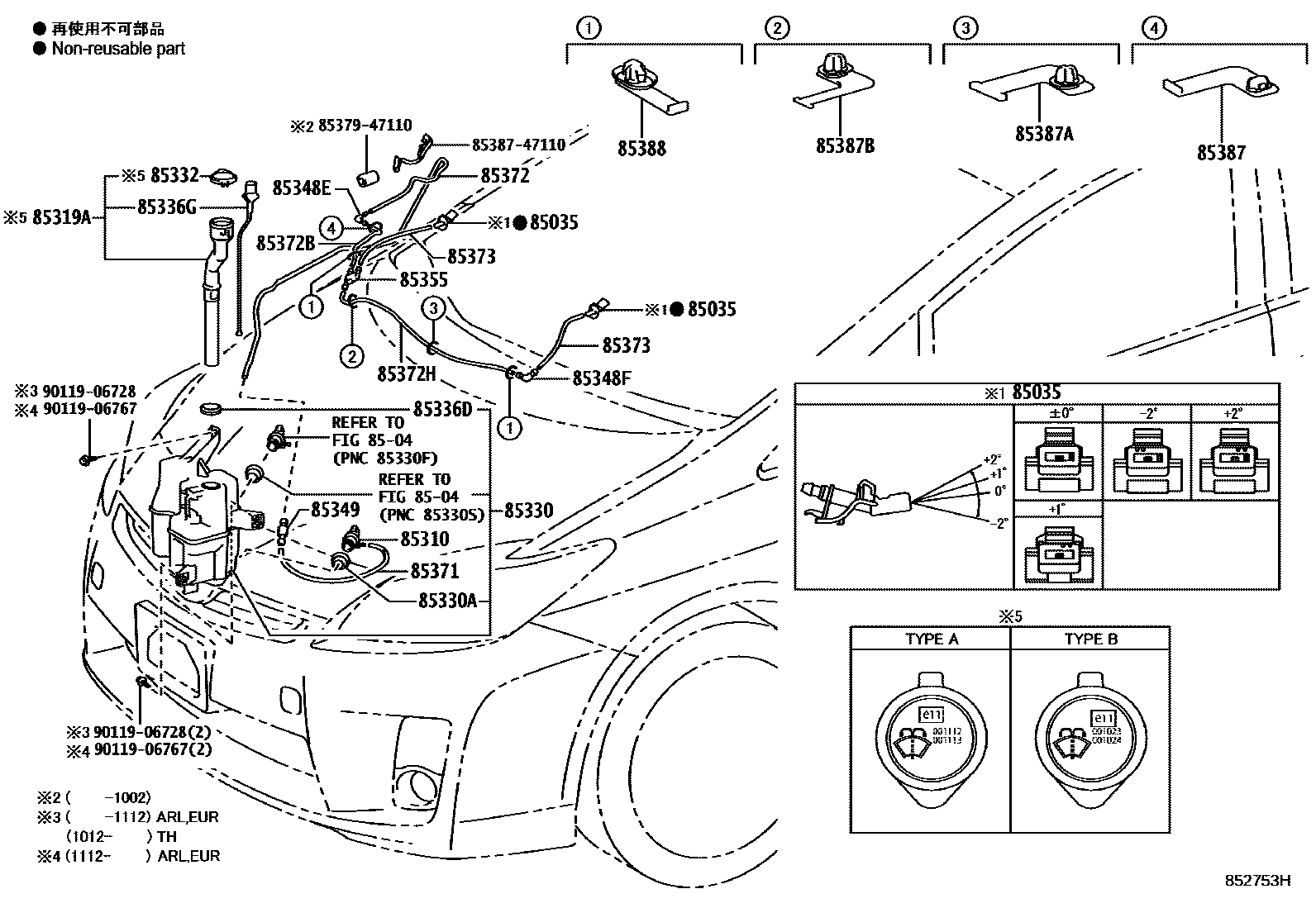

Toyota PRIUS — WINDSHIELD WASHER

0001 1 0002 1W(HEADLAMP CLEANER)

85035NOZZLE SUB-ASSY, WASHER

main85381-12320×2iZVW30..TH201204

ANGLE +1

main85381-12330×2iZVW30..TH201012-201204

ANGLE 0

main85381-12340×2iZVW30..ARL,EUR201112

ANGLE -2

main85381-12350×2iZVW30..TH201204

ANGLE +2

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47010iZVW30..TH201204

main85330-60190supersedes 85330-71020iZVW30..EUR200904-201102

HEADLAMP-LED

85319AHOSE, INLET

main85319-47120iZVW30..TH201204-201308

TYPE A(REFER ILLUST)

main85319-47121iZVW30..TH201308

TYPE B(REFER ILLUST)

85330JAR ASSY, WINDSHIELD WASHER

main85355-47020supersedes 85315-47140iZVW30..ARL,EUR200904-201112

HEADLAMP-LED

main85355-47021supersedes 85315-47140iZVW30..ARL,EUR201112

HEADLAMP-LED

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iZVW30..TH201012-201204

85332CAP, WINDSHIELD WASHER JAR

main85316-47120iZVW30..ARL,EUR201308-201511

TYPE B:REFER ILLUST.

main85386-60060iZVW30..TH201012-201204

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iZVW30..TH201012-201204

85336GGAGE, WATER LEVEL

main85318-47110iZVW30..ARL,EUR200904-201112

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200iZVW30..TH201204

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85355-20200iZVW30..ARL,EUR200904-201112

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iZVW30..ARL,EUR200904-201112

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iZVW30..ARL,EUR200904-201112

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-62091

main90099-33975

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iZVW30..ARL,EUR200904-201112

L=1450(*H,L=1380)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iZVW30..ARL,EUR200904-201112

L=1450(*H,L=300)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iZVW30..ARL,EUR200904-201112

L=1450(*H,L=830)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iZVW30..ARL,EUR200904-201112

L=1450(*H,L=250)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-2B780iZVW30..ARL,EUR200904-201112

85387ACLAMP, WASHER, NO.2

main82711-2C170iZVW30..ARL,EUR200904-201112

85387BCLAMP, WASHER, NO.3

main82711-2C160iZVW30..ARL,EUR200904-201112

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main82711-52090×2iZVW30..ARL,EUR200904-201112

8537947110JOINT

main85379-47110

8538747110CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-47110

9011906728

main90119-06728

9011906767

main90119-06767

26 parts on this diagram · 2 diagrams in section
