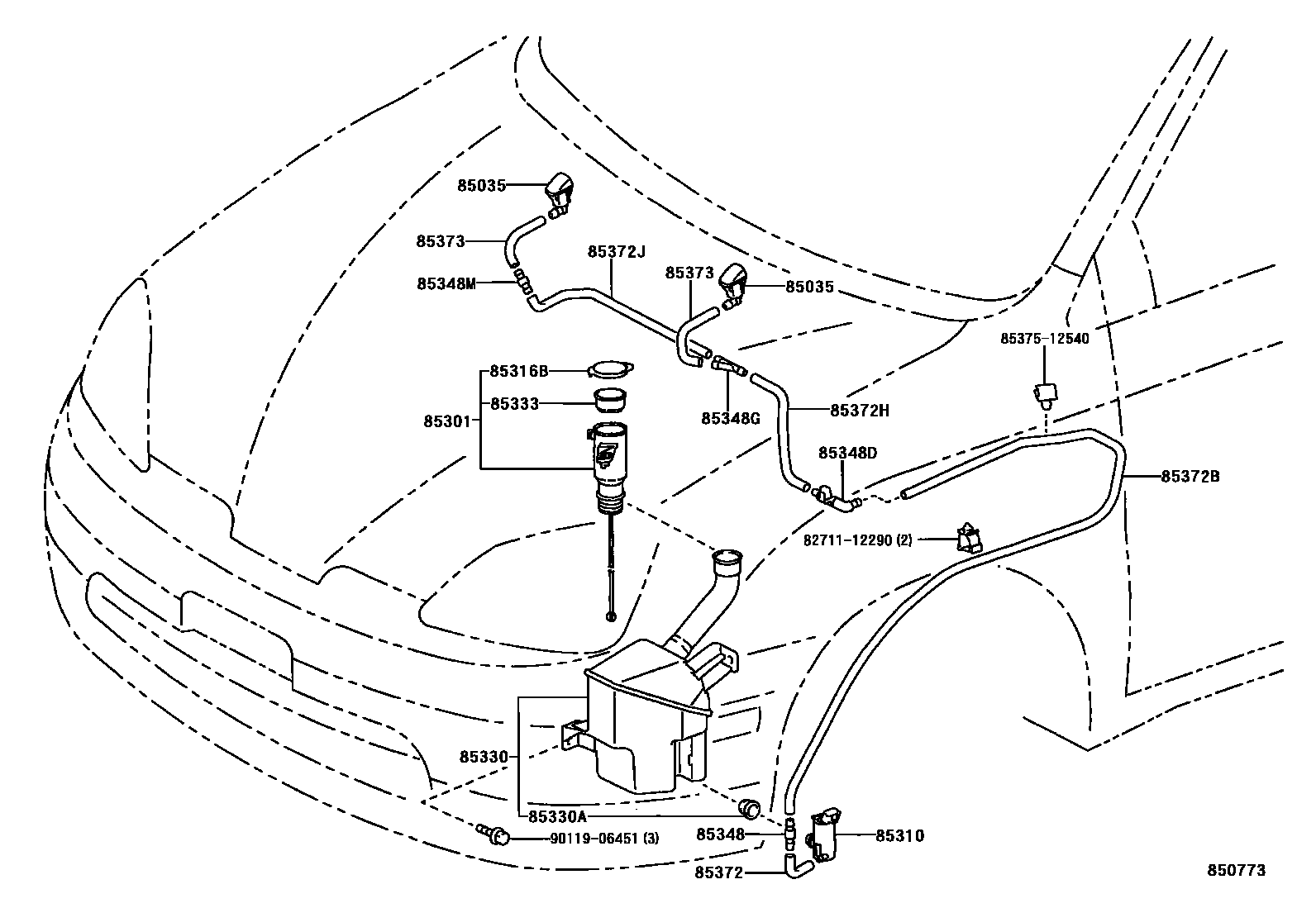

Toyota PRIUS — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-47010×2iNHW11..RHD200005

sub85381-44010

main85381-47030×2iNHW11..LHD200005

sub85381-44010

85301INLET SUB-ASSY, WASHER

main85301-47020iNHW11200005

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280iNHW11200005

85316BCAP, WASHER, INLET

main85316-42011iNHW11200005

85330JAR ASSY, WINDSHIELD WASHER

main85315-47030iNHW11200005

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iNHW11200005

85333FILTER, WINDSHIELD WASHER JAR

main85312-47010iNHW11200005

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iNHW11200005

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-16160iNHW11200005

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85378-60350iNHW11200005

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iNHW11200005

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iNHW11200005

L=1450(*H,L=60)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iNHW11200005

L=1800(*H,L=1410)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iNHW11200005

L=1800(*H,L=350)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001iNHW11200005

L=1800(*H,L=480)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iNHW11..RHD200005

L=1450(*H,L=155)

8271112290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12290

8537512540HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-12540

9011906451

main90119-06451

19 parts on this diagram · 1 diagram in section
