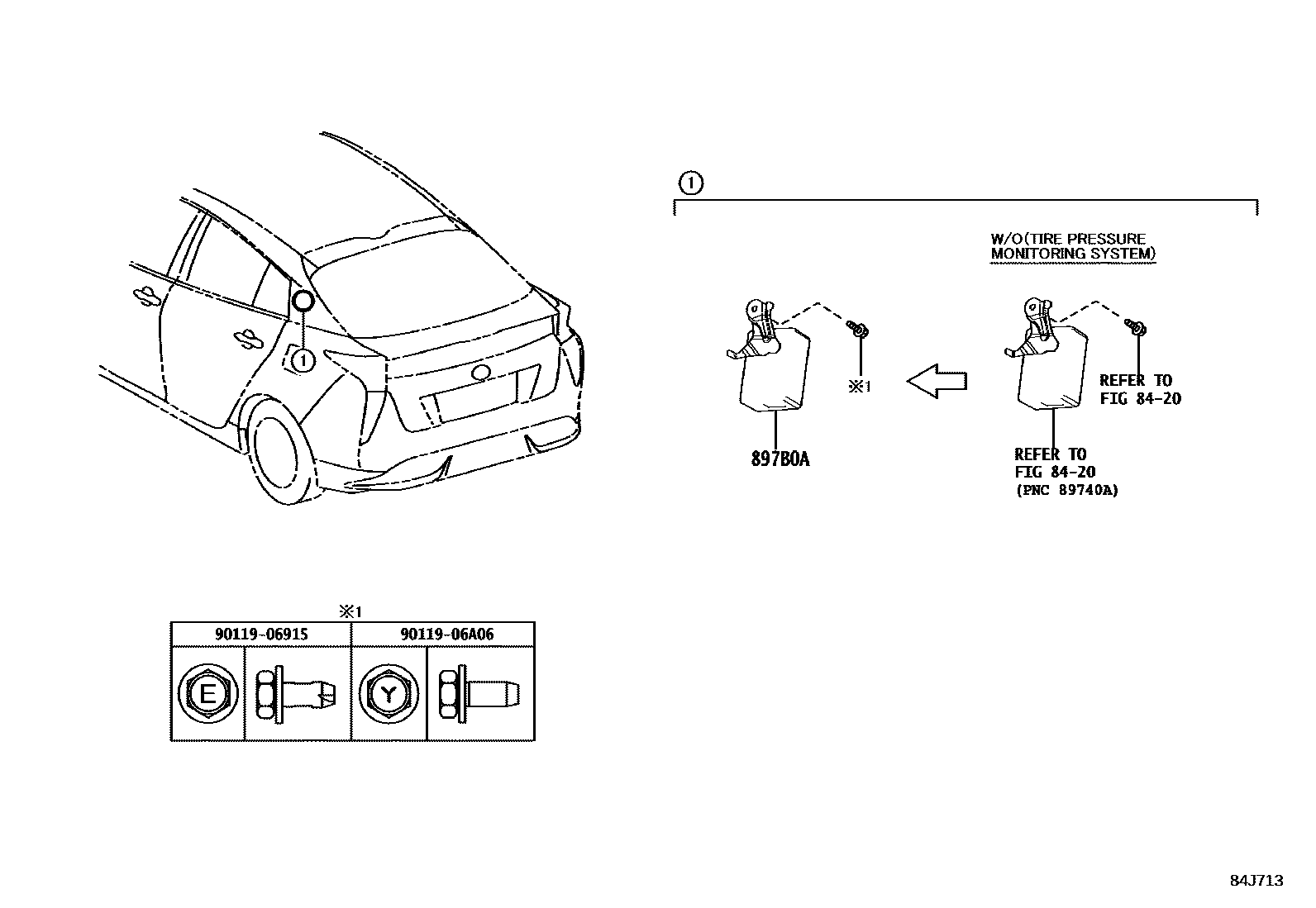

Toyota PRIUS — TIRE PRESSURE WARNING SYSTEM

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

897B0ARECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-47060supersedes 897B0-47240i201711-201812

FRONT SEAT-DRIVER(8-WAY)

main897B0-47070supersedes 897B0-47240i201711-201812

QATAR SPEC&FRONT SEAT-DRIVER(8-WAY)

main897B0-47080supersedes 897B0-47240i201511-201812

QATAR SPEC

main897B0-47250supersedes 897B0-47240i201812-202006

FRONT SEAT-DRIVER(8-WAY)

9011906915

main90119-06915

9011906A06

main90119-06A06

4 parts on this diagram · 1 diagram in section

TIRE PRESSURE WARNING SYSTEM for Toyota PRIUS

This section contains 4 genuine Toyota parts for the TIRE PRESSURE WARNING SYSTEM system of the Toyota PRIUS. Key components include: WIRELESS DOOR LOCK, RECEIVER ASSY, ELECTRICAL KEY & TPMS.
