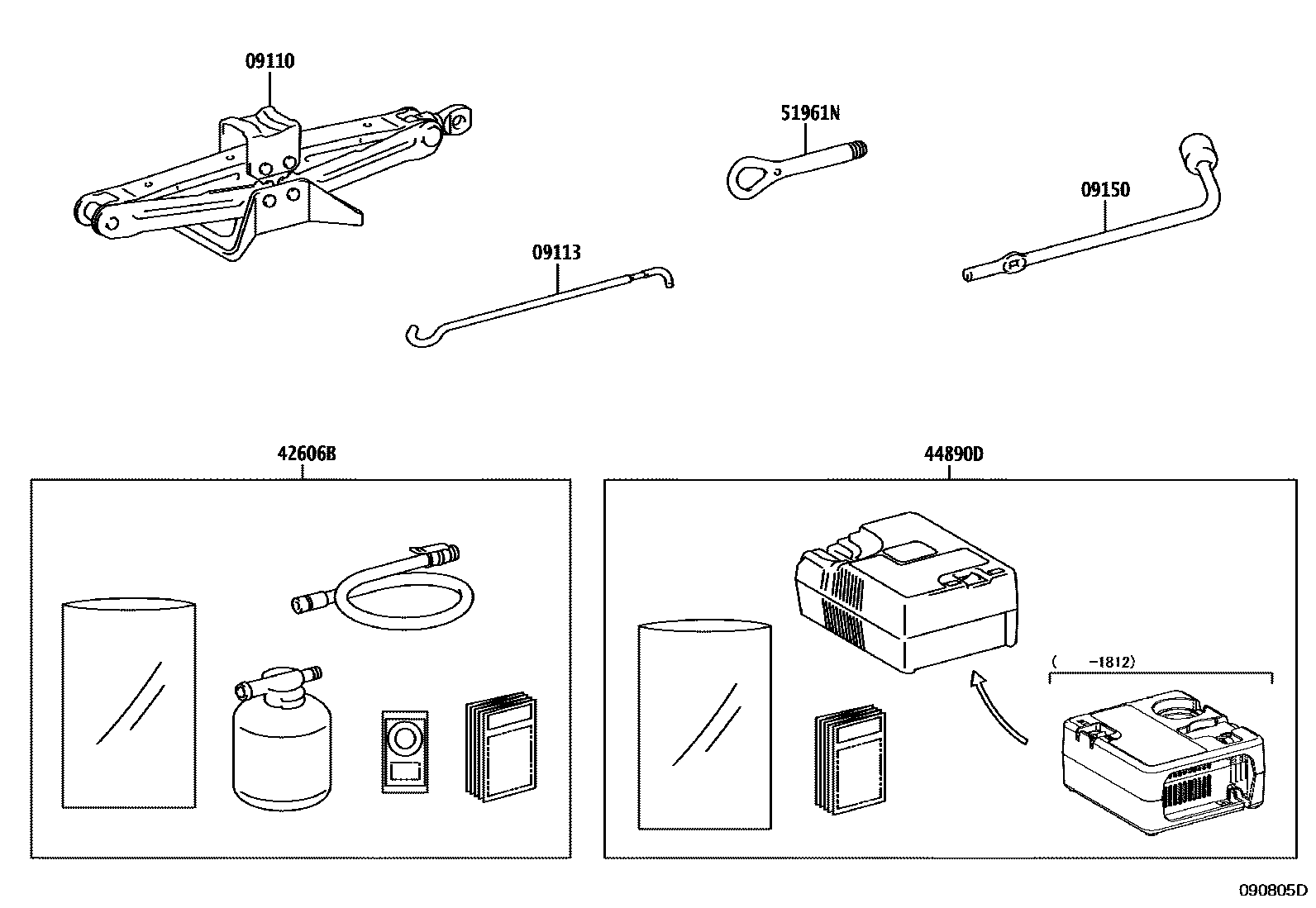

Toyota PRIUS — STANDARD TOOL

09110JACK ASSY

main09110-47110iZVW50..ARL201511-201601

main09110-47111iZVW50..ARL201812

main09111-47040iZVW50..GCC201511-201601

main09111-47050iZVW50..GCC201812-202006

sub09111-47051

09113HANDLE, JACK

main09113-42030iZVW50201511-201812

09150WRENCH, HUB NUT BOX

main09150-42010iZVW50..GCC201812-202006

42606BREPAIR KIT, TUBELESS TIRE

main42606-30011iZVW50..ARL201812

SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

sub42606-42080

main42606-47130iZVW50..ARL201511-201812

SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

44890DCOMPRESSOR ASSY, AIR

main44890-12011iZVW50202110

SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

sub44890-42050

main44890-30030iZVW50..ARL201812-202109

SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

sub44890-30031

main44890-47070iZVW50..ARL201511-201812

SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

51961NHOOK, TRANSPORT

main51960-47030iZVW50..GCC201903-202006

main51961-47010iZVW50201511-201812

6 parts on this diagram · 1 diagram in section
