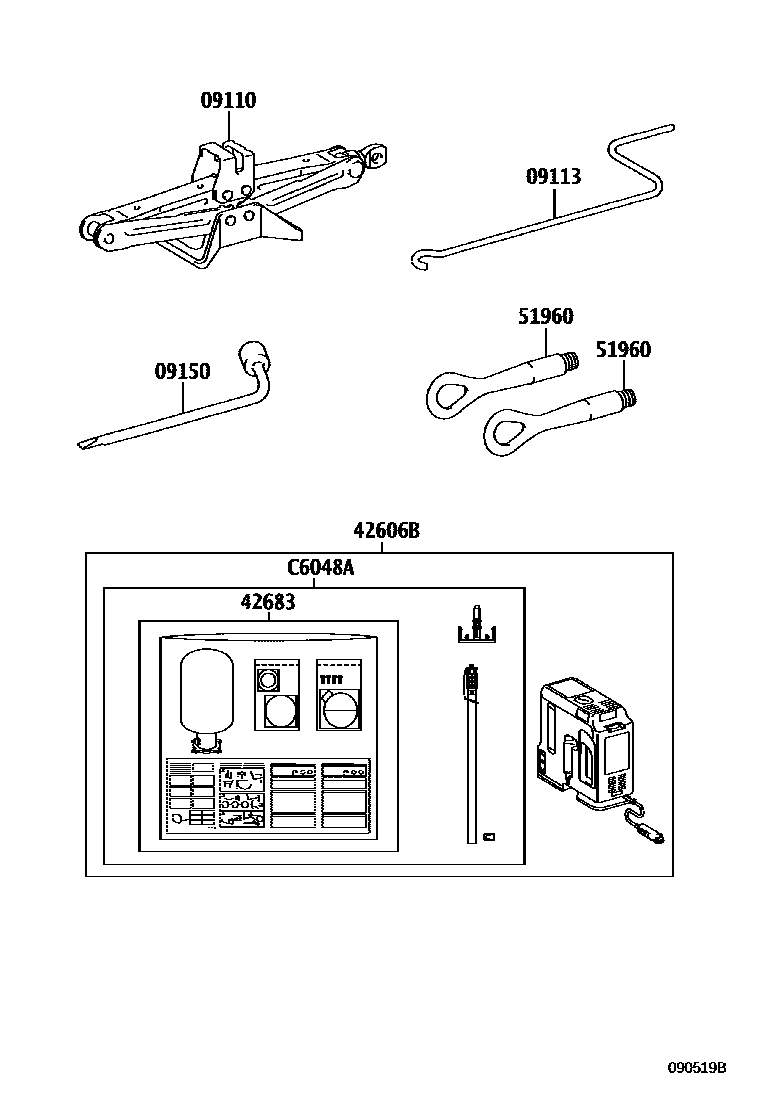

Toyota PRIUS — STANDARD TOOL

0001 1 0002 1

09110JACK ASSY

main09110-47020iZVW30..ARL200904-201009

main09110-47030iZVW30..ARL201112-201207

main09110-47050iZVW30..ARL201208

main09111-30190iZVW30..EUR201208

main09111-33030iZVW30..TH201204-201210

sub09111-76010

main09111-50051iZVW30..EUR200904-201009

sub09111-76011

09113HANDLE, JACK

main09113-52030iZVW30..ARL,EUR200904-201112

main09113-52031iZVW30..TH201112-201204

09150WRENCH, HUB NUT BOX

main09150-35070iZVW30..ARL,EUR200904-201112

main09150-76010iZVW30..ARL,EUR201304

42606BREPAIR KIT, TUBELESS TIRE

main42606-47060iZVW30..ARL,EUR201112

SPARE TIRE-WITHOUT(W(REPAIR KIT))

main42606-50020iZVW30..ARL200904-201112

MOON ROOF-WITH(SOLAR PANEL)

sub42606-50021

42683SEAL, TIRE REPAIR

main42683-50020iZVW30..ARL200904-201112

MOON ROOF-WITH(SOLAR PANEL)

sub42683-50021

51960HOOK ASSY, FRONT

main51961-50040iZVW30..TH201204-201210

main51961-50041×2iZVW30..ARL,EUR201112-201305

main51961-50042×2iZVW30..ARL,EUR201305

C6048REPAIR SET, TIRE

mainC604874043iZVW30..ARL,EUR201112

SPARE TIRE-WITHOUT(W(REPAIR KIT))

C6048ASEALANT, REPAIR TIRE

mainC604850020iZVW30..ARL200904-201112

MOON ROOF-WITH(SOLAR PANEL)

subC6048-50021

8 parts on this diagram · 2 diagrams in section
