Toyota PRIUS — SPEAKER

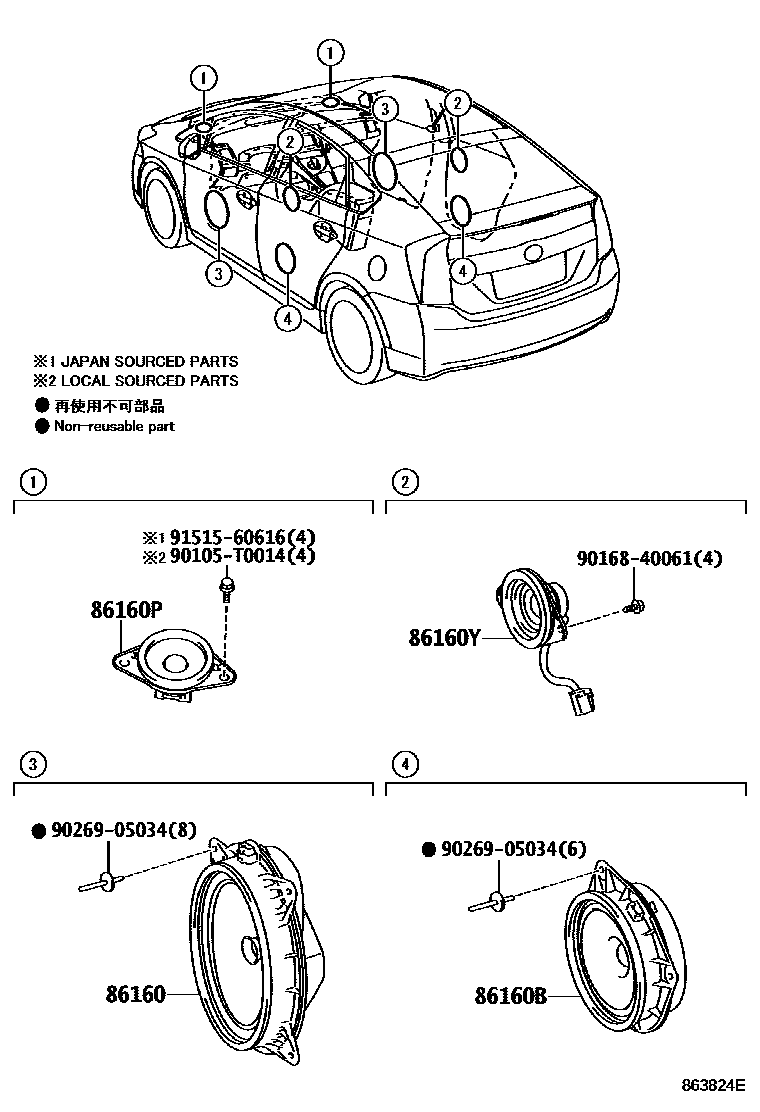

Parts diagram
86160SPEAKER ASSY, FRONT NO.1
main86160-0WV50i201112-201508
AUDIO-AVN(FOR S.AFRICA) *BT USB JBL 8SPEAKER
main86160-0WV50i201112-201508
AUDIO-*DA *BT USB JBL 8SPEAKER
main86160-0WV50i201112-201508
AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER
main86160-0WV50i201112-201508
AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER
main86160-0WV50i201112-201508
AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER
main86160-47110i200904-201112
AUDIO-AV,BLUETOOTH,8SPEAKER
main86160-47110i200904-201112
AUDIO-CD-CHANGER,8SPEAKER
main86160-47110i200904-201112
AUDIO-CD,BLUETOOTH,8SPEAKER
main86160-47110i200904-201112
AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER
main86160-47110i200904-201112
AUDIO-AVN,BLUETOOTH,8SPEAKER
main86160-47110i201012-201204
main86160-47190i201509
AUDIO-*DA *BT USB JBL 8SPEAKER
main86160-47190i201509
AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER
main86160-47190i201509
AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER
main86160-47190i201509
AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER
main86160-47190i201509
AUDIO-AVN(FOR S.AFRICA) *BT USB JBL 8SPEAKER
main86160-58240i200904-201112
86160BSPEAKER ASSY, REAR
main86160-0K220i201204
main86160-0WV60i201112-201508
AUDIO-AVN(FOR S.AFRICA) *BT USB JBL 8SPEAKER
main86160-0WV60i201112-201508
AUDIO-*DA *BT USB JBL 8SPEAKER
main86160-0WV60i201112-201508
AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER
main86160-0WV60i201112-201508
AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER
main86160-0WV60i201112-201508
AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER
main86160-22A10i200904-201204
main86160-47210i201509
AUDIO-*DA *BT USB JBL 8SPEAKER
main86160-47210i201509
AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER
main86160-47210i201509
AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER
main86160-47210i201509
AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER
main86160-47210i201509
AUDIO-AVN(FOR S.AFRICA) *BT USB JBL 8SPEAKER
main86160-52300i201107-201112
86160PSPEAKER ASSY, FRONT NO.2
main86160-0WV70i201112-201508
AUDIO-*DA *BT USB JBL 8SPEAKER
main86160-0WV70i201112-201508
AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER
main86160-0WV70i201112-201508
AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER
main86160-0WV70i201112-201508
AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER
main86160-0WV70i201112-201508
AUDIO-AVN(FOR S.AFRICA) *BT USB JBL 8SPEAKER
main86160-47070i200904-201005
main86160-47100i200904-201112
AUDIO-AV,BLUETOOTH,8SPEAKER
main86160-47100i200904-201112
AUDIO-AVN,BLUETOOTH,8SPEAKER
main86160-47100i200904-201112
AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER
main86160-47100i200904-201112
AUDIO-CD,BLUETOOTH,8SPEAKER
main86160-47100i200904-201112
AUDIO-CD-CHANGER,8SPEAKER
main86160-47100i201012-201204
main86160-47200i201509
AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER
main86160-47200i201509
AUDIO-AVN(FOR S.AFRICA) *BT USB JBL 8SPEAKER
main86160-47200i201509
AUDIO-*DA *BT USB JBL 8SPEAKER
main86160-47200i201509
AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER
main86160-47200i201509
AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER
main86160-68070i201005-201112
86160YSPEAKER ASSY, REAR NO.2
main86160-0WX10i201112-201509
AUDIO-*DA *BT USB JBL 8SPEAKER
main86160-0WX10i201112-201509
AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER
main86160-0WX10i201112-201509
AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER
main86160-0WX10i201112-201509
AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER
main86160-0WX10i201112-201509
AUDIO-AVN(FOR S.AFRICA) *BT USB JBL 8SPEAKER
main86160-47130i200904-201112
AUDIO-CD,BLUETOOTH,8SPEAKER
main86160-47130i200904-201112
AUDIO-AV,BLUETOOTH,8SPEAKER
main86160-47130i200904-201112
AUDIO-CD-CHANGER,8SPEAKER
main86160-47130i200904-201112
AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER
main86160-47130i200904-201112
AUDIO-AVN,BLUETOOTH,8SPEAKER
main86160-47130i201012-201510
main86160-47230i201510-201511
AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER
main86160-47230i201510-201511
AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER
main86160-47230i201510-201511
AUDIO-*DA *BT USB JBL 8SPEAKER
main86160-47230i201510-201511
AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER
main86160-47230i201510-201511
AUDIO-AVN(FOR S.AFRICA) *BT USB JBL 8SPEAKER
90105T0014
main90105-T0014
9016840061
main90168-40061
9026905034
main90269-05034
9151560616
main91515-60616

8 parts on this diagram · 1 diagram in section

SPEAKER for Toyota PRIUS

This section contains 8 genuine Toyota parts for the SPEAKER system of the Toyota PRIUS. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2, SPEAKER ASSY, REAR NO.2.
