Toyota PRIUS — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-2B560×2iNHW20200308-200511

main86160-2B580×2iNHW20200511-200903

main86160-0W880×2iNHW20..ARL200308-200511

W(SMART ENTRY)

main86160-AC280×2iNHW20..ARL200511-200903

AUDIO-05AM/FM+CD-CHANGER JBL RDS 9 SPEAKER

86160BSPEAKER ASSY, REAR

main86160-2B560×2iNHW20200308-200511

main86160-2B580×2iNHW20200511-200903

main86160-0W620×2iNHW20..ARL200308-200511

W(SMART ENTRY)

main86160-AC280×2iNHW20..ARL200511-200903

AUDIO-05AM/FM+CD-CHANGER JBL RDS 9 SPEAKER

86160DSPEAKER ASSY, STEREO COMPONENT, FRONT

main86160-0W890iNHW20..ARL200308-200511

W(SMART ENTRY)

main86160-0WF80iNHW20..ARL200511-200903

WITH(VSC)&EMV(W/NAVIGATION SYSTEM)-WITH

86160PSPEAKER ASSY, FRONT NO.2

main86160-68010×2iNHW20200511-200903

main86160-0WB40×2iNHW20..ARL200308-200511

W(SMART ENTRY)

86160YSPEAKER ASSY, REAR NO.2

main86160-0WB50×2iNHW20..ARL200308-200511

W(SMART ENTRY)

9026905034

main90269-05034

9356855012

main93568-55012

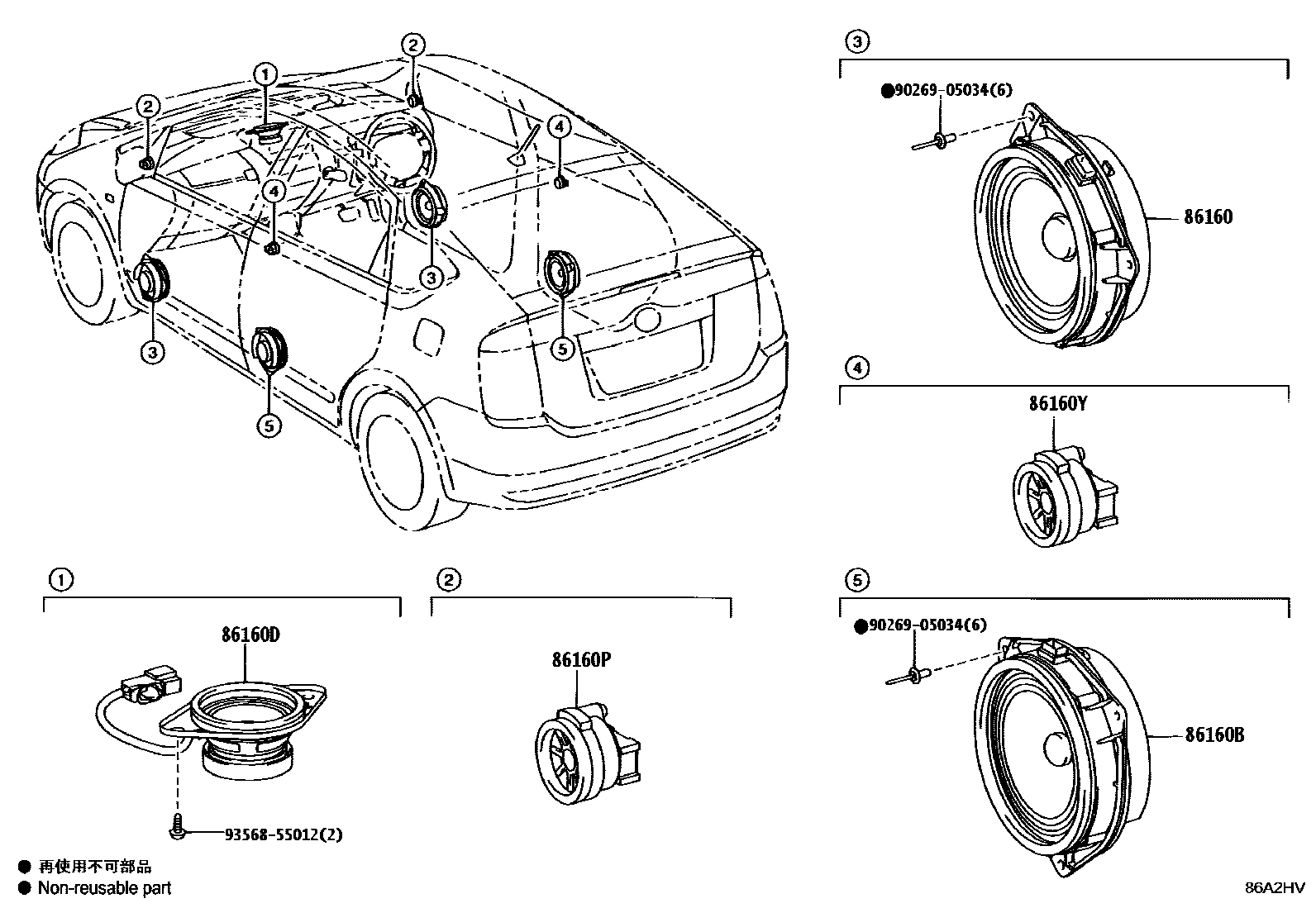

7 parts on this diagram · 1 diagram in section
