Toyota PRIUS — QUARTER WINDOW

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-47020i200904-200906

main62110-47021i201112

main62110-47050i201012-201204

main62110-47030i200904-200907

INDONESIA SPEC

main62110-47070i201207

BRAZIL SPEC

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-47020i200904-200906

main62120-47021i200907-201112

main62120-47050i201012-201204

main62120-47030i200904-200907

INDONESIA SPEC

main62120-47070i201207

BRAZIL SPEC

62710AWINDOW ASSY, QUARTER, RH

main62710-47030i200904-200906

*UVCTT,T=3.1,GREEN

main62710-47031i200907-201112

*UVCTT,T=3.1,GREEN

main62710-47100i201012-201204

*UVCTT,T=3.1,GREEN

main62710-47130i201112

*UVCTT,T=3.1,GREEN

main62710-47060i200904-200907

*TT,T=3.1,COOL GREEN,INDONESIA SPEC

main62710-47140i201207

*UVCTT,T=3.1,GREEN,BRAZIL SPEC&AUDIO-*DA *BT USB JBL 8SPEAKER

62720AWINDOW ASSY, QUARTER, LH

main62720-47030i200904-200906

*UVCTT,T=3.1,GREEN

main62720-47031i200907-201112

*UVCTT,T=3.1,GREEN

main62720-47100i201012-201204

*UVCTT,T=3.1,GREEN

main62720-47060i200904-200907

*TT,T=3.1,COOL GREEN,INDONESIA SPEC

main62720-47130i201207

*UVCTT,T=3.1,GREEN,BRAZIL SPEC&AUDIO-*DA *BT USB JBL 8SPEAKER

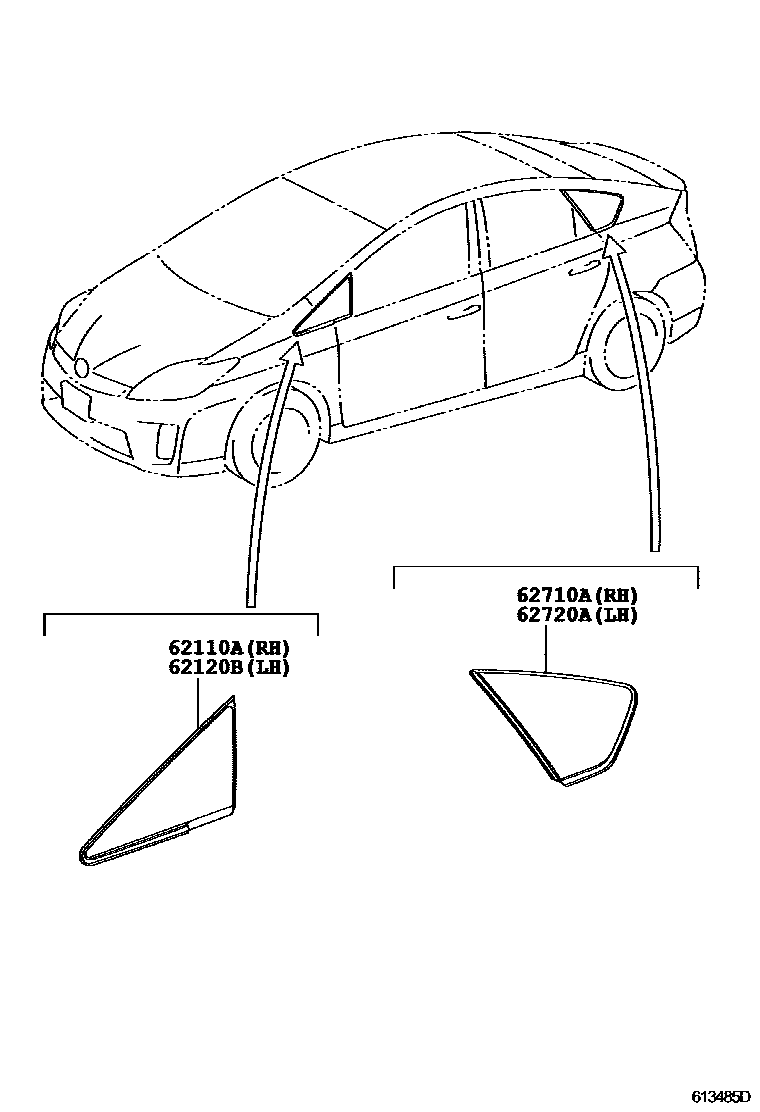

4 parts on this diagram · 1 diagram in section

QUARTER WINDOW for Toyota PRIUS

This section contains 4 genuine Toyota parts for the QUARTER WINDOW system of the Toyota PRIUS. Key components include: WINDOW ASSY, FRONT SIDE FIX, RH, WINDOW ASSY, FRONT SIDE FIX, LH, WINDOW ASSY, QUARTER, RH, WINDOW ASSY, QUARTER, LH.
