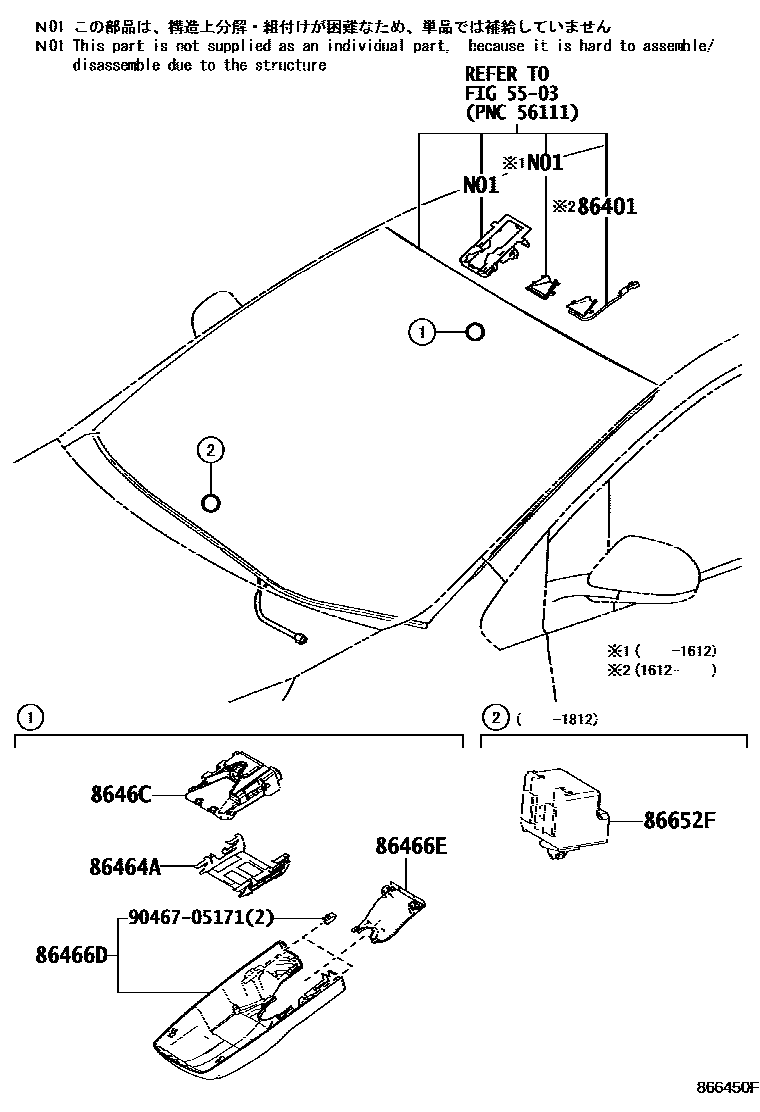

Toyota PRIUS — PRE-COLLISION SYSTEM

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-47010iZVW50..ARL201812-202007

HEAD UP DISPLAY-WITH

main86401-47040iZVW50202007

HEAD UP DISPLAY-WITH

86464ALATCH, FORWARD RECOGNITION

main86464-26010iZVW50202007

HEAD UP DISPLAY-WITH

main86464-48011iZVW50..ARL201812-202007

HEAD UP DISPLAY-WITH

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-47020iZVW50..ARL201511-201612

HEAD UP DISPLAY-WITH

main86466-47021iZVW50..ARL201612-201812

HEAD UP DISPLAY-WITH

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-47030iZVW50..ARL201812

HEAD UP DISPLAY-WITH

8646CCAMERA, FORWARD RECOGNITION

main8646C-47010iZVW50..ARL201511-201608

HEAD UP DISPLAY-WITH

main8646C-47030iZVW50..ARL201608-201612

HEAD UP DISPLAY-WITH

main8646C-47031iZVW50..ARL201612-201711

HEAD UP DISPLAY-WITH

main8646C-47032iZVW50..ARL201711-201812

HEAD UP DISPLAY-WITH

main8646C-47033iZVW50..ARL201812-202007

HEAD UP DISPLAY-WITH

main8646C-47060iZVW50202007-202106

HEAD UP DISPLAY-WITH

main8646C-47070iZVW50202106-202111

HEAD UP DISPLAY-WITH

main8646C-47120iZVW50202111

HEAD UP DISPLAY-WITH

86652FBUZZER, SKID CONTROL

main86652-50010iZVW50..ARL201511-201812

HEAD UP DISPLAY-WITH

9046705171

main90467-05171

8 parts on this diagram · 1 diagram in section
