EPC Data

Toyota PRIUS — MIRROR

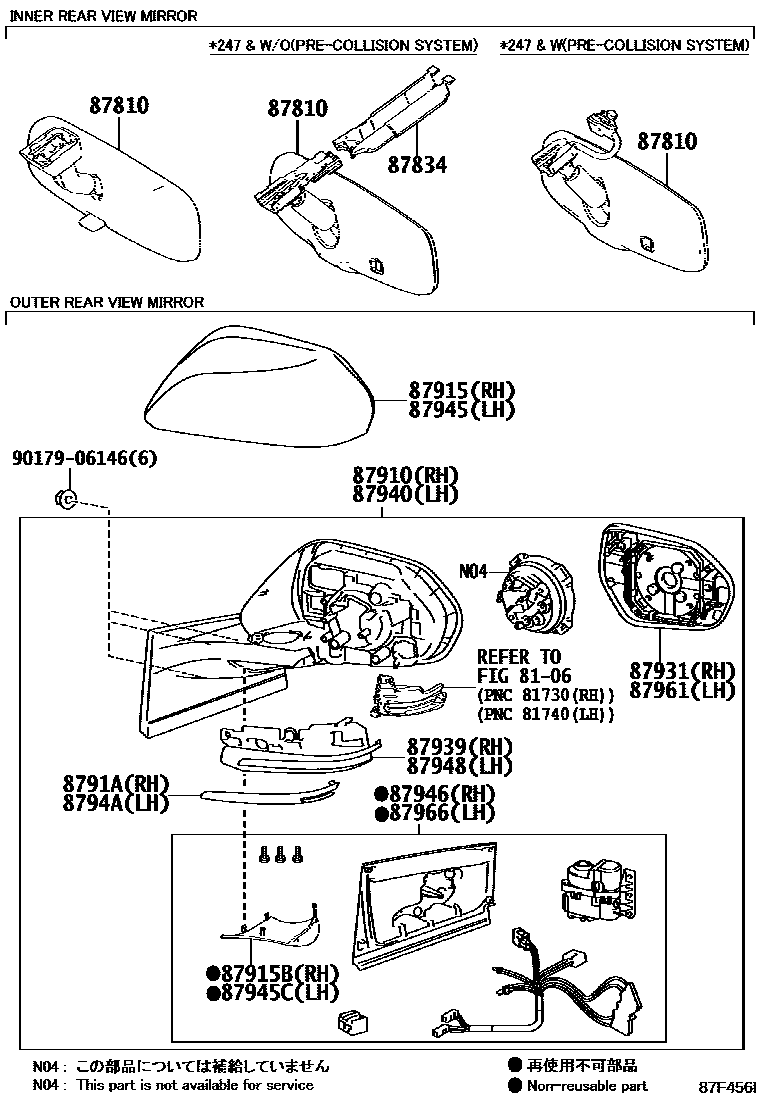

Parts diagram
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
→ Go to FIG 81-06
87810MIRROR ASSY, INNER REAR VIEW
main87810-52041i201511-201812
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-47010
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-47450i201511-201812
PLATED
main87910-47480i201511-201812
PLATED
main87910-47480i201812-202006
87915COVER, OUTER MIRROR, RH
main87915-33030-A0i202007
SUPER WHITE 2,040
main87915-33030-A1i202007
PLATINUM WHITE PEARL MC.,089
main87915-33030-B0i202007
SILVER ME.,1F7
main87915-33030-B2i202007
GRAY ME.,1G3
main87915-33030-C0i202007
ATTITUDE BLACK MC.,218
main87915-33030-C1i202106
BLACKISH AGEHA GF.,221
main87915-33030-D1i202007
EMOTIONAL RED 2,3U5
main87915-33030-J1i202007
BLUE ME.,8X7
main87915-47070-A0i201511-202007
SUPER WHITE 2,040
main87915-47070-A1i201511-202007
WHITE PEARL CS.,070
main87915-47070-B0i201511-202007
SILVER ME.,1F7
main87915-47070-B1i201511-202007
GRAY ME.,1G3
main87915-47070-C0i201511-202007
ATTITUDE BLACK MC.,218
main87915-47070-D0i201511-201812
EMOTIONAL RED,3T7
main87915-47070-D3i201812-202007
EMOTIONAL RED 2,3U5
main87915-47070-E0i201711-201812
DECONTENT PACKAGE,STEEL BLONDE,4X1
main87915-47070-E0i201711-201812
STEEL BLONDE,4X1
main87915-47070-J0i201511-201812
DK.BLUE M.M.,8W7
main87915-47070-J4i201812-202007
BLUE ME.,8X7
87915BCOVER, OUTER MIRROR, LOWER RH
main87939-47370i201511-201812
main87939-47390i201511-202006
8791ACOVER, OUTER MIRROR, RH NO.2
main8791B-47360i201511-202211
PLATED
87931OUTER MIRROR, RH
main87931-47450i201511-201812
main87931-47480i201511-202006
87939COVER, OUTER MIRROR HOLE, RH
main87939-47360i201511-201812
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-47440i201511-201812
PLATED
main87940-47470i201812-202006
main87940-47470i201511-201812
PLATED
87945COVER, OUTER MIRROR, LH
main87945-33030-A0i202007
SUPER WHITE 2,040
main87945-33030-A1i202007
PLATINUM WHITE PEARL MC.,089
main87945-33030-B0i202007
SILVER ME.,1F7
main87945-33030-B2i202007
GRAY ME.,1G3
main87945-33030-C0i202007
ATTITUDE BLACK MC.,218
main87945-33030-C1i202106
BLACKISH AGEHA GF.,221
main87945-33030-D1i202007
EMOTIONAL RED 2,3U5
main87945-33030-J1i202007
BLUE ME.,8X7
main87945-47060-A0i201511-202007
SUPER WHITE 2,040
main87945-47060-A1i201511-202007
WHITE PEARL CS.,070
main87945-47060-B0i201511-202007
SILVER ME.,1F7
main87945-47060-B1i201511-202007
GRAY ME.,1G3
main87945-47060-C0i201511-202007
ATTITUDE BLACK MC.,218
main87945-47060-D0i201511-201812
EMOTIONAL RED,3T7
main87945-47060-D3i201812-202007
EMOTIONAL RED 2,3U5
main87945-47060-E0i201711-201812
STEEL BLONDE,4X1
main87945-47060-E0i201711-201812
DECONTENT PACKAGE,STEEL BLONDE,4X1
main87945-47060-J0i201511-201812
DK.BLUE M.M.,8W7
main87945-47060-J5i201812-202007
BLUE ME.,8X7
87945CCOVER, OUTER MIRROR, LOWER LH
main87948-47360i201511-201812
main87948-47380i201511-202006
87946RETRACTOR, OUTER MIRROR, RH
main87946-47370i201511-201812
main87946-47400i201511-202006
87948COVER, OUTER MIRROR HOLE, LH
main87948-47250i201511-201812
8794ACOVER, OUTER MIRROR, LH NO.2
main8794B-47250i201511-202211
PLATED
87961MIRROR OUTER, LH
main87961-47440i201511-201812
main87961-47470i201511-202006
87966RETRACTOR, OUTER MIRROR, LH
main87966-47360i201511-201812
main87966-47390i201511-202006
9017906146
main90179-06146

18 parts on this diagram · 1 diagram in section

MIRROR for Toyota PRIUS

This section contains 18 genuine Toyota parts for the MIRROR system of the Toyota PRIUS. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
